Description

Price

1

PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)

24700-KAF-670

Unavailable

2

PEDAL, GEARSHIFT (SOURCE: VINTAGE PARTS INC.)

24705-KAF-670

Unavailable

3

RUBBER, DUST SEAL

24706-MK3-770

$4.48

4

ARM, CHANGE (NOT AVAILABLE)

24710-KAF-670

Unavailable

5

COVER, DUST

24724-422-000

$6.68

6

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

7

SWITCH ASSY., RR. STOP (NOT AVAILABLE)

35350-KAF-000

Unavailable

8

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-KAF-000

Unavailable

9

PEDAL, BRAKE (NOT AVAILABLE)

46500-KAF-000

Unavailable

10

HOOK, RETURN SPRING (NOT AVAILABLE)

46502-KAF-000

Unavailable

11

SPRING, BRAKE PEDAL RETURN (NOT AVAILABLE)

46514-KAF-000

Unavailable

12

TUBE, BRAKE PEDAL SPRING (SOURCE: VINTAGE PARTS INC.)

46515-KS6-700

$3.20

13

BOLT, TIE ROD (NOT AVAILABLE)

90065-KAF-670

Unavailable

14

BOLT, FLANGE (8X18) (NOT AVAILABLE)

90132-KAF-770

Unavailable

15

BOLT, CHANGE PIVOT

90115-KAF-000

$19.75

16

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

17

WASHER (8MM)

90514-921-000

$1.49

18

CLIP, SWITCH COVER

90601-KAF-003

$2.67

19

NUT, HEX. (6MM)

94002-06020-0S

$1.49

20

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

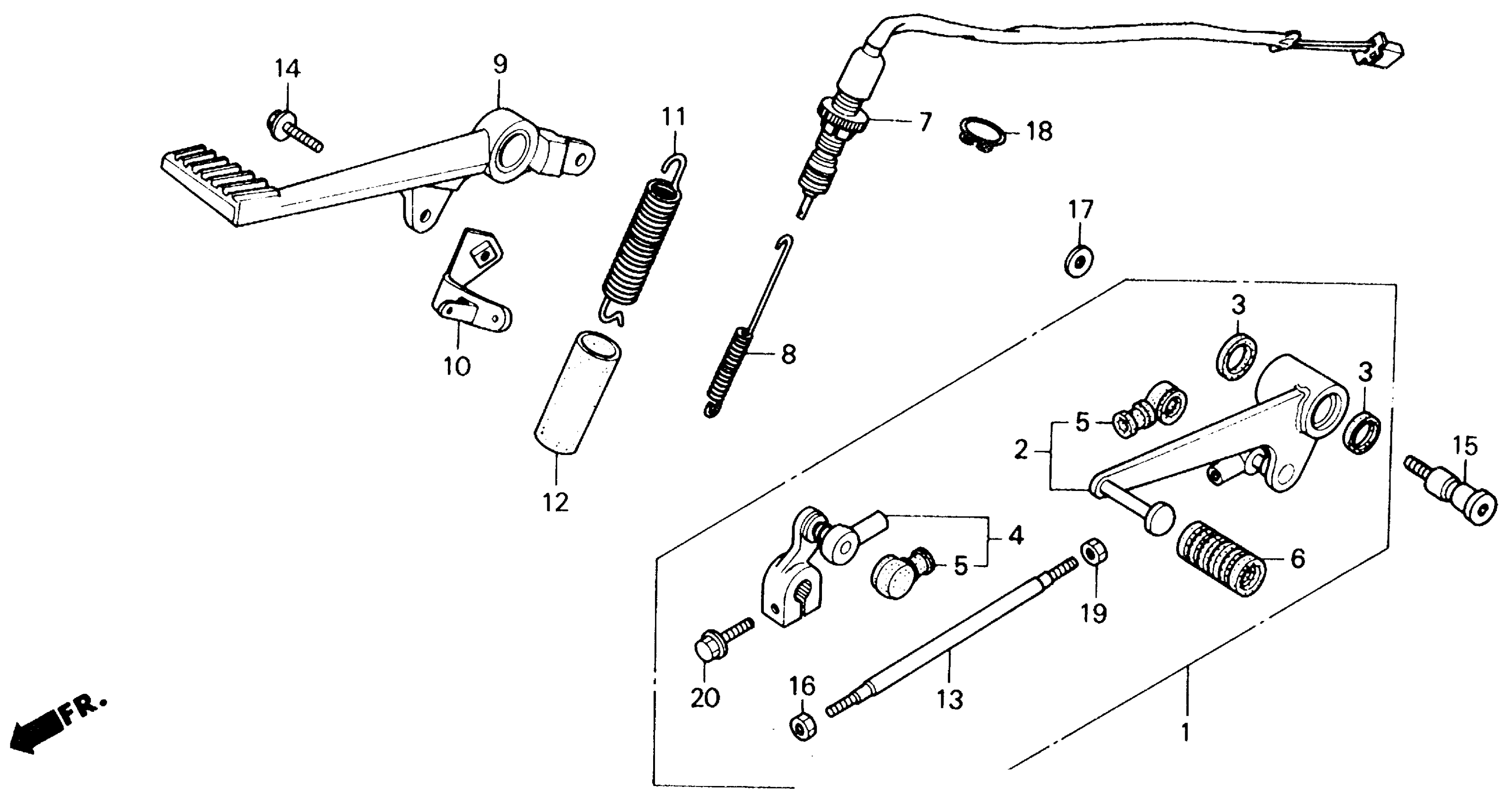

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 PEDAL Diagram

PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)

PEDAL, GEARSHIFT (SOURCE: VINTAGE PARTS INC.)

RUBBER, DUST SEAL

ARM, CHANGE (NOT AVAILABLE)

COVER, DUST

RUBBER, GEARSHIFT PEDAL

SWITCH ASSY., RR. STOP (NOT AVAILABLE)

SPRING, STOP SWITCH (NOT AVAILABLE)

PEDAL, BRAKE (NOT AVAILABLE)

HOOK, RETURN SPRING (NOT AVAILABLE)

SPRING, BRAKE PEDAL RETURN (NOT AVAILABLE)

TUBE, BRAKE PEDAL SPRING (SOURCE: VINTAGE PARTS INC.)

BOLT, TIE ROD (NOT AVAILABLE)

BOLT, FLANGE (8X18) (NOT AVAILABLE)

BOLT, CHANGE PIVOT

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

WASHER (8MM)

CLIP, SWITCH COVER

NUT, HEX. (6MM)

BOLT, FLANGE (6X20)
