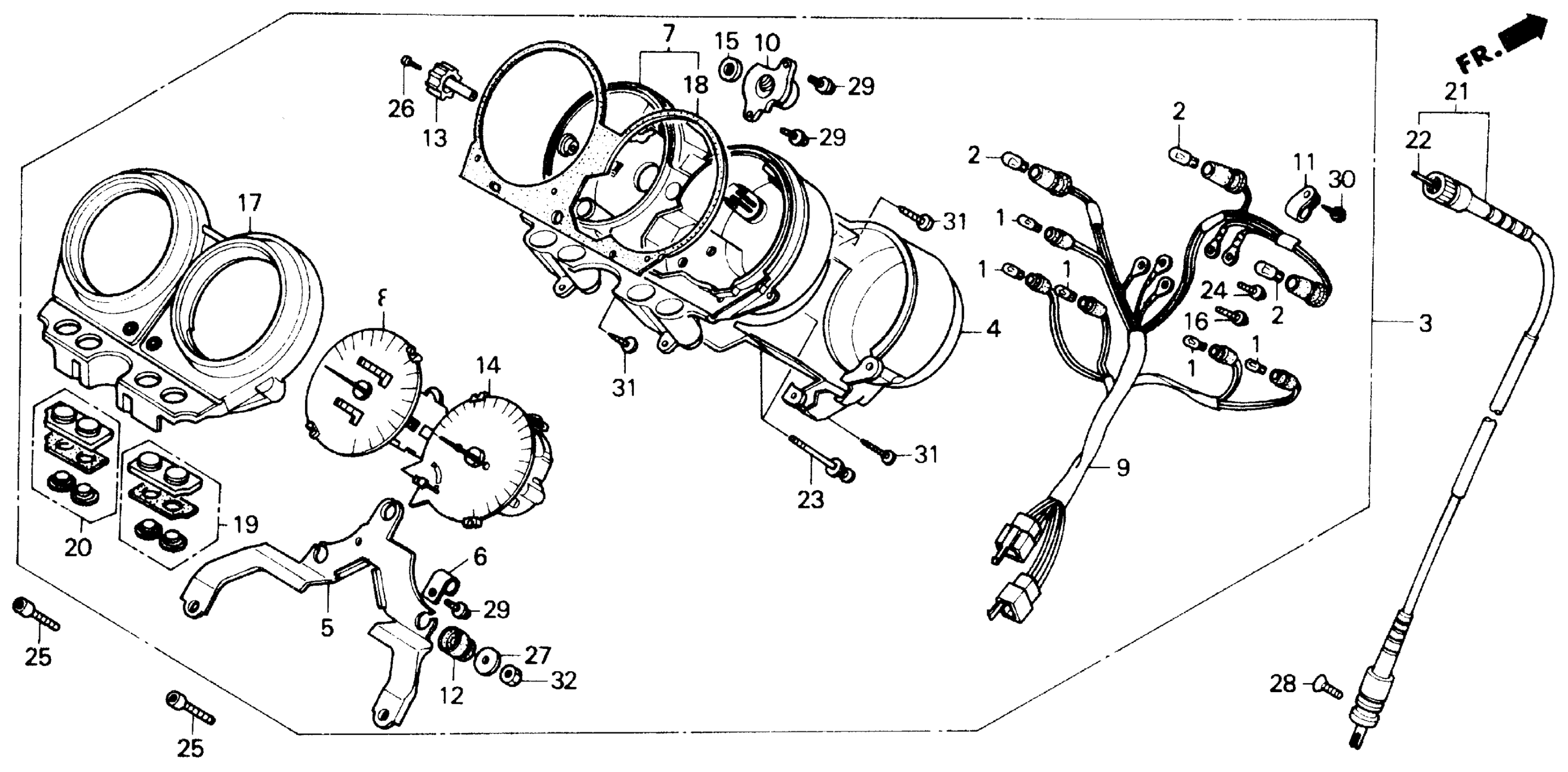

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 METER Diagram

#

Description
Price

1

BULB, WEDGE BASE (12V 1.7W)

34908-MG9-951

$2.33

2

BULB, WEDGE BASE (12V 1.7W H.D) (NIPPON SEIKI)

34909-KW3-003

$3.31

3

METER ASSY., COMBINATION (NOT AVAILABLE)

37100-KAF-671

Unavailable

4

COVER (SOURCE: VINTAGE PARTS INC.)

37110-KAF-671

Unavailable

5

BRACKET ASSY. This part replaces 37120-KAF-008.

37120-KBH-901

Unavailable

6

CLAMP

37121-ML7-671

$2.89

7

CASE ASSY. (INNER) This part replaces 37130-KAF-008.

37130-KAF-901

Unavailable

8

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-KAF-671

Unavailable

9

SOCKET (NOT AVAILABLE)

37205-KAF-671

Unavailable

10

BOSS, ELBOW

37211-MR7-008

Unavailable

11

CLAMP

37215-KAF-008

$2.90

12

RUBBER, METER SETTING (SOURCE: VINTAGE PARTS INC.)

37215-ML0-008

Unavailable

13

KNOB, TRIP METER

37220-445-008

Unavailable

14

METER ASSY., TACHO & TEMPERATURE (NOT AVAILABLE)

37250-KAF-008

Unavailable

15

SEAL

37264-MR7-008

$3.49

16

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

17

CASE ASSY. (UPPER) (NOT AVAILABLE)

37610-KAF-008

Unavailable

18

GASKET (SOURCE: VINTAGE PARTS INC.)

37613-KAF-008

Unavailable

19

LENS ASSY., R. SMOKE (SOURCE: VINTAGE PARTS INC.)

37616-KAF-671

Unavailable

20

LENS ASSY., L. SMOKE (NOT AVAILABLE)

37617-KAF-008

Unavailable

21

CABLE, SPEEDOMETER (NOT AVAILABLE)

44830-KAF-000

Unavailable

22

CABLE (INNER) (USE P/N: 44830-KB7-000) This part replaces 44831-GW6-300.

44831-437-670

Unavailable

23

SCREW, TAPPING (4X3) This part replaces 90032-ML7-671.

90133-SG0-A01

Unavailable

24

SCREW-WASHER (3X10)

90108-GN2-008

$2.41

25

BOLT, SOCKET (6X16) (NOT AVAILABLE)

90117-KAF-000

Unavailable

26

SCREW, PAN (2X6)

90158-KM7-911

$1.92

27

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

28

SCREW, OVAL (5X20)

93700-05020-0A

$1.49

29

SCREW-WASHER (4X10)

93893-04010-00

$1.49

29

SCREW-WASHER (4X10) This part replaces 93893-04010-10.

93893-04010-00

$1.49

30

SCREW, TAPPING (4X12)

93903-24320

$1.49

31

SCREW, TAPPING (4X16)

93903-24480

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49
