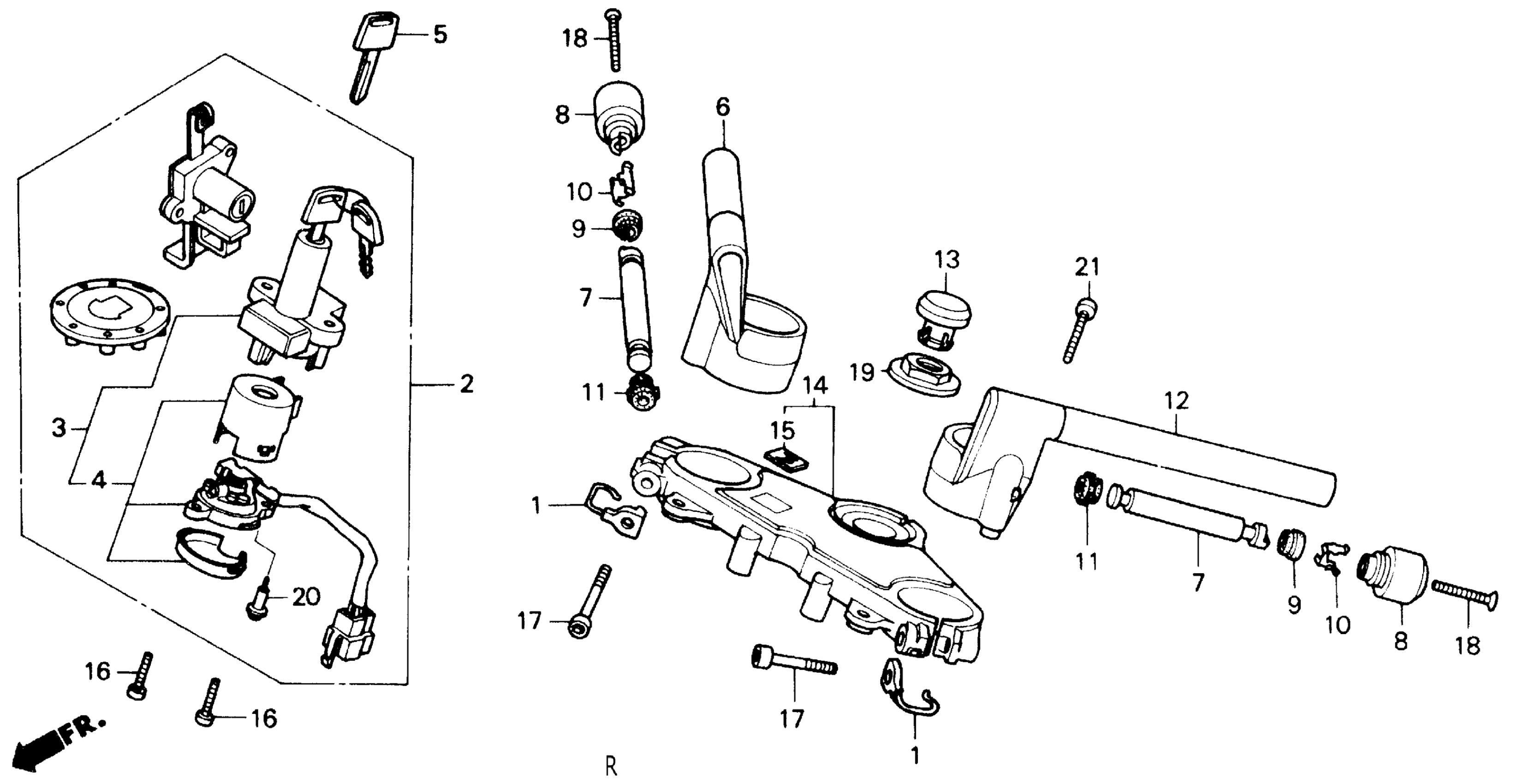

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 HANDLEBAR Diagram

#

Description
Price

1

GUIDE, CABLE (NOT AVAILABLE)

17908-KT7-000

Unavailable

2

LOCK SET This part replaces 35010-KAF-000.

35010-KAF-030

Unavailable

3

SWITCH, COMBINATION This part replaces 35100-KAF-007.

35100-KAF-017

Unavailable

4

BASE, CONTACT This part replaces 35101-KAF-000.

35101-KY1-000

Unavailable

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

6

HANDLEBAR (NOT AVAILABLE)

53100-KAF-670

Unavailable

7

WEIGHT B, HANDLEBAR

53105-KV3-000

$17.27

8

WEIGHT, HANDLEBAR This part replaces 53105-MN4-000.

53105-MN4-010

$21.73

8

WEIGHT, HANDLEBAR

53105-MN4-010

$21.73

9

RUBBER B, HANDLE WEIGHT

53107-MJ0-000

$3.77

10

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$5.14

11

RUBBER B, HANDLE WEIGHT

53109-MM5-000

$3.72

12

HANDLEBAR, L. (NOT AVAILABLE)

53150-KAF-670

Unavailable

13

CAP, STEERING STEM NUT

53232-MJ4-670

$13.43

14

BRIDGE ASSY., FORK TOP (NOT AVAILABLE)

53300-KAF-670

Unavailable

15

EMBLEM, WING MARK

86150-MR8-300

Unavailable

16

BOLT, SOCKET (8MM)

90100-KV3-700

$5.52

17

BOLT, SOCKET (7X46) (SOURCE: VINTAGE PARTS INC.)

90151-MB2-000

Unavailable

18

SCREW, OVAL (6X50) SCREW, OVAL (6X55)

90191-MJ0-000

$3.42

19

NUT, STEERING STEM

90304-MJ4-670

$15.40

20

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

20

SCREW, TAPPING (3X16) This part replaces 91059-MK4-601.

91059-KY2-711

$2.97

21

BOLT, SOCKET (8X35)

96700-08035-07

$2.13
