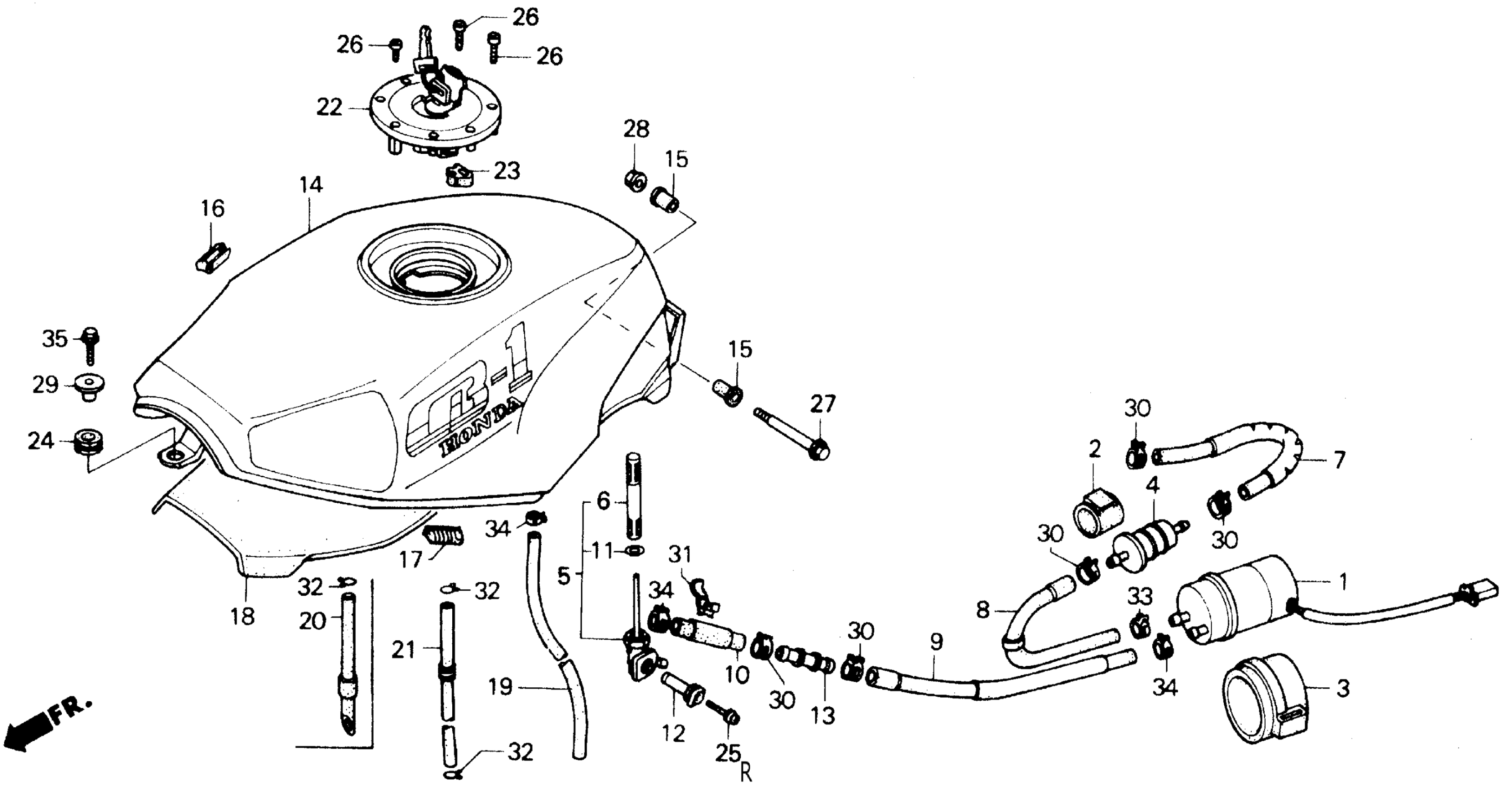

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 FUEL TANK Diagram

#

Description
Price

1

SET,FUEL PUMP This part replaces 16710-KAF-003.

16700-KAF-405

Unavailable

2

HOLDER, STRAINER

16711-MF2-000

$17.60

3

RUBBER, FUEL PUMP SHOCK

16711-KAF-305

$14.40

3

RUBBER, FUEL PUMP SHOCK This part replaces 16711-ML7-000.

16711-KAF-305

$14.40

4

FILTER, FUEL

16900-MG8-003

$23.49

5

PETCOCK ASSY.

16950-KAF-000

$97.16

6

SCREEN, FUEL STRAINER

16952-MR1-005

$32.28

7

TUBE A, FUEL (NOT AVAILABLE)

16955-KAF-000

Unavailable

8

TUBE C, FUEL (NOT AVAILABLE)

16956-KAF-000

Unavailable

9

TUBE B, FUEL (NOT AVAILABLE)

16957-KAF-000

Unavailable

10

TUBE D, FUEL (NOT AVAILABLE)

16958-KAF-000

Unavailable

11

O-RING

16958-KM9-005

$3.89

12

LEVER, PETCOCK (NOT AVAILABLE)

16963-KAF-670

Unavailable

13

JOINT, FUEL TUBE (NOT AVAILABLE)

16966-MJ4-670

Unavailable

14

TK SUB, FUEL *B131P* This part replaces 17500-KAF-770ZA.

17500-KAF-770ZB

Unavailable

15

CUSHION, FUEL TANK PIVOT

17506-MB1-000

$4.40

16

RUBBER, R. TANK SIDE (NOT AVAILABLE)

17516-KAF-000

Unavailable

17

RUBBER, L. TANK SIDE (NOT AVAILABLE)

17517-KAF-000

Unavailable

18

MAT A, FUEL TANK MUFFLER (NOT AVAILABLE)

17521-KAF-000

Unavailable

19

TUBE, FUEL TANK DRAIN (NOT AVAILABLE)

17530-KAF-000

Unavailable

20

TUBE, FUEL TANK BREATHER (NOT AVAILABLE)

17540-KAF-010

Unavailable

22

CAP, FUEL FILLER This part replaces 17620-KAF-003.

17620-KAF-033

Unavailable

23

RUBBER, BREATHER SEAL

17646-MN8-700

$20.43

24

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

25

SCREW-WASHER (5X25)

90020-KV3-000

$3.24

25

SCREW-WASHER (5X25) This part replaces 90020-KV3-700.

90020-KV3-000

$3.24

26

BOLT, SOCKET (4X21) This part replaces 90074-KV3-700.

90074-MT4-000

$3.04

26

BOLT, SOCKET (4X21)

90074-MT4-000

$3.04

27

BOLT, TANK HINGE

90135-MM4-000

$7.39

28

NUT, U (6MM)

90301-473-003

$4.07

29

COLLAR (6.2X12)

90501-425-000

$4.69

30

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

31

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

32

CLIP, TUBE (B8)

95002-02080

$1.80

33

CLAMP, TUBE (D12.5)

95002-41250-08

$2.34

34

CLAMP, TUBE (D13)

95002-41300-08

$2.92

35

BOLT, FLANGE (6X25)

96001-06025-02

$1.49
