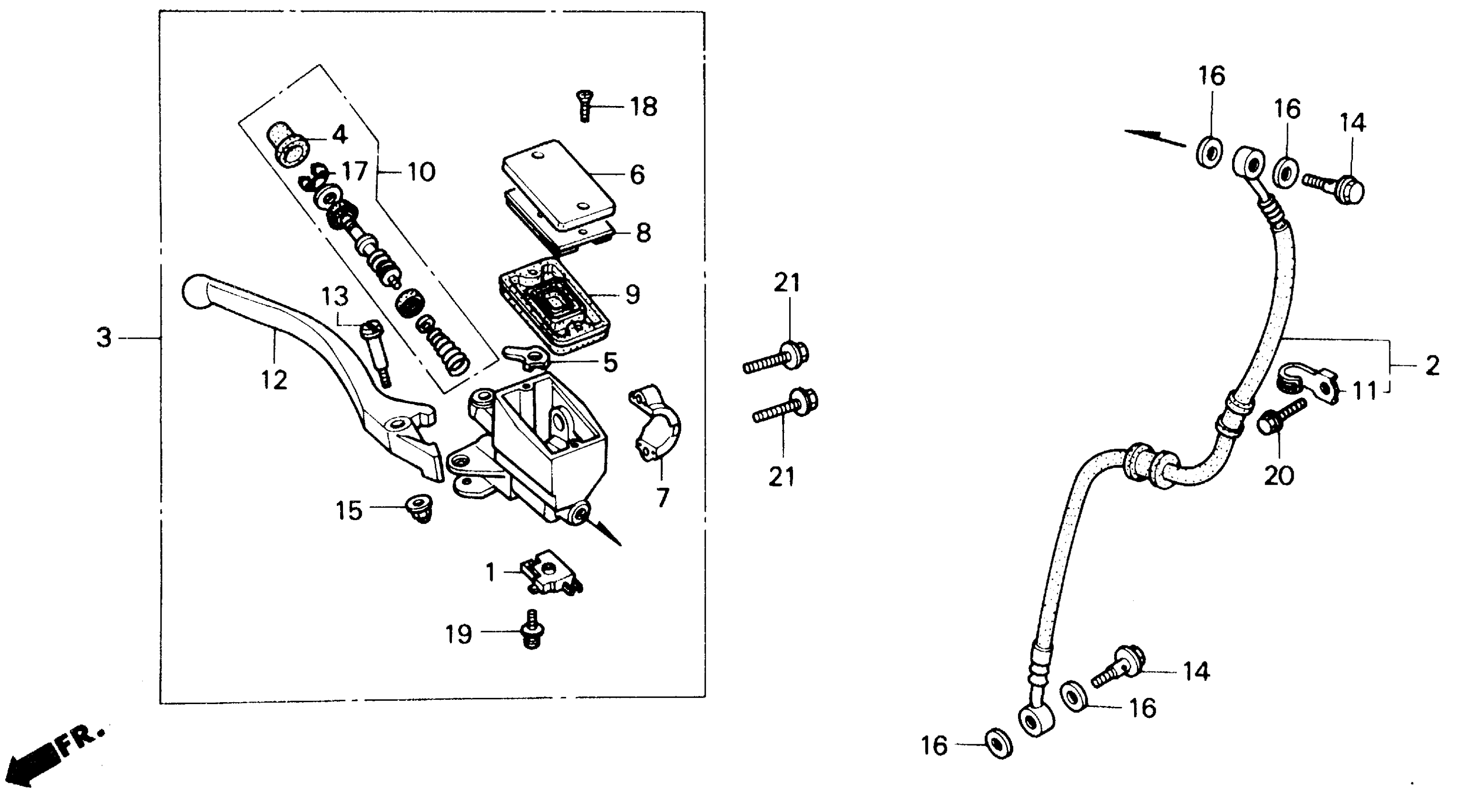

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE, R. FR. BRAKE (NOT AVAILABLE) This part replaces 45125-KAF-003.

45125-KAF-761

Unavailable

3

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-KAF-306)

45500-KAF-672

Unavailable

4

BOOT

45504-410-003

$12.16

5

PROTECTOR

45512-MA6-006

$4.28

6

CAP, MASTER CYLINDER

45513-MB4-673

$47.89

7

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

8

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

9

DIAPHRAGM

45520-MA5-672

$18.13

10

MASTER CYLINDER SET

45530-MN9-305

$50.74

11

CLAMP B, RR. BRAKE HOSE (NOT AVAILABLE)

52118-KV3-700

Unavailable

12

LEVER, R. HANDLE (COO)

53175-MFR-305

$18.76

12

LEVER, R. HANDLE (COO) This part replaces 53175-ML5-006.

53175-MFR-305

$18.76

13

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

14

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

14

BOLT, OIL (10X22)

90145-MS9-612

$7.54

15

NUT, CAP (6MM)

90201-415-000

$2.05

16

WASHER, OIL BOLT

90545-300-000

$3.99

17

CIRCLIP

90651-MA5-671

$2.66

18

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

18

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

19

SCREW-WASHER (4X12)

93893-04012-08

$1.49

19

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

20

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

21

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
