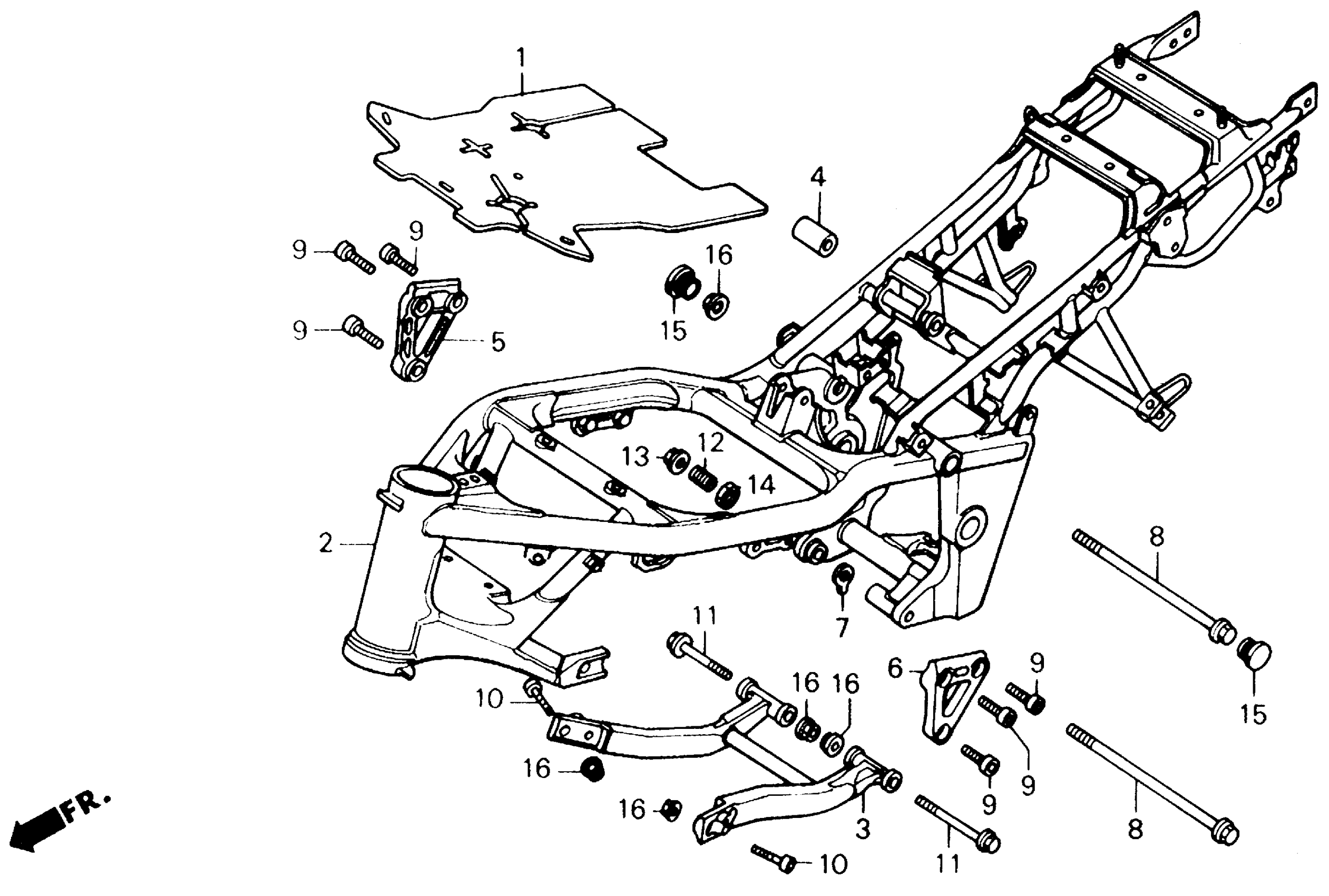

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 FRAME Diagram

#

Description
Price

1

RUBBER, HEAT GUARD (NOT AVAILABLE)

19126-KAF-000

Unavailable

2

FRAME (NOT AVAILABLE)

50100-KAF-670

Unavailable

3

FRAME (LOWER) (NOT AVAILABLE)

50200-KAF-000

Unavailable

4

COLLAR A, ENGINE HANGER (NOT AVAILABLE)

50350-KAF-000

Unavailable

5

STAY, R. ENGINE MOUNT (NOT AVAILABLE)

50351-KAF-000

Unavailable

6

STAY, L. ENGINE SETTING (NOT AVAILABLE)

50352-KAF-000

Unavailable

7

WASHER, SPECIAL (10MM) (NOT AVAILABLE)

50358-KAF-000

Unavailable

8

BOLT, FLANGE (10X288) (NOT AVAILABLE)

90102-KAF-000

Unavailable

9

BOLT, SOCKET (10X23)

90105-KAF-000

$7.74

10

BOLT, SOCKET (10X32) (NOT AVAILABLE)

90106-MA6-750

Unavailable

11

BOLT, FLANGE (10X120) (NOT AVAILABLE)

90110-KAF-000

Unavailable

12

COLLAR, ENGINE MOUNT ADJUSTING (NOT AVAILABLE)

90116-KAF-000

Unavailable

13

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

14

NUT, LOCK (20MM) (SOURCE: VINTAGE PARTS INC.)

90341-KV3-700

Unavailable

15

PLUG, FRAME SIDE (NOT AVAILABLE)

90851-KAF-000

Unavailable

16

NUT, FLANGE (10MM)

94050-10000

$1.59
