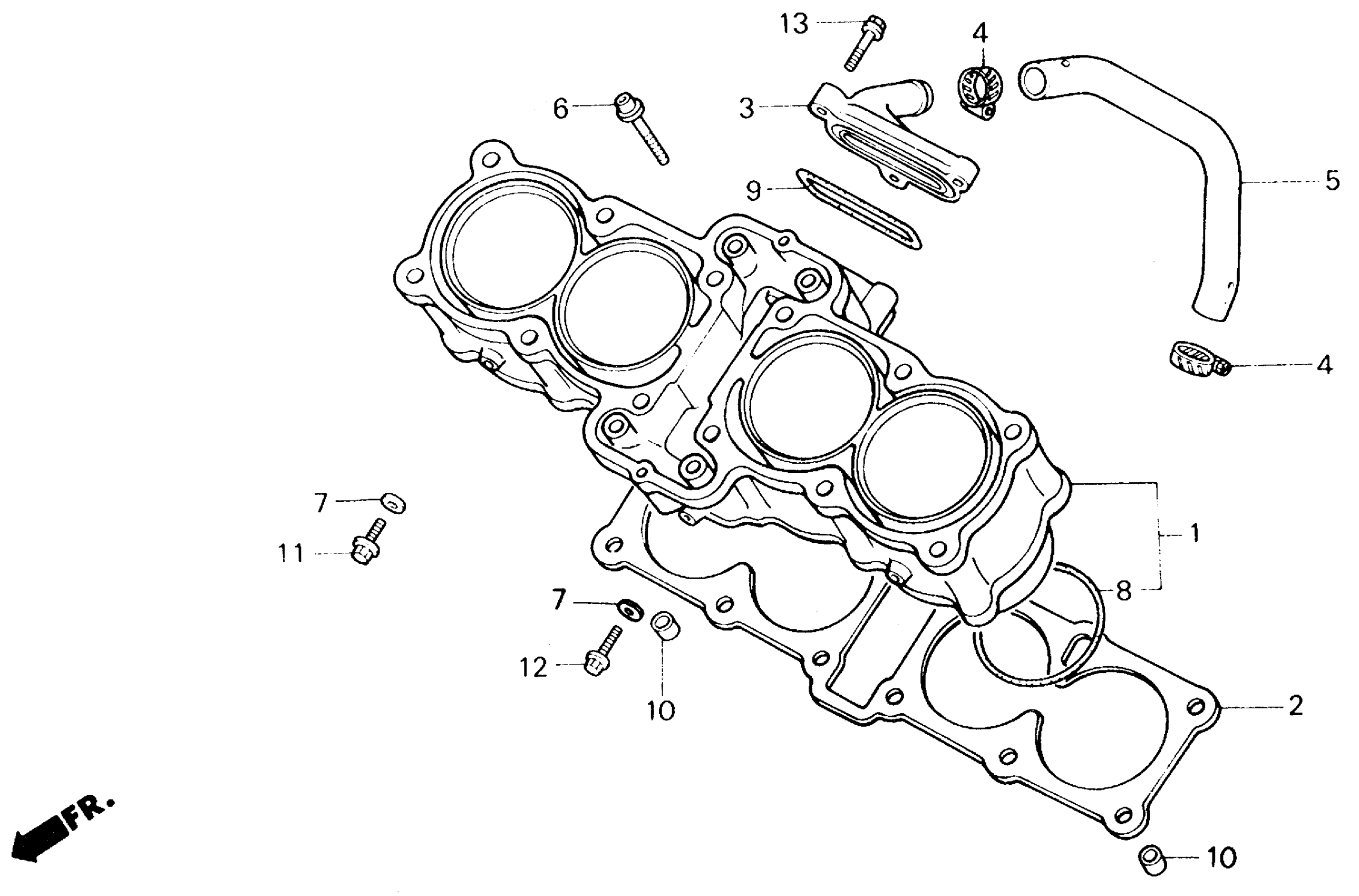

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 CYLINDER Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-KAF-000

Unavailable

2

GASKET, CYLINDER (NOT AVAILABLE)

12191-KY2-000

Unavailable

3

JOINT, WATER (NOT AVAILABLE)

19063-KT8-000

Unavailable

4

CLAMP, WATER HOSE

19503-MB1-870

$12.56

4

CLAMP, WATER HOSE This part replaces 19516-MJ8-000.

19503-MB1-870

$12.56

5

HOSE A, WATER (NOT AVAILABLE)

19525-KT8-000

Unavailable

6

BOLT, FLANGE SOCKET (6X32)

90091-MG3-000

$3.71

7

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

8

O-RING (61X2) (ARAI)

91304-KT8-003

$2.92

8

O-RING (61X2) (ARAI) This part replaces 91304-KT8-004.

91304-KT8-003

$2.92

9

GASKET, WATER JOINT (NOT AVAILABLE)

91307-KT8-003

Unavailable

10

PIN, DOWEL (10X16)

94301-10160

$2.28

11

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | Use up to Engine SN 2101233

95701-06012-00

$1.62

11

BOLT, FLANGE (6X14) | Use from Engine SN 2101234 This part replaces 90018-KY6-000.

95701-06014-00

$1.49

11

BOLT, FLANGE (6X14) | Use from Engine SN 2101234

95701-06014-00

$1.49

12

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

13

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
