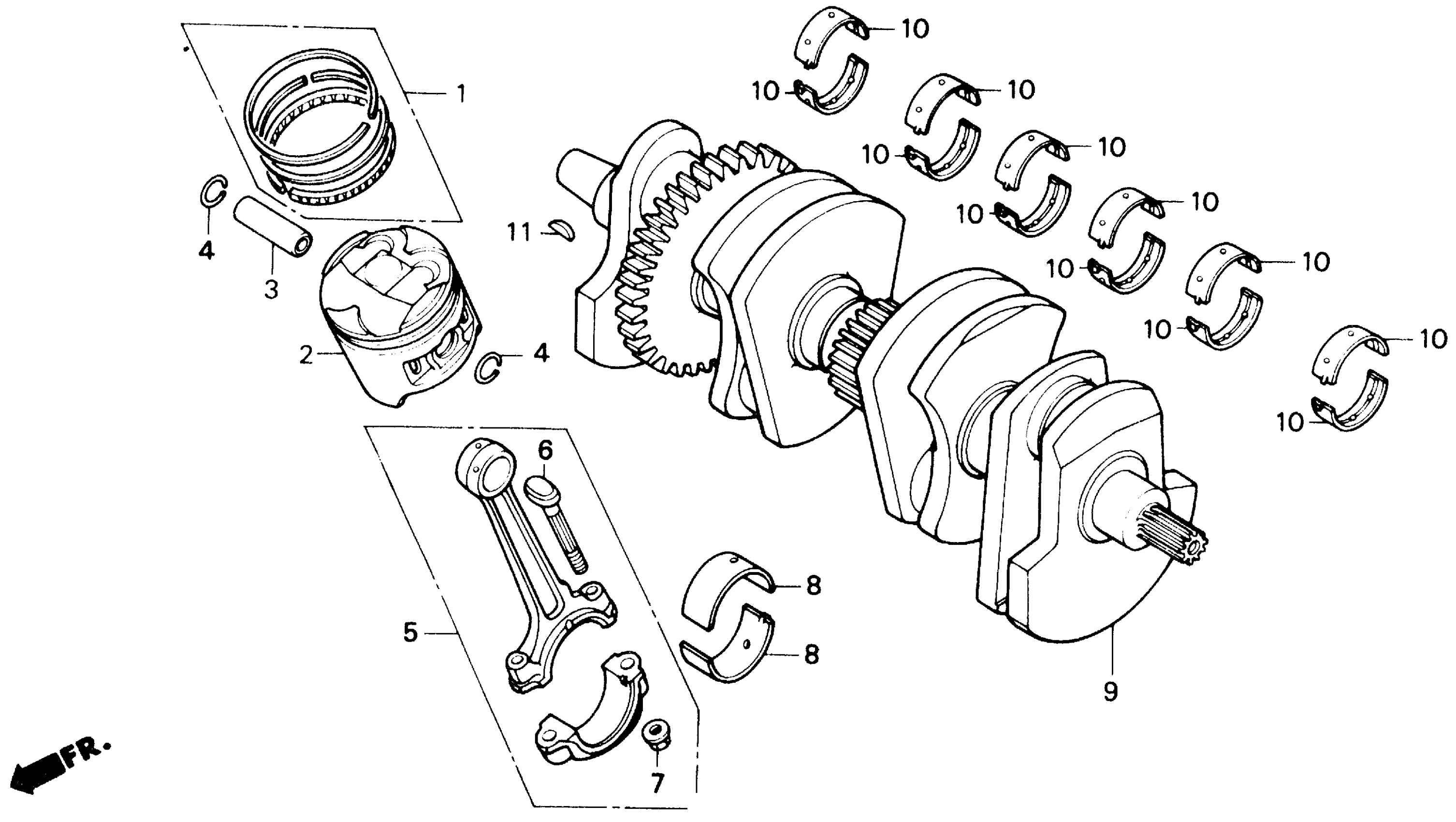

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 CRANKSHAFT Diagram
#
Description
Price
1
RING SET, PISTON (STD) This part replaces 13011-KAF-000.
13011-MV4-305
Unavailable
1
RING SET, PISTON (STD)
13011-MV4-305
Unavailable
1
RING SET, PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).
13021-KAF-750
Unavailable
1
RING SET, PISTON (OVER SIZE) (0.50) (SOURCE: VINTAGE PARTS INC.) | (Optional).
13031-KAF-750
Unavailable
2
PISTON (NOT AVAILABLE)
13101-KY2-000
Unavailable
2
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).
13102-KAF-750
Unavailable
2
PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).
13103-KAF-750
Unavailable
3
PIN, PISTON (NOT AVAILABLE)
13111-KY2-000
Unavailable
4
CLIP, PISTON PIN (14MM) (SOURCE: VINTAGE PARTS INC.)
13112-ML0-720
Unavailable
5
ROD A, CONNECTING This part replaces 13201-KT8-010.
13201-MV4-000
Unavailable
8
BEARING A, CONNECTING ROD (BROWN) (NOT AVAILABLE)
13224-KT8-003
Unavailable
8
BEARING C, CONNECTING ROD (YELLOW) (SOURCE: VINTAGE PARTS INC.)
13226-KT8-003
Unavailable
9
CRANKSHAFT (NOT AVAILABLE)
13300-KY2-000
Unavailable
10
BEARING A This part replaces 13323-KT8-003.
13323-KT8-013
Unavailable
10
BRG B, CRANKSHAFT This part replaces 13324-KT8-003.
13324-KT8-013
Unavailable
10
BRG C, CRANKSHAFT This part replaces 13325-KT8-003.
13325-KT8-013
Unavailable
10
BRG D, CRANKSHAFT This part replaces 13326-KT8-003.
13326-KT8-013
Unavailable
