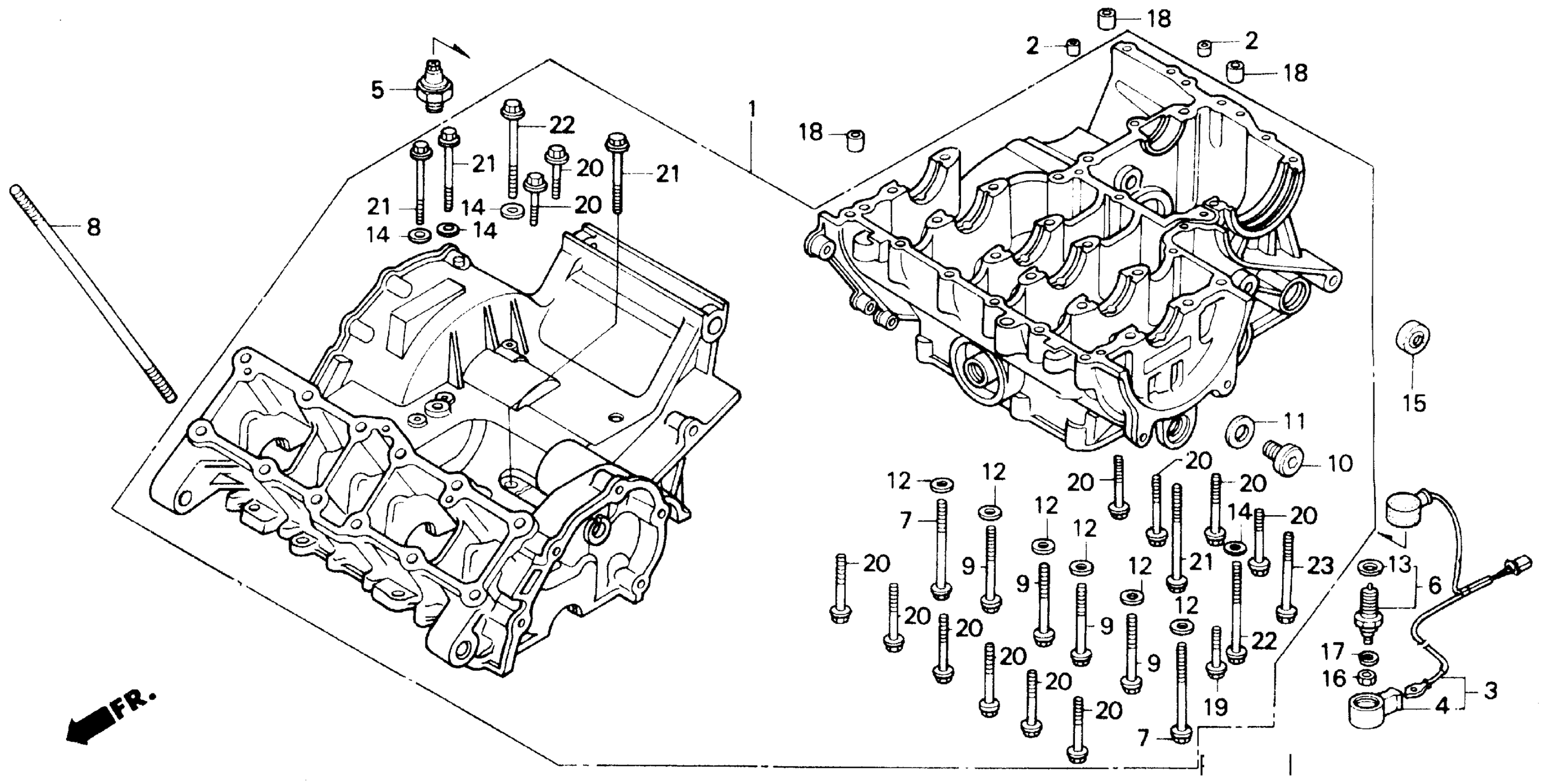

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET (NOT AVAILABLE)

11000-KAF-000

Unavailable

2

ORIFICE (1.2MM)

15515-KT8-000

$7.72

3

WIRE, OIL & NEUTRAL SWITCH (NOT AVAILABLE)

32130-KAF-000

Unavailable

4

COVER, NEUTRAL SWITCH (NOT AVAILABLE)

32550-MJ6-000

Unavailable

5

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

5

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

6

SWITCH ASSY., NEUTRAL (TEC)

35600-MM5-003

$18.90

7

BOLT, FLANGE (8X88) (NOT AVAILABLE)

90024-MJ0-000

Unavailable

8

BOLT, STUD (8X147) (NOT AVAILABLE)

90031-MA6-000

Unavailable

9

BOLT, FLANGE (8X75) (SOURCE: VINTAGE PARTS INC.)

90041-MA6-000

Unavailable

10

BOLT, SEALING (20MM)

90048-ME5-000

$15.56

11

WASHER, SEALING (20MM)

90442-ME5-000

Unavailable

12

WASHER, SEALING (8MM)

90442-028-000

$1.77

13

WASHER, NEUTRAL

90443-MJ6-000

$1.92

14

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

15

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

16

NUT, HEX. (4MM)

94001-04000-0S

$1.49

17

WASHER, SPRING (4MM)

94111-04800

$1.49

18

PIN B, DOWEL (10X16)

94302-10160

$1.69

19

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

20

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

20

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

21

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

22

BOLT, FLANGE (6X100)

95701-06100-00

$2.79

23

BOLT, FLANGE (8X65)

95701-08065-00

$1.72
