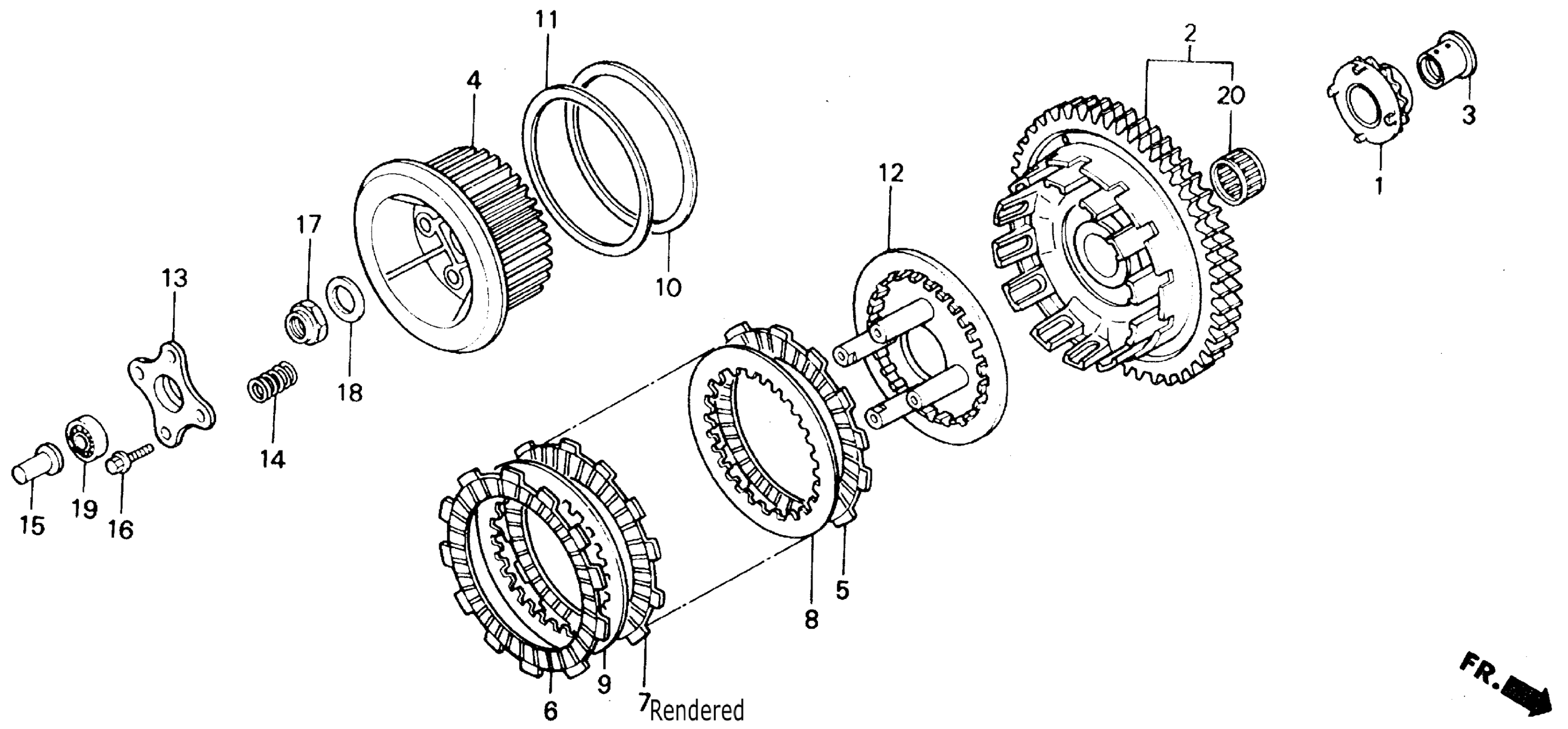

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 CLUTCH Diagram

#

Description
Price

1

SPROCKET (25T) This part replaces 15131-KT8-000.

15131-MY9-790

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE)

22100-KY2-710

Unavailable

3

GUIDE, CLUTCH This part replaces 22118-KAF-000.

22118-MCE-000

Unavailable

4

CENTER SET, CLUTCH This part replaces 22120-KAF-000.

04103-MY9-305

Unavailable

5

DISK, CLUTCH FRICTION

22201-KY2-000

$14.84

6

DISK, CLUTCH FRICTION

22201-MA7-000

$15.90

7

DISK, CLUTCH FRICTION

22201-MT6-601

$16.54

8

PLATE, CLUTCH

22321-GHB-811

$12.02

8

PLATE, CLUTCH This part replaces 22321-MN4-000.

22321-GHB-811

$12.02

8

PLATE, CLUTCH This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

8

PLATE, CLUTCH This part replaces 22321-374-000.

22321-GHB-811

$12.02

9

PLATE B, CLUTCH (2.0)

22322-MN4-000

$16.72

10

SPRING, CLUTCH PLATE

22325-MN4-000

$10.43

11

SEAT, JUDDER SPRING

22326-MN4-000

Unavailable

12

PLATE, CLUTCH PRESSURE

22350-MN4-000

Unavailable

13

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-MN4-010

Unavailable

14

SPRING, CLUTCH (NOT AVAILABLE)

22401-KY2-000

$3.93

15

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22847-KY2-000

Unavailable

16

BOLT, FLANGE (6X25)

90003-MM4-000

$3.15

17

NUT, LOCK (20MM)

90241-KM9-000

$11.62

18

WASHER, LOCK

90432-121-000

$4.21

19

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$17.08

20

BEARING, NEEDLE (30X37X20)

91005-KT8-003

$32.51
