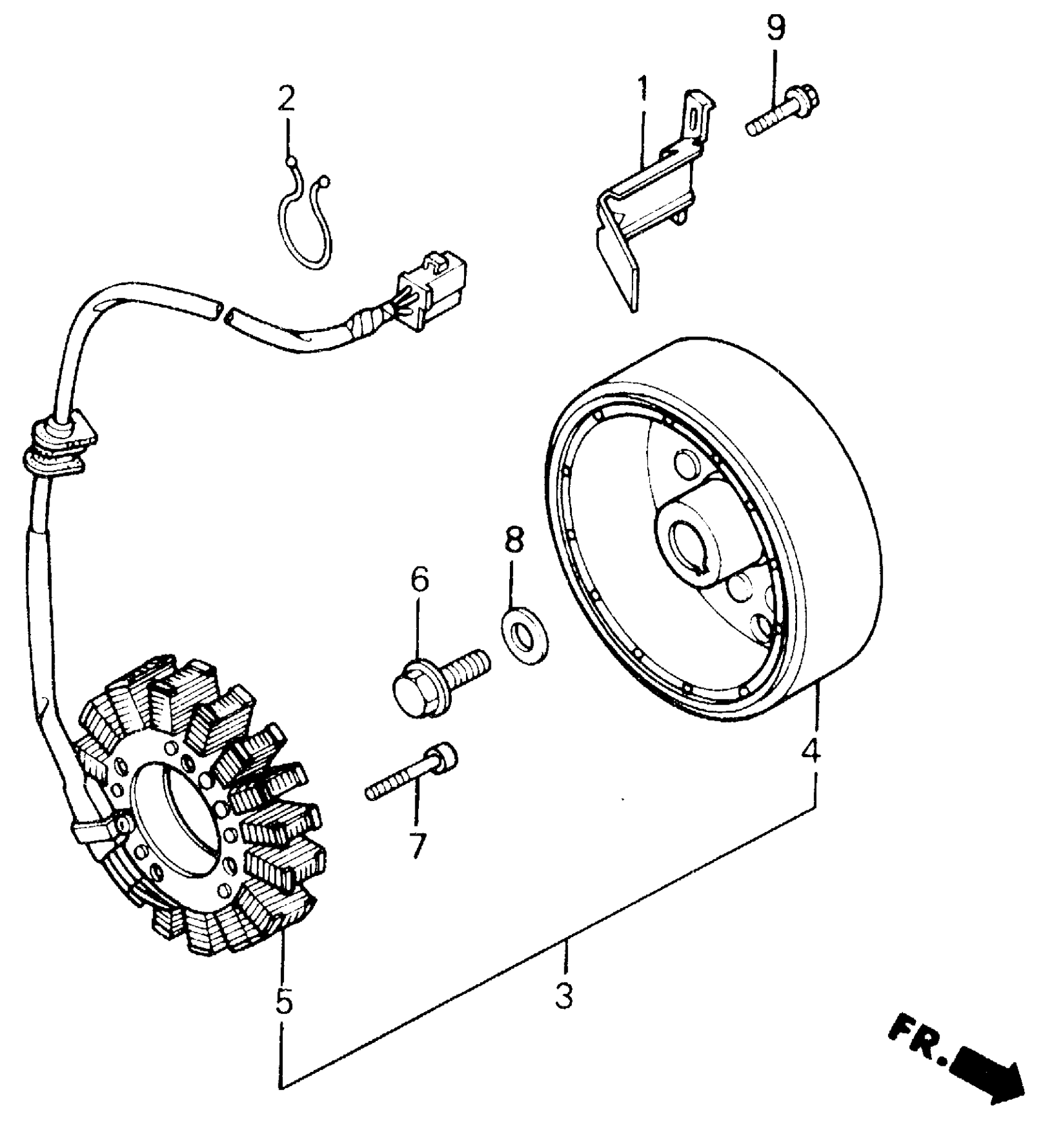

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 ALTERNATOR Diagram

#

Description

Price

1

CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)

11333-KT8-000

Unavailable

2

CLIP, TUBE (26)

17916-PE1-671

Unavailable

3

GENERATOR ASSY., FLYWHEEL TYPEA.C. (MITSUBA) (NOT AVAILABLE)

31100-KAF-671

Unavailable

4

FLYWHEEL (MITSUBA) (NOT AVAILABLE)

31110-KAF-671

Unavailable

5

STATOR (MITSUBA) (NOT AVAILABLE)

31120-KAF-003

Unavailable

6

BOLT, ROTOR SETTING

90023-KK3-830

$4.59

7

BOLT, SOCKET (6X30)

90117-GB2-000

$4.31

8

WASHER (10X24)

90403-KM9-000

$8.21

9

BOLT, FLANGE (6X14)

95701-06014-00

$0.93
