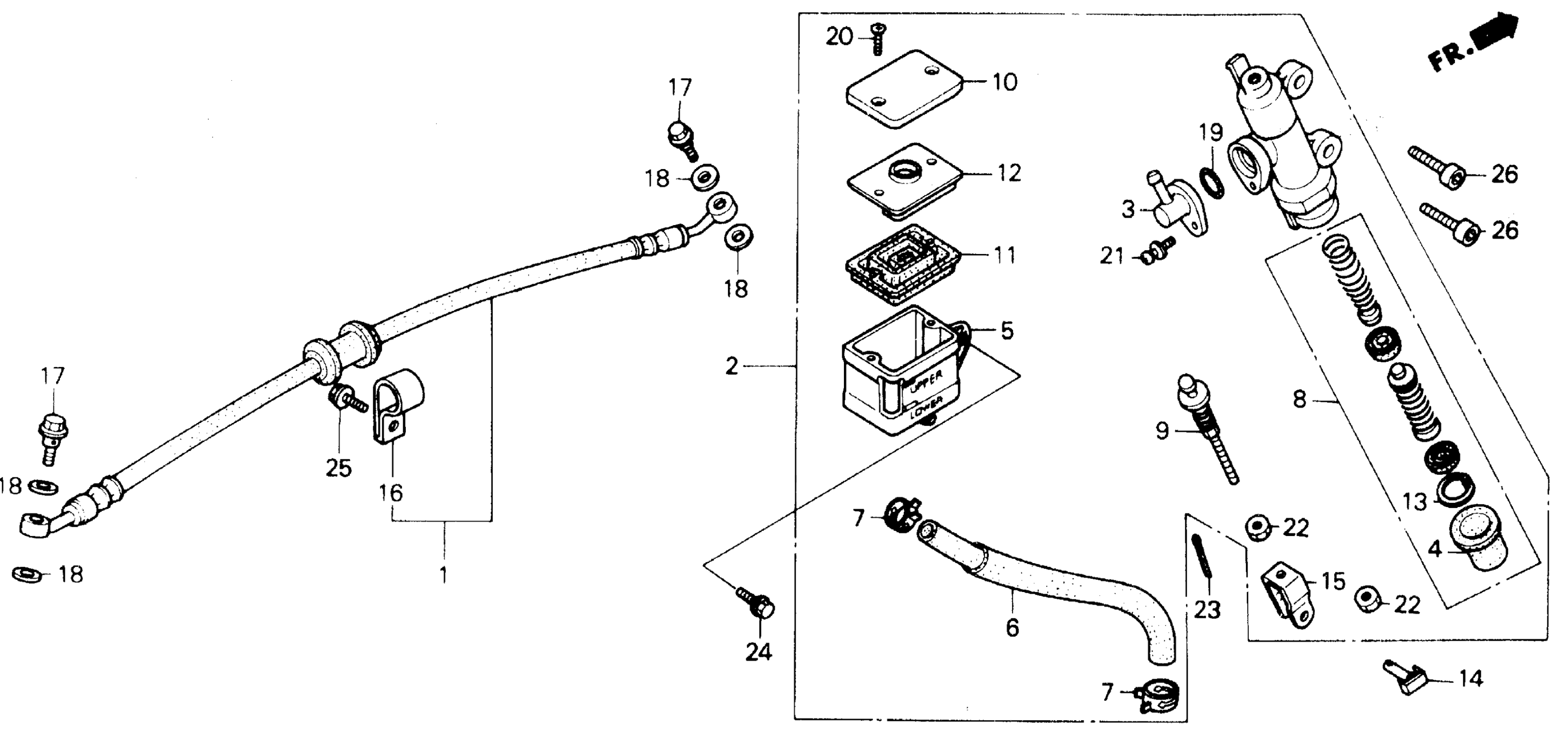

Honda CB400FA (89) CB-1, JPN, VIN# JH2NC270-KM000010 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE (NOT AVAILABLE) This part replaces 43310-KAF-003.

43310-KAF-761

Unavailable

MASTER CYLINDER ASSY., RR. (NOT AVAILABLE)

43500-KAF-671

Unavailable

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$10.94

BOOT

43504-MB2-006

$9.01

CUP, OIL

43511-KT8-006

$32.58

HOSE, MASTER CYLINDER (NOT AVAILABLE) | Use from Frame SN KM003189

43512-KAF-006

Unavailable

HOSE, MASTER CYLINDER (NOT AVAILABLE) | Use up to Frame SN KM003188

43512-KAF-671

Unavailable

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$11.72

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$41.76

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$41.76

ROD, PUSH

43530-KV3-701

$18.06

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

DIAPHRAGM

45520-MG7-006

$9.52

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

CIRCLIP

46182-500-013

$4.46

PIN D, JOINT This part replaces 46503-KW3-000.

95015-54000

$3.95

PIN D, JOINT

95015-54000

$3.95

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-KAF-006

Unavailable

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.82

BOLT, OIL (10X22)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW, FLAT (4X40)

93600-04040-1G

$0.43

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, SPLIT (2.0X15)

94201-20150

$0.94

BOLT, FLANGE (6X16) This part replaces 95900-06016-00.

95701-06016-00

$1.48

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

BOLT, SOCKET (6X20)

96600-06020-00

$1.17
