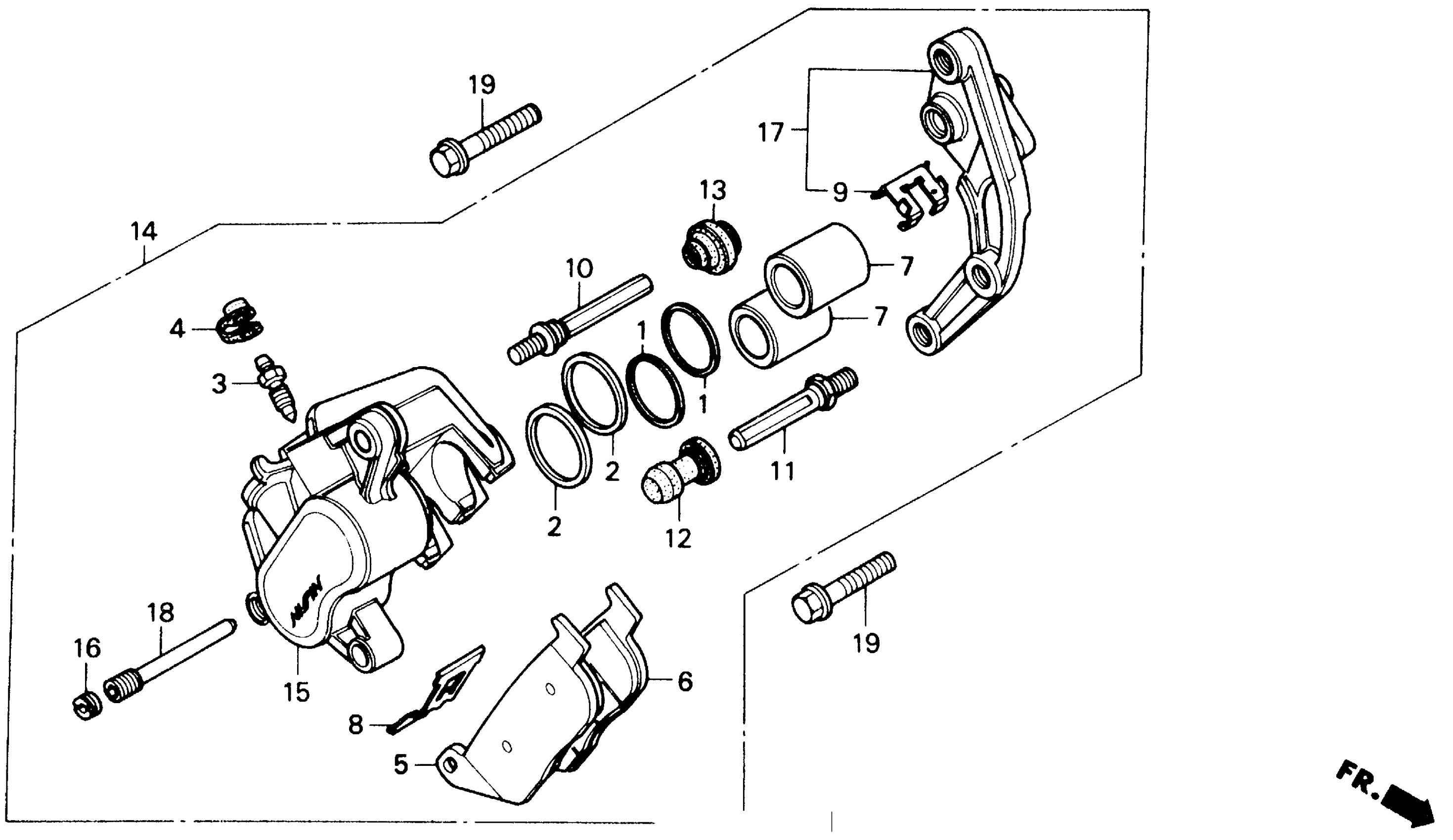

Honda CB400FA (89) CB-1, JPN, VIN# JH2NC270-KM000010 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DUST SEAL

43109-MA3-006

$5.73

2

SEAL, PISTON

43209-MA3-006

$7.04

3

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

4

CAP, BLEEDER

43353-461-771

$5.05

5

PAD, FR. BRAKE (A) (NOT AVAILABLE)

45105-MS9-612

Unavailable

6

PAD, FR. BRAKE (B) (NOT AVAILABLE)

45106-MS9-612

Unavailable

7

PISTON This part replaces 45107-MN4-006.

45107-MN4-016

$35.53

7

PISTON

45107-MN4-016

$35.53

8

SPRING, PAD (NISSIN) This part replaces 45108-ML7-921.

45108-ML7-922

$6.19

8

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

9

RETAINER

45112-MS9-611

$5.46

10

BOLT A, PIN

45131-ML7-921

$15.44

11

BOLT, PIN

45131-166-016

$7.63

12

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

13

BOOT B

45133-MA3-006

$5.46

14

CALIPER ASSY., R. FR. (NOT AVAILABLE)

45200-KAF-671

Unavailable

15

BODY, R. FR. CALIPER (NOT AVAILABLE) This part replaces 45201-KAF-671.

45201-KAF-672

Unavailable

16

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$5.12

16

PLUG, PIN

45203-MG3-016

$5.12

17

BRACKET, R. FR. (NOT AVAILABLE)

45210-KAF-006

Unavailable

18

PIN, HANGER This part replaces 45215-ML7-921.

45215-ML7-922

$10.67

18

PIN, HANGER

45215-ML7-922

$10.67

19

BOLT, FLANGE (8X32) (NOT AVAILABLE)

90107-MR7-000

Unavailable
