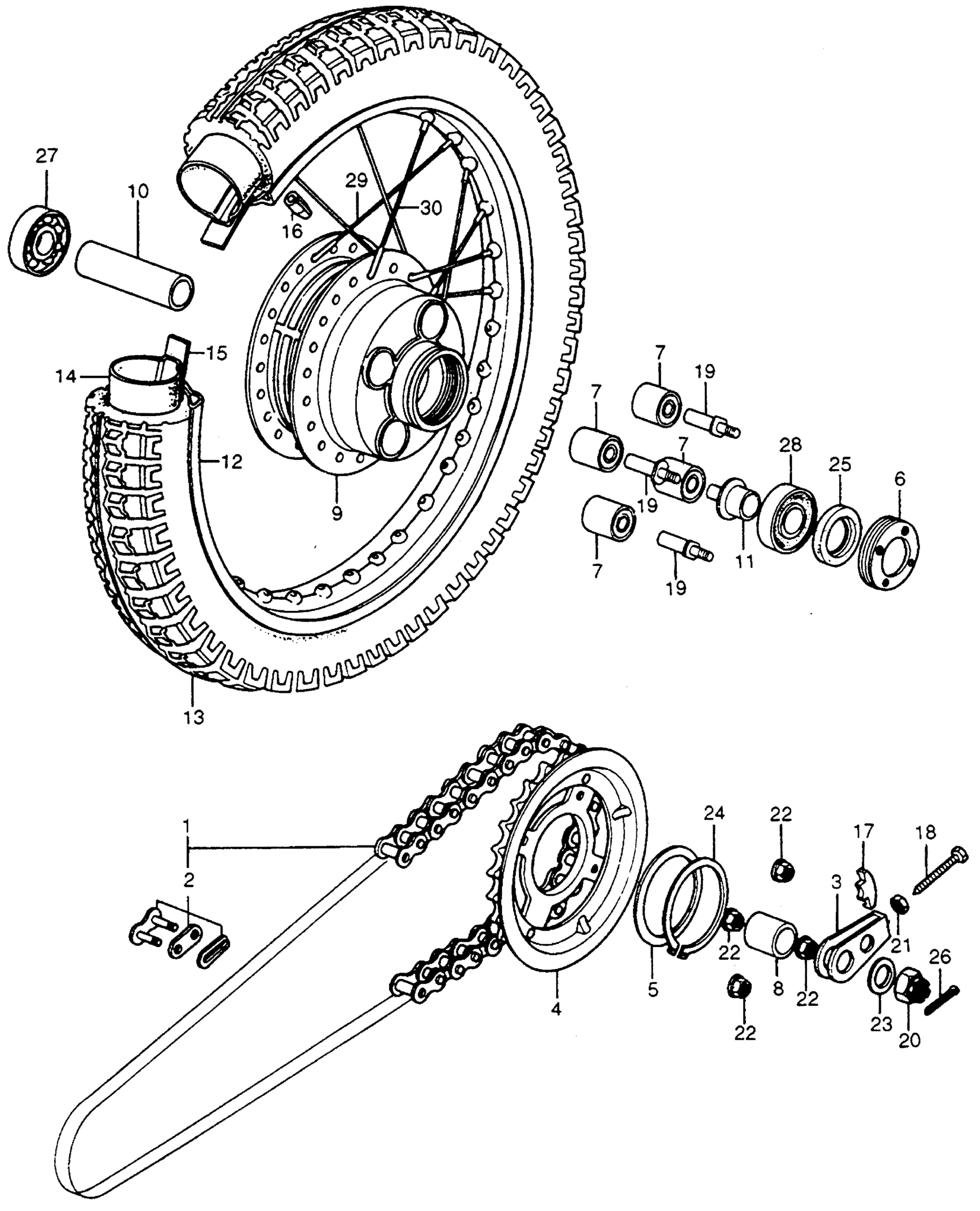

Honda CB400FA (77) SUPER SPORT 400 FOUR, JPN, VIN# CB400F-2100001 TO CB400F-2104166 REAR WHEEL + DRIVEN SPROCKET Diagram

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-333-003.

405W3-413-505

Unavailable

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-333-005.

405W3-413-505

Unavailable

MASTER LINK This part replaces 40531-333-003.

40531-413-951

Unavailable

MASTER LINK (RK50S) (TAKASAGO) (NOT AVAILABLE)

40531-333-005

Unavailable

MASTER LINK This part replaces 40531-413-003.

40531-413-951

Unavailable

MASTER LINK (NOT AVAILABLE)

40531-413-951

Unavailable

ADJUSTER, DRIVE CHAIN This part replaces 40543-312-010.

40543-471-000

Unavailable

ADJUSTER, DRIVE CHAIN

40543-471-000

Unavailable

SPROCKET This part replaces 41200-367-010.

41200-367-505

Unavailable

WASHER (70MM)

41202-286-000

Unavailable

RETAINER, RR. WHEEL BEARING

41231-286-000

$29.11

BUSH, RR. WHEEL DAMPER

41241-286-000

Unavailable

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE) This part replaces 42311-286-000.

42311-349-690

Unavailable

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-349-690

Unavailable

HUB, RR. WHEEL (NOT AVAILABLE)

42601-333-000

Unavailable

COLLAR A, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-286-000

Unavailable

COLLAR B, RR. AXLE DISTANCE (NOT AVAILABLE)

42625-286-000

Unavailable

RIM, RR. WHEEL This part replaces 42701-290-003.

42701-413-671

Unavailable

RIM, RR. WHEEL This part replaces 42701-413-003.

42701-413-671

Unavailable

RIM, RR. WHEEL (NOT AVAILABLE)

42701-413-671

Unavailable

TIRE, RR. (3.50S-18) (NITTO) (NOT AVAILABLE) This part replaces 42711-323-013.

42711-388-671

Unavailable

TIRE, RR. (3.50S-18) (NITTO) (NOT AVAILABLE)

42711-388-671

Unavailable

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC) This part replaces 42712-268-000.

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC) This part replaces 42712-304-003.

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC) This part replaces 42712-307-006.

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC) This part replaces 42712-315-009.

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC) This part replaces 44712-305-003.

42712-KC6-005

Unavailable

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

BALANCER (20G)

44606-283-000

$8.89

BALANCER, WHEEL (15G)

44607-283-000

$8.08

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

BALANCER, WHEEL (5G) (NOT AVAILABLE)

44609-283-000

$3.93

STOPPER, CHAIN ADJUSTER (NOT AVAILABLE)

52136-333-000

Unavailable

BOLT, CHAIN ADJUSTING

90119-283-000

$11.41

BOLT, SPROCKET FIXING

90128-KE5-000

Unavailable

BOLT, SPROCKET FIXING This part replaces 90128-369-000.

90128-KE5-000

Unavailable

NUT, CASTLE (16MM) This part replaces 90305-HA7-670.

90305-HM5-A80

$5.12

NUT, CASTLE (16MM)

90305-HM5-A80

$5.12

NUT, CASTLE (16MM) This part replaces 90305-369-000.

90305-HM5-A80

$5.12

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

NUT, HEX. (10MM)

90308-357-000

$4.85

CIRCLIP (OUTER) (69MM) (NOT AVAILABLE)

90665-286-000

Unavailable

DUST SEAL (30X45X9.5)

91253-286-013

$6.81

PIN, SPLIT (4.0X30)

94201-40300

$1.49

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03

SPOKE B (9X158.5)

97339-52157-10

$4.16

SPOKE B (9X158)

97715-52156-10

$3.78
