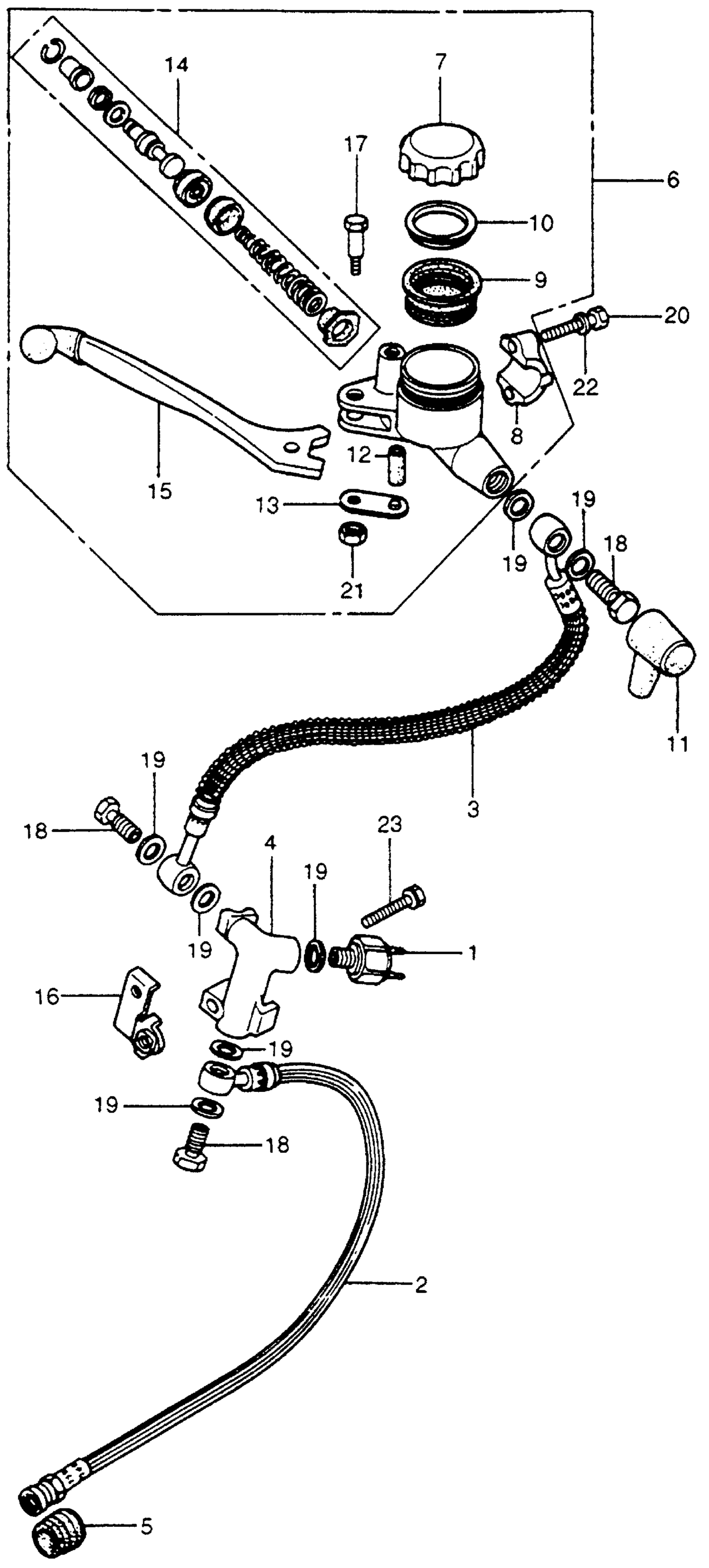

Honda CB400FA (77) SUPER SPORT 400 FOUR, JPN, VIN# CB400F-2100001 TO CB400F-2104166 MASTER CYLINDER + FRONT BRAKE HOSE Diagram

#

Description
Price

1

SWITCH, STOP (NOT AVAILABLE)

35350-300-016

Unavailable

2

HOSE A, FR. BRAKE (NICHIRIN)

45125-300-003

Unavailable

2

HOSE A, FR. BRAKE (NICHIRIN) | Use up to Frame SN 1005027 This part replaces 45125-300-020.

45125-300-003

Unavailable

3

HOSE B, FR. BRAKE (NOT AVAILABLE)

45126-390-003

Unavailable

4

JOINT (THREE-WAY) (NOT AVAILABLE)

45127-323-000

Unavailable

5

GROMMET, BRAKE HOSE

45146-300-000

$4.24

6

MASTER CYLINDER ASSY. (NOT AVAILABLE)

45500-369-671

Unavailable

7

CAP, OIL CUP

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

8

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

8

HOLDER, MASTER CYLINDER This part replaces 45517-300-003.

45517-MA5-671

$29.30

9

DIAPHRAGM

45520-300-000

$9.05

10

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

10

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

11

BOOT, MASTER CYLINDER

45522-300-010

$9.29

12

BUSH, R. HANDLEBAR CONTROL LEVER

45526-341-000

Unavailable

13

PLATE, CONTROL LEVER BUSH SETTING

45527-300-000

Unavailable

14

MASTER CYLINDER SET

45530-377-305

$62.67

15

LEVER, R. HANDLEBAR This part replaces 53170-369-003.

53175-369-003

Unavailable

15

LEVER, R. HANDLEBAR

53175-369-003

Unavailable

16

HOLDER, JOINT (THREE-WAY) (NOT AVAILABLE)

53208-369-000

Unavailable

17

BOLT, HANDLEBAR LEVER PIVOT

90114-300-000

$8.07

18

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

18

BOLT, OIL

90145-300-010

$9.68

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

20

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

21

NUT, HEX. (6MM)

94002-06000-0S

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

BOLT, FLANGE (6X25) This part replaces 95700-06025.

95701-06025-00

$1.80

23

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

23

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

23

BOLT, FLANGE (6X25) This part replaces 95900-06025-00.

95701-06025-00

$1.80
