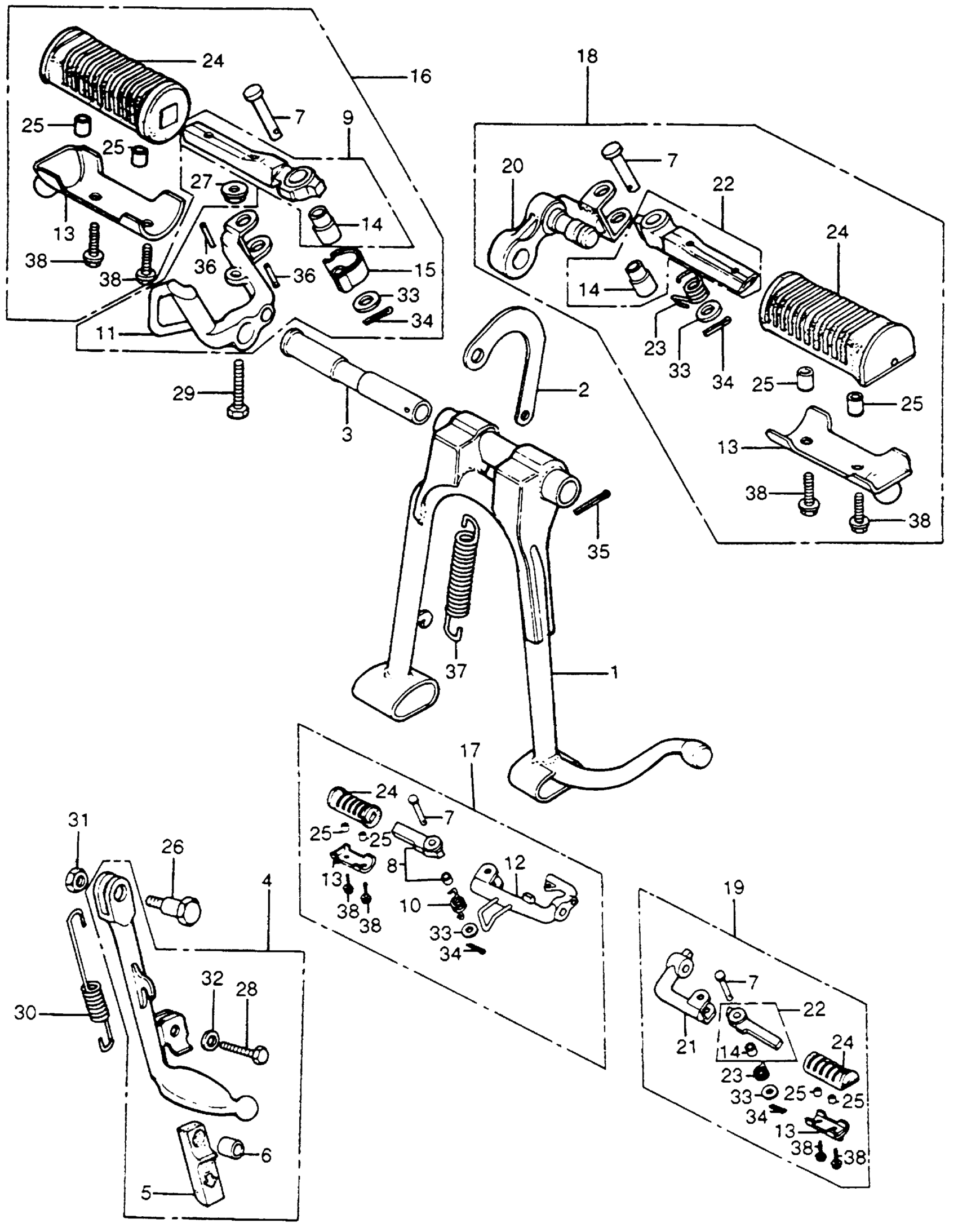

Honda CB400FA (77) SUPER SPORT 400 FOUR, JPN, VIN# CB400F-2100001 TO CB400F-2104166 MAIN STAND + FOOTPEGS + SIDE STAND Diagram

#

Description
Price

1

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-377-000B

Unavailable

2

HOOK, MAIN STAND SPRING (NOT AVAILABLE)

50523-333-000

Unavailable

3

SHAFT, MAIN STAND PIVOT This part replaces 50526-286-000.

50526-399-000

Unavailable

3

SHAFT, MAIN STAND PIVOT

50526-399-000

Unavailable

4

BAR ASSY., SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50540-377-670B

Unavailable

5

RUBBER, STAND

50548-356-700

$10.50

6

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

7

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

7

PIN, STEP BAR JOINT

50603-033-010

$3.30

8

ARM, R. FOOTPEG *NH1* (BLACK) (NOT AVAILABLE)

50616-369-670B

Unavailable

10

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

12

BAR, R. FOOTPEG *NH1* (BLACK) (NOT AVAILABLE)

50618-377-720ZA

Unavailable

13

STOPPER, STEP RUBBER (NOT AVAILABLE) This part replaces 50619-375-000.

50619-388-000

Unavailable

14

PIPE, FOOTPEG (INNER) (NOT AVAILABLE)

50620-310-000

Unavailable

15

SPRING, L. FOOTPEG RETURN (NOT AVAILABLE) This part replaces 50620-377-000.

50620-393-000

Unavailable

16

FOOTPEG ASSY., R. *NH1* (BLACK) (NOT AVAILABLE)

50630-377-000B

Unavailable

17

FOOTPEG ASSY., R. *NH1* (BLACK) (NOT AVAILABLE)

50630-377-720ZA

Unavailable

19

FOOTPEG ASSY., L. *NH1* (BLACK) (NOT AVAILABLE)

50640-377-720ZA

Unavailable

21

BAR, L. FOOTPEG *NH1* (BLACK)

50641-377-720ZA

Unavailable

22

STEP, L. *NH1* (BLACK) (NOT AVAILABLE)

50642-369-670B

Unavailable

23

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

24

RUBBER, FOOTPEG

50661-369-000

Unavailable

25

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

26

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

27

NUT, DRIVEN SPROCKET (TOKAI)

90352-122-003

$4.39

28

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

28

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

29

BOLT, HEX. (6X25) This part replaces 92023-06025.

92025-06025-0A

$1.49

29

BOLT, HEX. (6X25) This part replaces 92023-06025-0A.

92025-06025-0A

$1.49

29

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

30

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

30

SPRING D, SIDE STAND

95014-72402

$2.92

31

NUT, HEX. (10MM)

94030-10000

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

33

WASHER, PLAIN (8MM)

94101-08000

$1.49

34

PIN, COTTER (1.6X25)

94201-16250

$1.49

35

PIN, SPLIT (2.5X30)

94201-25300

$1.49

36

PIN, SPRING (4X16)

94305-40163

Unavailable

37

SPRING G, MAIN STAND This part replaces 95014-71701.

95014-71702

$4.08

37

SPRING G, MAIN STAND

95014-71702

$4.08

38

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018.

95701-06018-00

$1.62

38

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-0A.

95701-06018-00

$1.62

38

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

38

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
