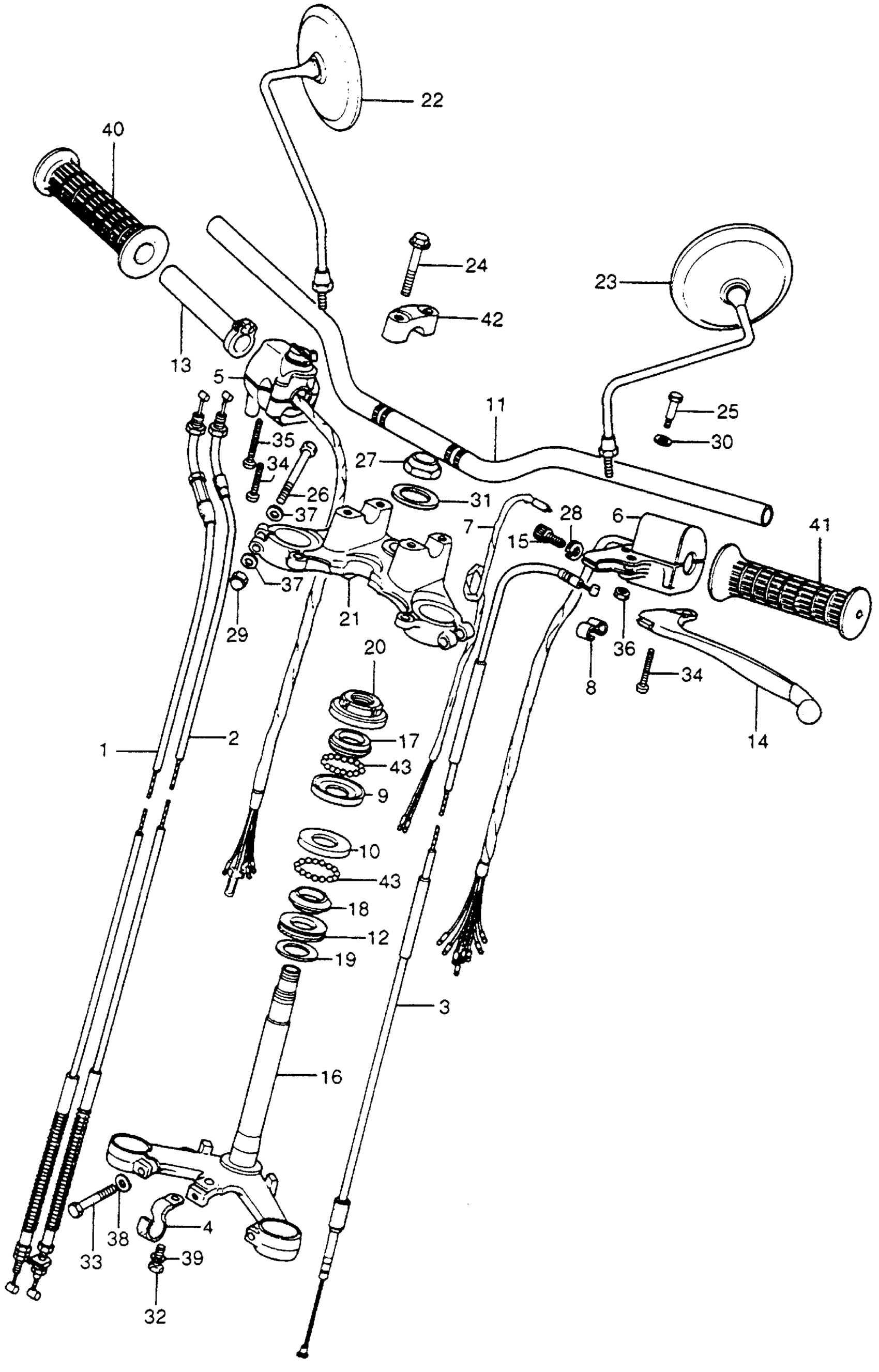

Honda CB400FA (77) SUPER SPORT 400 FOUR, JPN, VIN# CB400F-2100001 TO CB400F-2104166 HANDLEBAR + STEERING STEM + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-333-405

Unavailable

1

CABLE, THROTTLE This part replaces 17910-377-710.

17910-333-405

Unavailable

2

CABLE B, THROTTLE (NOT AVAILABLE)

17920-377-710

Unavailable

3

CABLE, CLUTCH

22870-377-710

Unavailable

4

CLIP D, WIRE HARNESS

32123-375-000

Unavailable

5

SWITCH ASSY., STARTER STOP

35130-377-P00

Unavailable

5

SWITCH ASSY., STARTER STOP This part replaces 35130-377-670.

35130-377-P00

Unavailable

6

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-377-671

Unavailable

7

SWITCH ASSY., FR. STOP

35340-329-003

$17.46

7

SWITCH ASSY., FR. STOP This part replaces 35360-341-000.

35340-329-003

$17.46

8

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-370-000

Unavailable

9

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

9

RACE, STEERING TOP BALL

50301-268-010

$22.12

9

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

10

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

10

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

10

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$21.73

11

HANDLEBAR (NOT AVAILABLE)

53100-377-710

Unavailable

12

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

12

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

13

PIPE, THROTTLE GRIP

53141-300-010

$20.93

14

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

14

LEVER, L. HANDLE

53178-369-700

$28.35

14

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

14

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

14

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$28.35

15

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

16

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-377-010B

Unavailable

17

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

17

RACE, STEERING TOP CONE

53211-268-010

$26.89

17

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$26.89

18

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

18

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

18

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

19

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

20

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

21

BRIDGE, FORK TOP | Use from Frame SN 1023115 This part replaces 53231-377-010.

53231-377-020

Unavailable

22

MIRROR, R. This part replaces 88100-333-004.

88110-333-611

$37.14

22

MIRROR, R.

88110-333-611

$37.14

23

MIRROR, L. This part replaces 88120-333-004.

88120-333-611

Unavailable

23

MIRROR, L. This part replaces 88120-333-610.

88120-333-611

Unavailable

23

MIRROR, L.

88120-333-611

Unavailable

24

BOLT, FLANGE (8X36)

90111-362-000

$4.80

25

BOLT, HANDLE LEVER PIVOT

90114-310-000

$4.90

26

BOLT, FLANGE (7X54) | Use from Frame SN 1023115

90155-369-000

$6.01

27

NUT, STEERING STEM This part replaces 90304-323-670.

90304-415-000

$19.83

27

NUT, STEERING STEM

90304-415-000

$19.83

27

NUT, STEERING STEM This part replaces 95020-11300.

90304-415-000

$19.83

28

NUT, FIXING

90321-315-670

$7.31

28

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

29

NUT, CAP (7MM) (NOT AVAILABLE) | Use from Frame SN 1023115 This part replaces 90360-375-000.

90360-425-870

Unavailable

30

WASHER (7X12)

90501-310-000

$1.74

31

WASHER, STEERING STEM

90503-283-000

$4.37

32

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

32

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

33

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

33

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

34

SCREW, PAN (5X25)

93500-05025-0A

$1.49

35

SCREW, PAN (5X32)

93500-05032-0A

$1.49

36

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM)

94001-06200-0S

$1.49

37

WASHER, PLAIN (8MM)

94101-08000

$1.49

38

WASHER, PLAIN (8MM)

94101-08000

$1.49

39

WASHER, PLAIN (8MM)

94102-08000

$1.49

40

GRIP D, R. HANDLE

95011-14100

$8.55

41

GRIP, L. HANDLEBAR

95011-14200

$14.81

42

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

43

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
