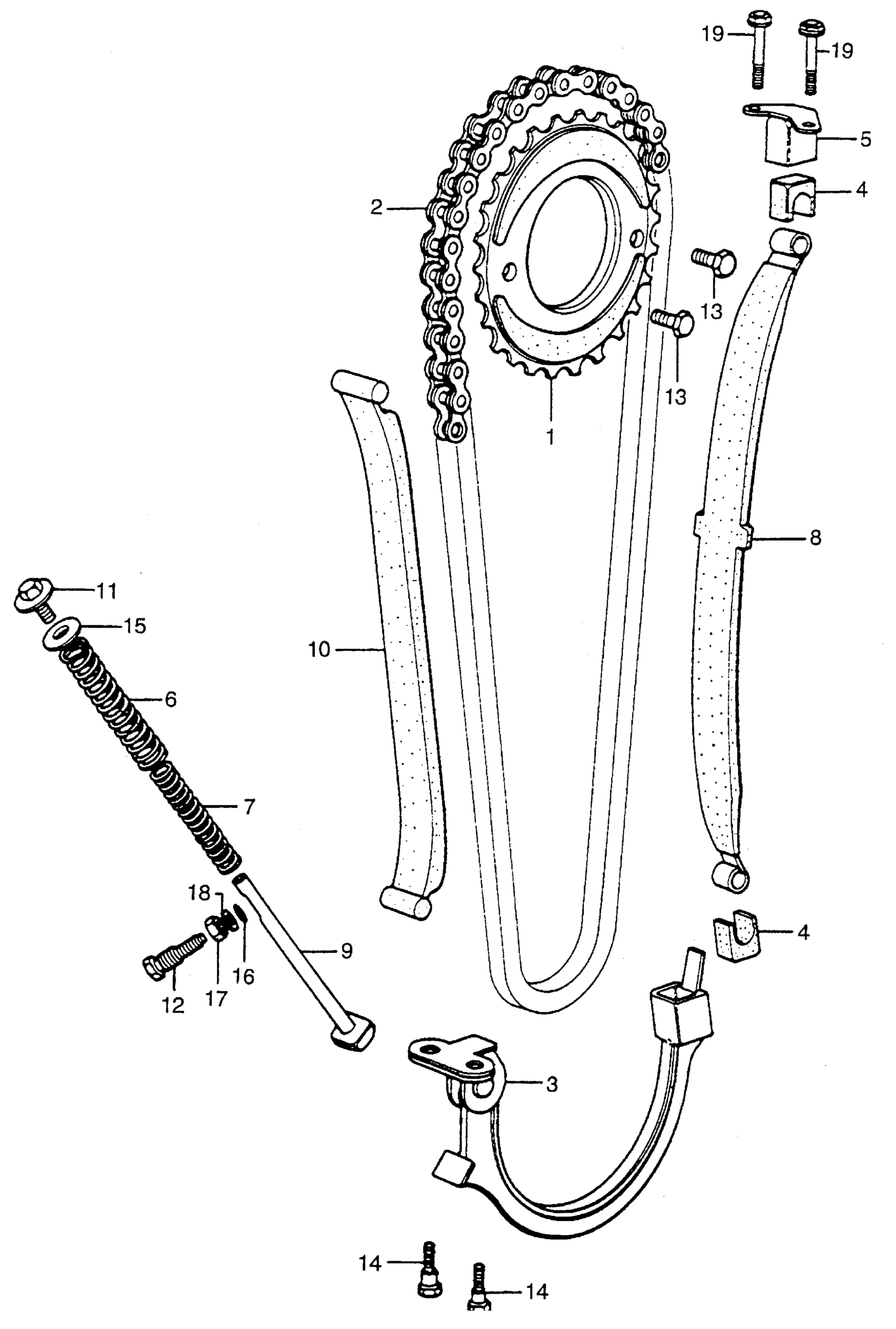

Honda CB400FA (77) SUPER SPORT 400 FOUR, JPN, VIN# CB400F-2100001 TO CB400F-2104166 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (32T) (NOT AVAILABLE)

14321-377-700

Unavailable

2

CHAIN, CAM

14401-333-003

Unavailable

3

ARM, CAM CHAIN TENSIONER (NOT AVAILABLE)

14500-333-020

Unavailable

4

DAMPER, CAM CHAIN TENSIONER

14501-323-000

Unavailable

5

HOLDER, CAM CHAIN TENSIONER (NOT AVAILABLE)

14530-333-000

Unavailable

6

SPRING, CAM CHAIN TENSIONER (OUTER) (NOT AVAILABLE)

14541-333-020

Unavailable

7

SPRING, CAM CHAIN TENSIONER (INNER) (NOT AVAILABLE)

14543-333-000

Unavailable

8

SLIPPER, CAM CHAIN TENSIONER

14545-333-000

Unavailable

9

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14550-333-000

Unavailable

10

GUIDE, CAM CHAIN

14620-333-000

Unavailable

11

BOLT, OIL CHECK (NOT AVAILABLE)

25911-500-000

Unavailable

12

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90016-286-000

Unavailable

13

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

13

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

14

BOLT, KNOCK (6X14) (NOT AVAILABLE)

90081-312-000

Unavailable

15

WASHER, SEALING (8MM)

90474-333-000

$3.30

16

O-RING (6X1.7) (ARAI)

91317-171-003

$2.92

16

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.92

17

NUT, HEX. (8MM)

94002-08000-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

BOLT, FLANGE (6X16) This part replaces 95700-06016.

95701-06016-00

$1.55

19

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

19

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
