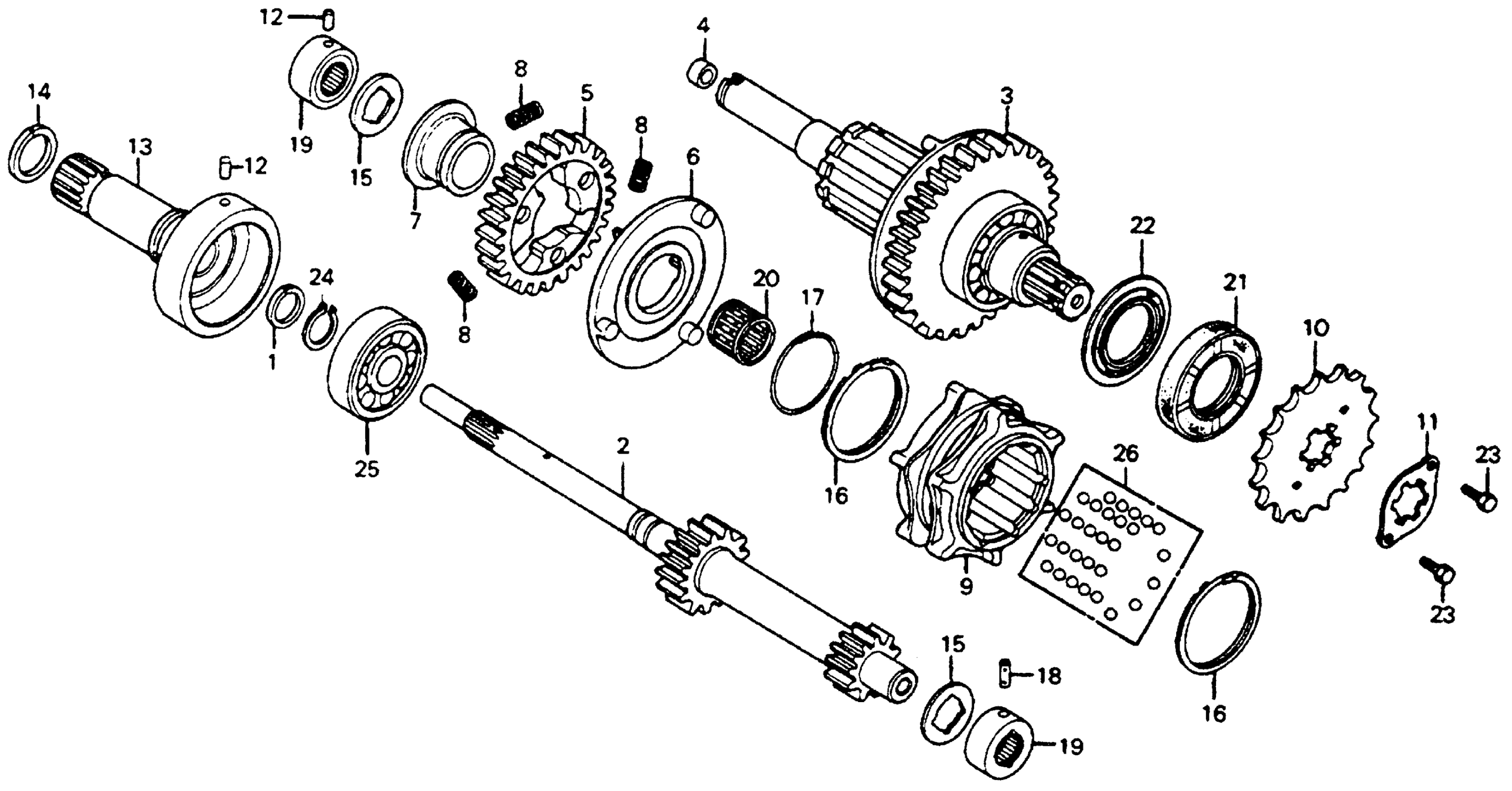

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 TRANSMISSION Diagram

#

Description
Price

1

RING, SEALING (20MM) (NIPPON) (NOT AVAILABLE)

23122-393-003

Unavailable

2

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23211-417-010

Unavailable

3

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-417-000

Unavailable

4

COLLAR (13X4.8) (NOT AVAILABLE)

23225-417-000

Unavailable

5

GEAR, COUNTERSHAFT TOP (NOT AVAILABLE)

23441-417-000

Unavailable

6

PLATE, TOP GEAR SHIFTER (NOT AVAILABLE)

23445-417-000

Unavailable

7

CENTER, TOP GEAR (NOT AVAILABLE)

23447-417-000

Unavailable

8

SPRING, TOP GEAR DAMPER (NOT AVAILABLE)

23448-417-000

Unavailable

9

GEAR, SHIFTER (NOT AVAILABLE)

23611-417-000

Unavailable

10

SPROCKET, DRIVE (16T)

23801-344-000

Unavailable

11

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

12

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

13

SHAFT, TORQUE CONVERTER STATOR

25150-417-020

Unavailable

14

RING, OIL SEAL (30MM) (NOT AVAILABLE)

25156-393-003

Unavailable

15

WASHER, THRUST (20X33.5X2) (NOT AVAILABLE)

90403-393-000

Unavailable

16

RING, DOUBLE COIL (INNER) (52MM) (NOT AVAILABLE)

90613-417-000

Unavailable

17

CLIP (42MM) (NOT AVAILABLE)

90616-417-000

Unavailable

18

PIN, BEARING SETTING (NOT AVAILABLE)

90705-413-000

Unavailable

19

BEARING, NEEDLE (20MM) (TOYO) (NOT AVAILABLE) | Use up to Engine SN 2009061

91022-377-008

Unavailable

19

BEARING, NEEDLE (20MM) | Use from Engine SN 2009062

91022-415-008

$52.13

20

BEARING, NEEDLE (25X30X20) (TOYO)

91106-ME5-008

$30.34

20

BEARING, NEEDLE (25X30X20) (TOYO) This part replaces 91108-634-961.

91106-ME5-008

$30.34

21

OIL SEAL (34X63X12)

91206-413-003

Unavailable

22

OIL SEAL (34X66)

91211-393-003

$14.10

22

OIL SEAL (34X66) This part replaces 91211-393-005.

91211-393-003

$14.10

23

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

24

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

25

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

26

BALL, STEEL (#7) (7/32)

96211-07000

$1.49
