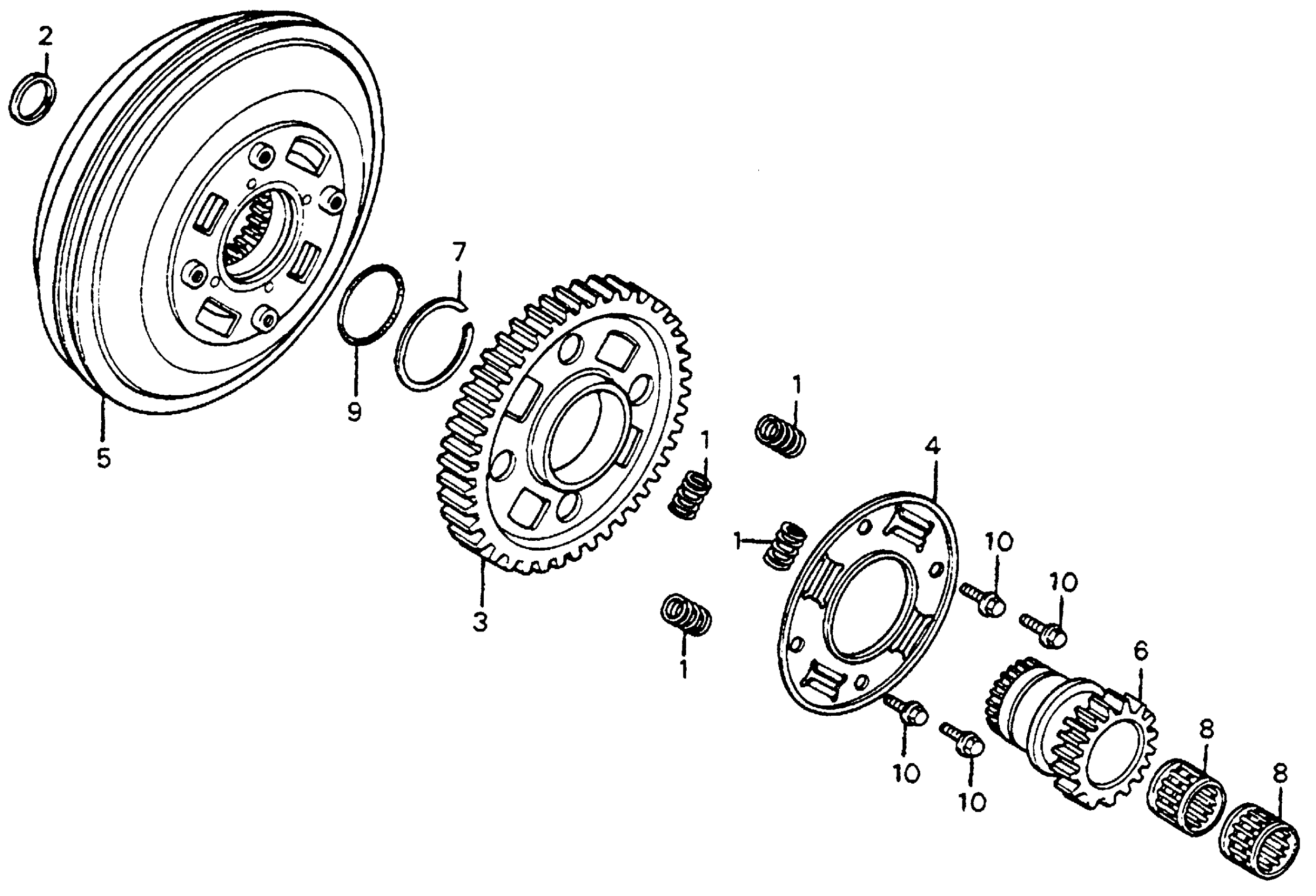

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 TORQUE CONVERTER Diagram

SPRING, PRIMARY DAMPER (NOT AVAILABLE)

23116-417-000

Unavailable

RING, SEALING (24MM)

23122-639-003

Unavailable

GEAR, PRIMARY DRIVEN (NOT AVAILABLE)

23131-417-000

Unavailable

PLATE, PRIMARY GEAR SIDE (NOT AVAILABLE)

23132-417-000

Unavailable

CONVERTER, TORQUE (NOT AVAILABLE)

26200-417-010

Unavailable

GEAR, KICK DRIVEN

28235-417-010

Unavailable

CIRCLIP (OUTER) (40MM) (NOT AVAILABLE)

90602-371-000

Unavailable

BEARING, NEEDLE (25X30X20) (TOYO)

91106-ME5-008

$30.34

BEARING, NEEDLE (25X30X20) (TOYO) This part replaces 91108-634-961.

91106-ME5-008

$30.34

O-RING (33.5X2.3) (NOT AVAILABLE) This part replaces 91330-417-000.

91330-417-003

Unavailable

O-RING (33.5X2.3) (NOT AVAILABLE)

91330-417-003

Unavailable

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
