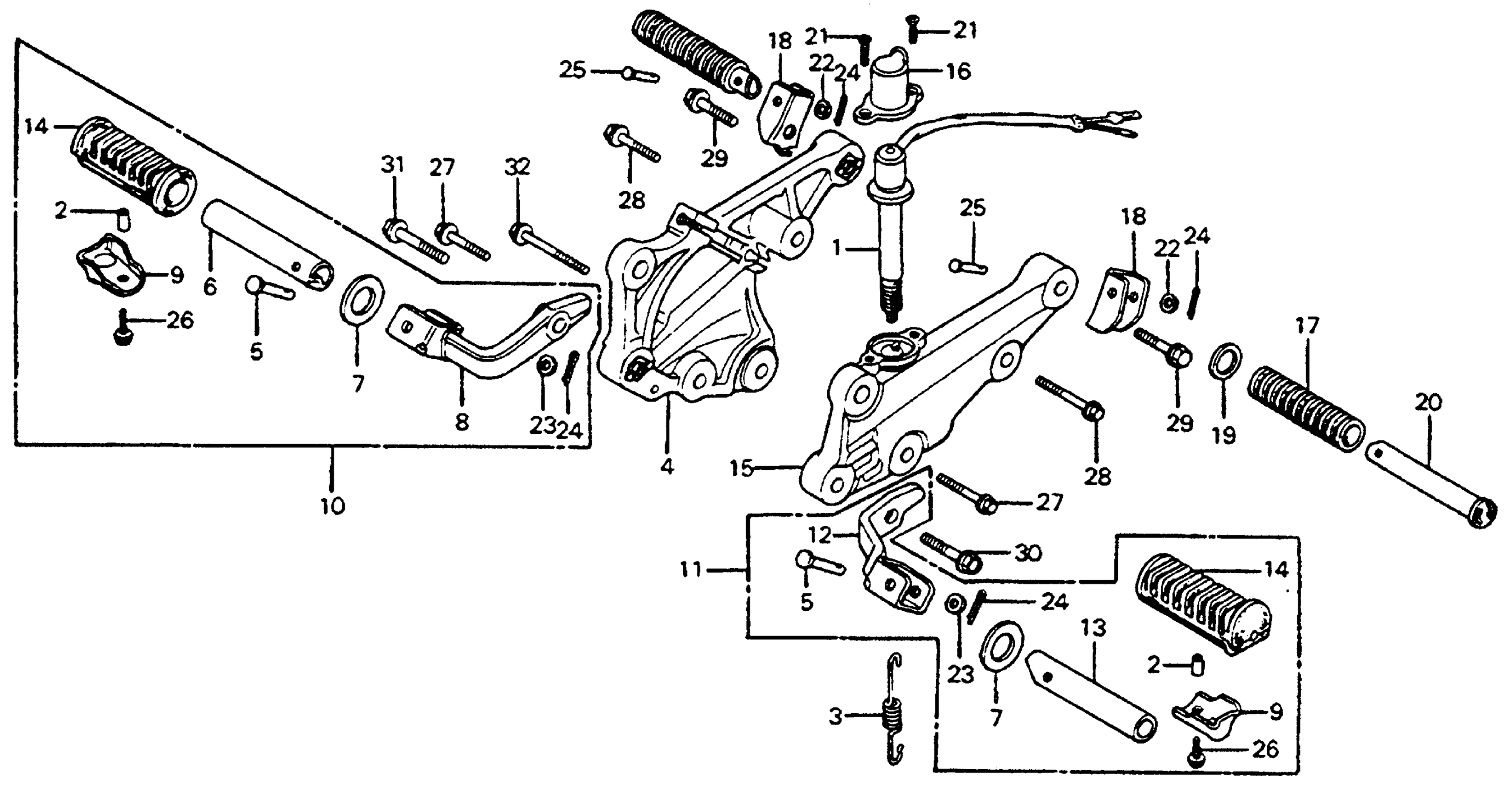

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 STEP Diagram

#

Description
Price

1

SWITCH ASSY., STAND

35700-417-003

Unavailable

2

COLLAR, INSTRUMENT SETTING

37243-323-000

Unavailable

3

SPRING, SIDE STAND SWITCH (NOT AVAILABLE)

50533-417-000

Unavailable

4

HOLDER, R. FOOTPEG (NOT AVAILABLE)

50600-417-000

Unavailable

5

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$2.98

5

PIN, STEP BAR JOINT

50603-033-010

$2.98

6

BAR, R. FOOTPEG

50612-413-000

Unavailable

7

WASHER, MAIN FOOTPEG

50614-413-000

Unavailable

8

ARM, R. STEP (NOT AVAILABLE)

50615-417-000

Unavailable

9

STOPPER, STEP RUBBER

50619-413-000

Unavailable

10

STEP ASSY., R. (NOT AVAILABLE)

50630-417-000

Unavailable

11

FOOTPEG ASSY., L. (NOT AVAILABLE)

50640-413-000

Unavailable

12

ARM, L. FOOTPEG (NOT AVAILABLE)

50641-413-000

Unavailable

13

BAR, L. FOOTPEG (NOT AVAILABLE)

50643-413-000

Unavailable

14

RUBBER, FOOTPEG This part replaces 50661-413-000.

50661-426-000

$12.45

14

RUBBER, FOOTPEG

50661-426-000

$12.45

15

HOLDER, L. STEP

50700-417-000

Unavailable

16

CAP, STAND SWITCH (NOT AVAILABLE)

50702-417-000

Unavailable

17

RUBBER, PILLION FOOTPEG | Use from Frame SN 2011976 This part replaces 50710-377-000.

50716-371-660

$12.78

17

RUBBER, PILLION FOOTPEG | Use up to Frame SN 2011975

50710-405-000

Unavailable

17

RUBBER, PILLION FOOTPEG | Use from Frame SN 2011976

50716-371-660

$12.78

18

BRACKET, PILLION STEP | Use up to Frame SN 2011975

50711-405-000

Unavailable

18

BRACKET, PILLION FOOTPEG | Use from Frame SN 2011976 to 2058560 This part replaces 50711-415-000.

50711-415-010

Unavailable

18

BRACKET, PILLION FOOTPEG | Use from Frame SN 2011976 to 2058560

50711-415-010

Unavailable

18

BRACKET, PILLION FOOTPEG | Use from Frame SN 2011976

50711-415-010

Unavailable

19

WASHER, PILLION FOOTPEG | Use up to Frame SN 2011975

50712-405-000

$3.03

19

WASHER, PILLION FOOTPEG | Use from Frame SN 2011976

50712-413-000

$3.22

20

BAR, PILLION FOOTPEG | Use up to Frame SN 2011975

50715-405-000

$24.41

20

BAR, PILLION STEP (COO) | Use from Frame SN 2011976 This part replaces 50715-413-000.

50715-413-305

$15.98

21

SCREW, OVAL (5X12)

93700-05012-0G

$0.91

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM)

94101-06800

Unavailable

23

WASHER, PLAIN (8MM)

94101-08000

$0.75

24

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.94

24

PIN, COTTER (1.6X25)

94201-16250

$0.94

25

PIN A, PILLION STEP | Use up to Frame SN 2011975

95015-81000

$2.01

25

PIN B, PILLION FOOTPEG | Use from Frame SN 2011976

95015-82000

$2.19

26

BOLT, FLANGE (6X18) This part replaces 95700-06018-08.

95701-06018-08

$1.48

26

BOLT, FLANGE (6X18)

95701-06018-08

$1.48

27

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.09

27

BOLT, FLANGE (8X35)

95701-08035-00

$2.09

28

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.33

28

BOLT, FLANGE (8X45)

95701-08045-00

$1.33

29

BOLT, FLANGE (10X32) This part replaces 95700-10032-00.

95701-10032-00

$1.32

29

BOLT, FLANGE (10X32)

95701-10032-00

$1.32

30

BOLT, FLANGE (10X40) This part replaces 95700-10040-00.

95701-10040-00

$1.38

30

BOLT, FLANGE (10X40)

95701-10040-00

$1.38

31

BOLT, FLANGE (10X45) This part replaces 95700-10045-00.

95701-10045-00

$2.71

31

BOLT, FLANGE (10X45)

95701-10045-00

$2.71

32

BOLT, FLANGE (8X70)

95800-08070-00

Unavailable
