Partiron

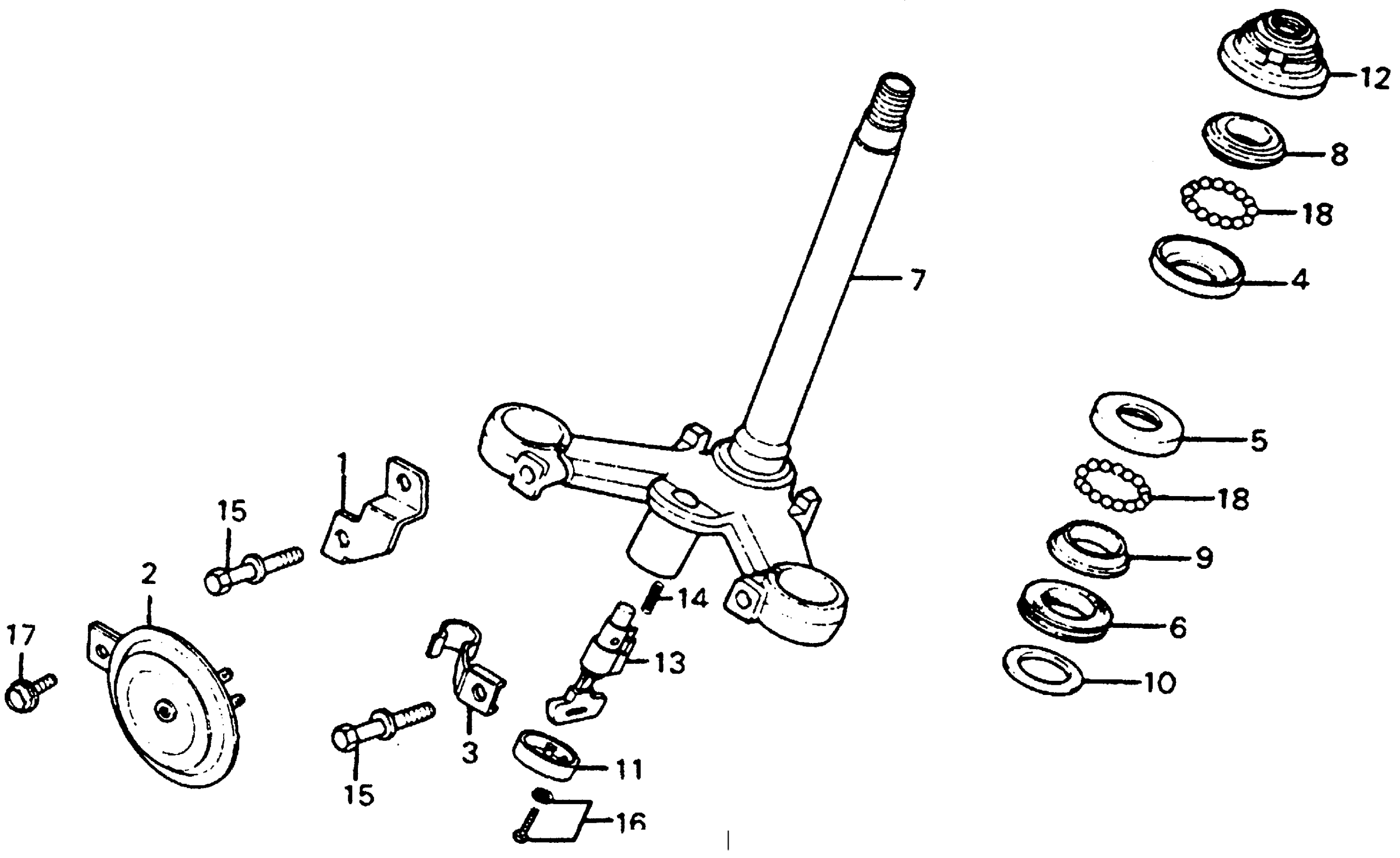

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 STEERING STEM + HORN Diagram

#

Description
Price

1

STAY, HORN (NOT AVAILABLE)

38102-413-000

Unavailable

2

HORN (HIGH) This part replaces 38110-GJ1-731.

38110-KY0-621

Unavailable

2

HORN (HIGH) This part replaces 38110-KE8-601.

38110-KY0-621

Unavailable

2

HORN (HIGH)

38110-KY0-621

Unavailable

2

HORN (HIGH) This part replaces 38110-413-000.

38110-KY0-621

Unavailable

3

CLAMP B, BRAKE HOSE

45418-413-000

Unavailable

4

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

4

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

5

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

5

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

6

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

6

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

7

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-413-000ZA

Unavailable

8

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

8

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

9

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

9

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

10

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

11

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-391-670

Unavailable

12

THREAD, HANDLEBAR TOP (NOT AVAILABLE)

53220-413-000

Unavailable

13

LOCK, HANDLEBAR (NOT AVAILABLE)

53600-382-671

Unavailable

14

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

15

BOLT-WASHER (8X40)

93481-08040-00

Unavailable

16

SCREW-WASHER (3X12) (NOT AVAILABLE)

93891-03012-00

Unavailable

17

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

17

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

18

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
