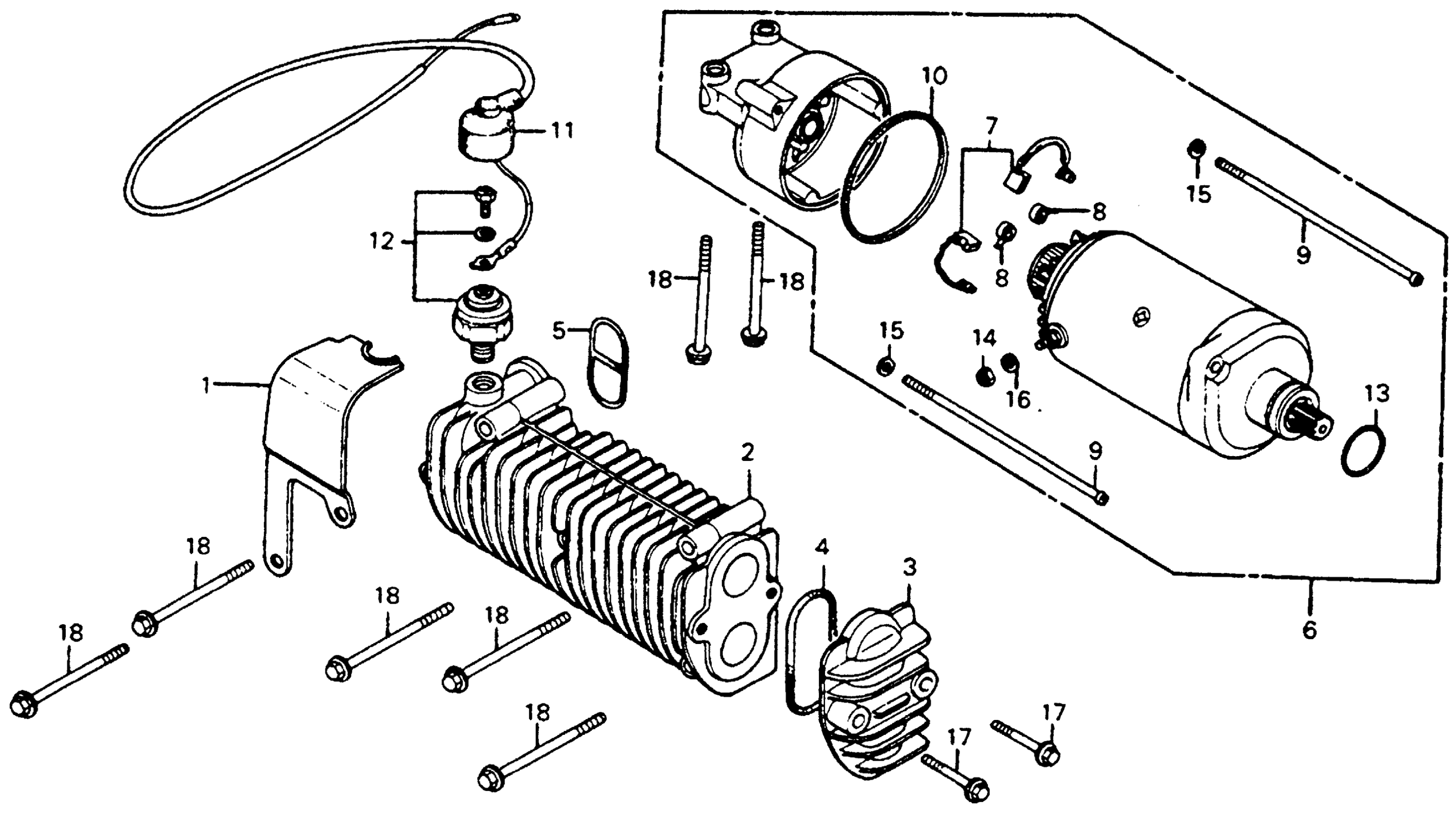

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 STARTING MOTOR + OIL COOLER Diagram

#

Description
Price

1

PROTECTOR, PRESSURE SWITCH

11711-417-000

Unavailable

2

COOLER, OIL

15811-417-000

Unavailable

3

CAP, OIL COOLER

15812-417-000

Unavailable

4

GASKET, OIL COOLER CAP (NOT AVAILABLE)

15911-417-000

Unavailable

5

GASKET, OIL COOLER (NOT AVAILABLE)

15912-417-000

Unavailable

6

STARTER MOTOR ASSY. This part replaces 31200-413-780.

31200-413-405

Unavailable

7

BRUSH SET (MITSUBA)

31201-230-174

Unavailable

8

SPRING, BRUSH This part replaces 31204-225-154.

31204-230-174

$4.64

8

SPRING, BRUSH

31204-230-174

$4.64

9

BOLT, STARTER MOTOR COVER

31205-413-780

Unavailable

10

O-RING (60X1.4)

31206-402-008

Unavailable

11

WIRE HARNESS, OIL PRESSURE

32180-417-000

Unavailable

12

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-333-014.

37240-P13-013

$44.49

12

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$44.49

13

O-RING (24.4X3.1) This part replaces 91309-300-000.

91312-MG7-003

$6.34

13

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

13

O-RING (24.4X3.1)

91312-MG7-003

$6.34

14

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

14

NUT, HEX. (6MM)

94002-06000-0S

$1.49

15

WASHER, SPRING (5MM)

94111-05000

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49

17

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

17

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

18

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

18

BOLT, FLANGE (6X60)

95701-06060-00

$1.49
