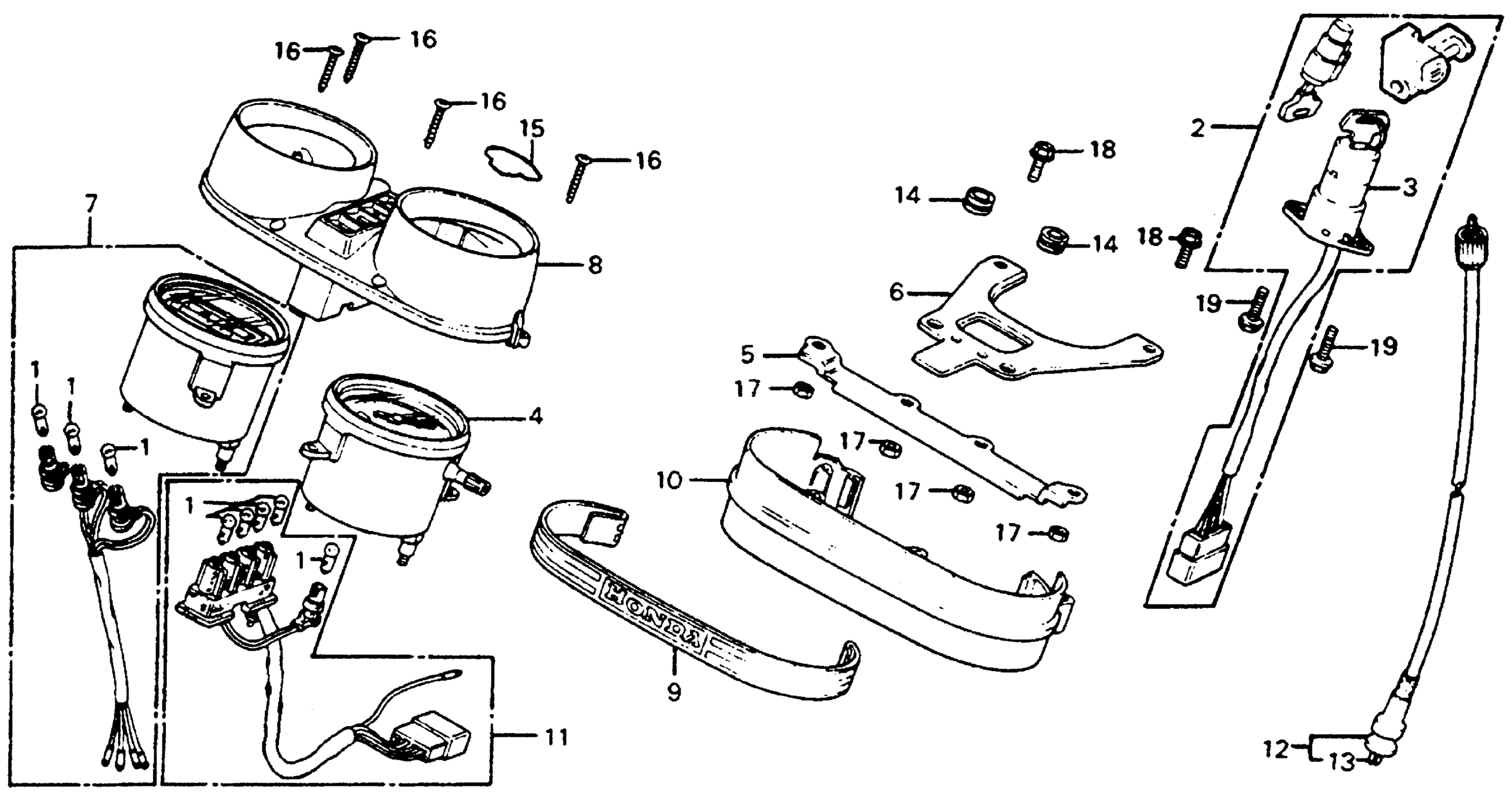

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 SPEEDOMETER + KEY SET Diagram

#

Description
Price

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

2

LOCK SET This part replaces 35010-413-000.

35010-413-010

Unavailable

2

LOCK SET

35010-413-010

Unavailable

3

SWITCH ASSY., COMBINATION

35100-413-007

Unavailable

4

SPEEDOMETER ASSY. (MPH/KPH) (NOT AVAILABLE)

37200-417-671

Unavailable

5

BRACKET, INSTRUMENT

37211-413-008

Unavailable

6

STAY, INSTRUMENT SETTING (NOT AVAILABLE)

37212-413-008

Unavailable

7

INDICATOR ASSY. (NOT AVAILABLE)

37600-417-672

Unavailable

8

CASE, PILOT (UPPER) (NOT AVAILABLE) This part replaces 37610-417-008.

37610-417-018

Unavailable

8

CASE, PILOT (UPPER) (NOT AVAILABLE)

37610-417-018

Unavailable

9

EMBLEM, INSTRUMENT (UPPER) (NOT AVAILABLE)

37611-413-008

Unavailable

10

CASE, PILOT (LOWER) (NOT AVAILABLE)

37617-413-008

Unavailable

11

WIRE, PILOT (NOT AVAILABLE)

37619-417-008

Unavailable

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-323-000.

44830-425-870

$29.28

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-329-000.

44830-425-870

$29.28

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-346-000.

44830-425-870

$29.28

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-390-000.

44830-425-870

$29.28

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-413-000.

44830-425-870

$29.28

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-413-010.

44830-425-870

$29.28

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-415-000.

44830-425-870

$29.28

12

CABLE ASSY., SPEEDOMETER

44830-425-870

$29.28

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-463-000.

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-323-000.

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-329-000.

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-346-000.

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-369-000.

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-375-000.

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-390-000.

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-413-000.

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-413-010.

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-415-000.

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-446-000.

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-463-000.

44830-425-870

$29.28

13

CABLE ASSY., SPEEDOMETER This part replaces 44831-323-000.

44830-425-870

$29.28

14

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

15

LABEL, BREAK IN CAUTION | Use from Frame SN 2050001

87523-413-710

Unavailable

16

SCREW, TAPPING (4X25)

93903-24680

Unavailable

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

18

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

19

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

19

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
