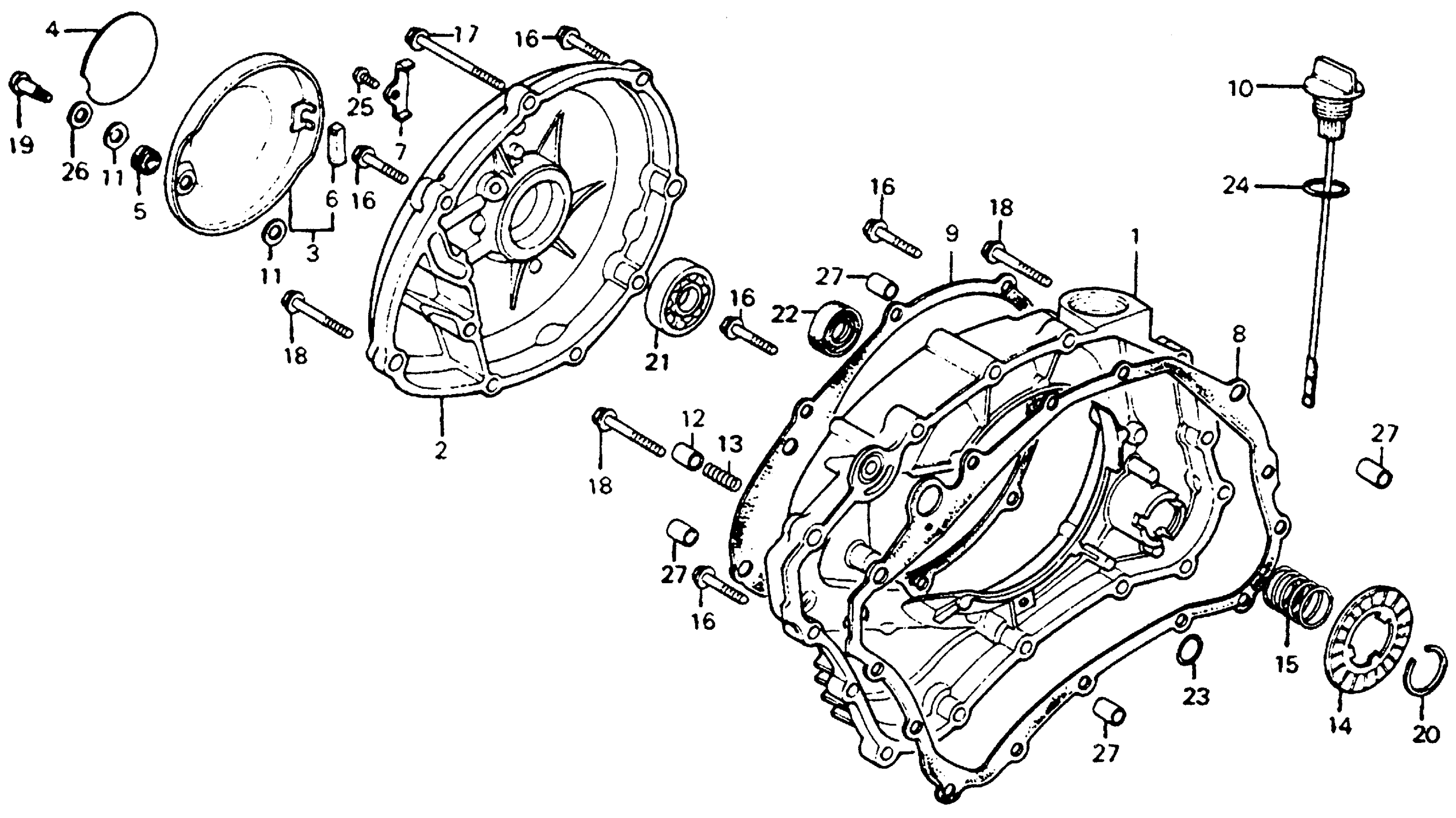

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 RIGHT CRANKCASE COVER + TORQUE CONVERTER CASE Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11331-417-000

Unavailable

2

CASE, TORQUE CONVERTER (NOT AVAILABLE)

11340-417-000

Unavailable

3

PROTECTOR, CASE (NOT AVAILABLE)

11353-417-000

Unavailable

4

MARK, PROTECTOR (NOT AVAILABLE)

11354-417-000

Unavailable

5

INSULATOR, PROTECTOR (NOT AVAILABLE)

11355-417-000

Unavailable

6

RUBBER, STAY (NOT AVAILABLE)

11356-417-300

Unavailable

7

PLATE, TORQUE CONVERTER PROTECTOR (NOT AVAILABLE)

11357-417-000

Unavailable

8

GASKET, R. COVER This part replaces 11393-417-000.

11393-417-306

Unavailable

9

GASKET This part replaces 11394-417-000.

11394-417-306

Unavailable

10

DIPSTICK, OIL (NOT AVAILABLE)

15650-417-000

Unavailable

11

GASKET, PROTECTOR

18292-167-890

$1.80

11

GASKET, PROTECTOR This part replaces 18292-290-000.

18292-167-890

$1.80

11

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.80

12

VALVE, TORQUE CONVERTER FLUID CHECK (NOT AVAILABLE)

27611-393-000

Unavailable

13

SPRING, TORQUE CONVERTER FLUID VALVE

27621-393-000

Unavailable

14

DISK, KICK FRICTION

28241-417-000

Unavailable

15

SPRING, FRICTION DAMPER (NOT AVAILABLE)

28242-417-000

Unavailable

16

BOLT, FLANGE (6X28) This part replaces 90006-413-000.

96001-06028-00

Unavailable

16

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

Unavailable

16

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

17

BOLT, FLANGE (6X80) This part replaces 90006-417-000.

96001-06080-07

Unavailable

17

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

Unavailable

17

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

Unavailable

17

BOLT, FLANGE (6X80)

96001-06080-00

$2.01

17

BOLT, FLANGE (6X80)

96001-06080-07

Unavailable

18

BOLT, FLANGE (6X35) This part replaces 90006-HA7-670.

96001-06035-00

$1.28

18

BOLT, FLANGE (6X35) This part replaces 90007-413-000.

96001-06035-00

$1.28

18

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.28

18

BOLT, FLANGE (6X35)

96001-06035-00

$1.28

19

SCREW, L. HANDLEBAR LEVER PIVOT This part replaces 90114-063-000.

90116-GF8-000

$3.33

19

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.33

20

CIRCLIP (INNER) (30MM) (NOT AVAILABLE)

90603-417-000

Unavailable

21

BEARING, BALL (16005) (NTN CORP.)

91008-374-003

$13.49

22

OIL SEAL (18X29X7)

91204-286-003

$4.02

22

OIL SEAL (18X29X7) This part replaces 91204-286-005.

91204-286-003

$4.02

23

O-RING (12X2.5)

91301-706-000

Unavailable

24

O-RING (23X2)

91354-371-000

$2.96

24

O-RING (23X2) This part replaces 91354-702-000.

91354-371-000

$2.96

25

SCREW, PAN (5X8)

93500-05008-0H

$0.83

26

WASHER, PLAIN (6MM)

94101-06200

$0.62

27

PIN A, DOWEL (8X14)

94301-08140

$2.04
