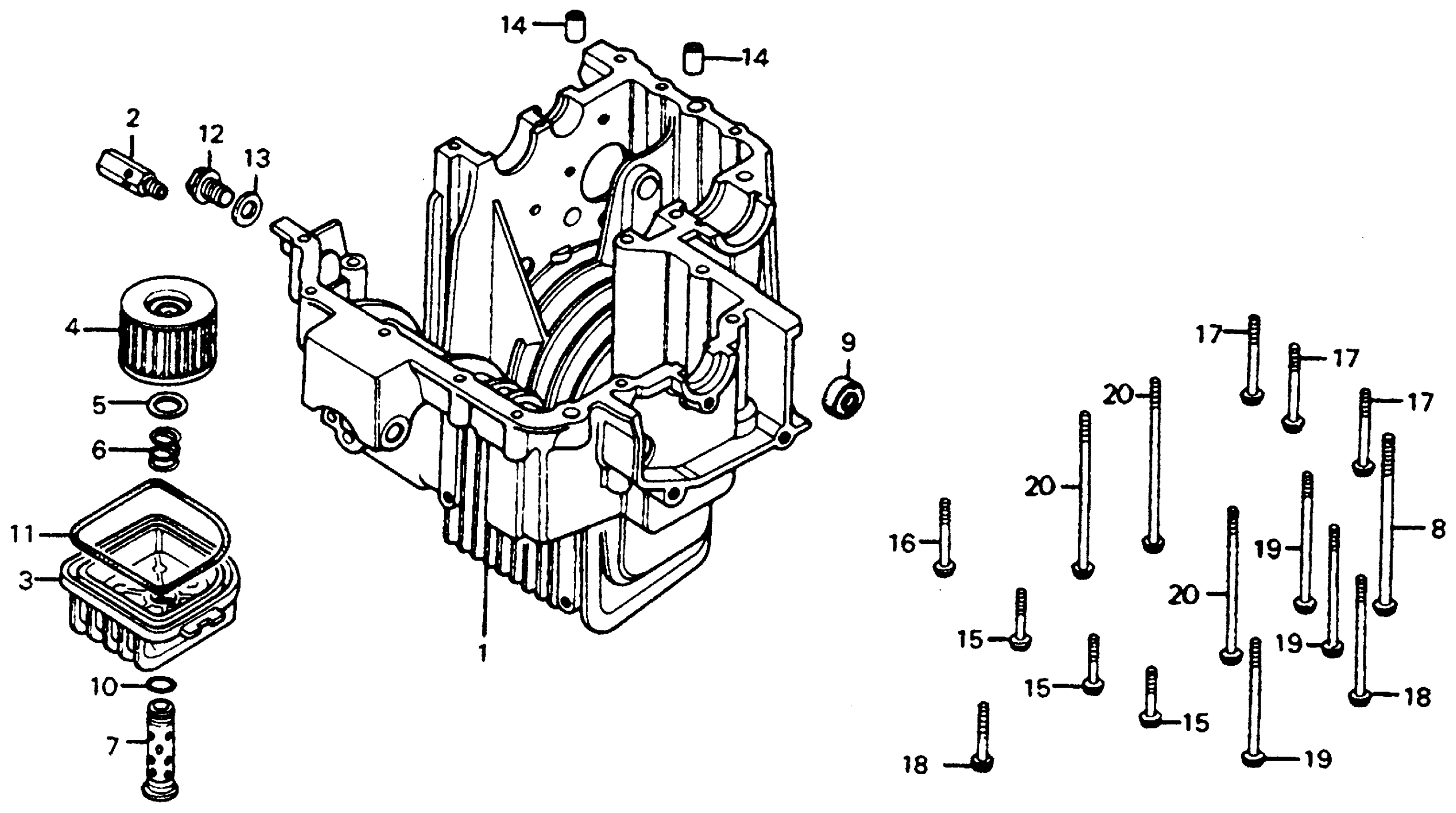

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 LOWER CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (LOWER) | Use up to Engine SN 2057122

11200-417-000

Unavailable

1

CRANKCASE (LOWER) (NOT AVAILABLE) | Use from Engine SN 2057123 This part replaces 11200-417-010.

11200-417-020

Unavailable

1

CRANKCASE (LOWER) (NOT AVAILABLE) | Use from Engine SN 2057123

11200-417-020

Unavailable

2

VALVE ASSY., RELIEF

15220-413-020

Unavailable

3

CASE, OIL FILTER (NOT AVAILABLE)

15411-413-000

Unavailable

4

ELEMENT, OIL FILTER This part replaces 154A1-MA6-000.

154A1-413-505

$9.47

4

ELEMENT, OIL FILTER This part replaces 154A1-413-005.

154A1-413-505

$9.47

4

FILTER, OIL

154A1-415-000

Unavailable

4

ELEMENT, OIL FILTER This part replaces 15412-413-005.

154A1-413-505

$9.47

5

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

6

SPRING, FILTER ELEMENT SETTING

15415-413-000

$3.47

7

BOLT, OIL FILTER CENTER | Use up to Engine SN 2013936

15420-MA6-000

Unavailable

7

BOLT, OIL FILTER CENTER

15420-MA6-000

Unavailable

7

BOLT, OIL FILTER CENTER | Use up to Engine SN 2013936 This part replaces 15420-413-000.

15420-MA6-000

Unavailable

7

BOLT, OIL FILTER CENTER | Use up to Engine SN 2013936 This part replaces 15420-415-000.

15420-MA6-000

Unavailable

7

BOLT, OIL FILTER CENTER This part replaces 15420-415-000.

15420-MA6-000

Unavailable

8

BOLT, HEX. (8X135) (NOT AVAILABLE)

90003-302-000

Unavailable

9

OIL SEAL (12.5X25X8) (ARAI) This part replaces 91204-350-003.

91204-425-003

$6.61

9

OIL SEAL (12.5X25X8) (ARAI) This part replaces 91204-350-005.

91204-425-003

$6.61

9

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

10

O-RING (15X2.5)

91302-377-000

$5.31

11

GASKET, OIL FILTER CASE

91306-413-000

$9.65

12

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

13

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

14

PIN A, DOWEL (10X16)

94301-10160

$2.28

15

BOLT, FLANGE (6X32) | Use up to Engine SN 2057122 This part replaces 95700-06032-00.

95701-06032-00

$1.89

15

BOLT, FLANGE (6X32) | Use from Engine SN 2057123 This part replaces 95700-06032-00.

95701-06032-00

$1.89

15

BOLT, FLANGE (6X32) | Use up to Engine SN 2057122

95701-06032-00

$1.89

15

BOLT, FLANGE (6X32) | Use from Engine SN 2057123

95701-06032-00

$1.89

16

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

16

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

17

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

17

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

18

BOLT, FLANGE (6X60) | Use from Engine SN 2057123 This part replaces 95700-06060-00.

95701-06060-00

$1.49

18

BOLT, FLANGE (6X60) | Use from Engine SN 2057123

95701-06060-00

$1.49

19

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.34

19

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

20

BOLT, FLANGE (6X105) This part replaces 95700-06105-00.

95701-06105-00

$3.09

20

BOLT, FLANGE (6X105)

95701-06105-00

$3.09
