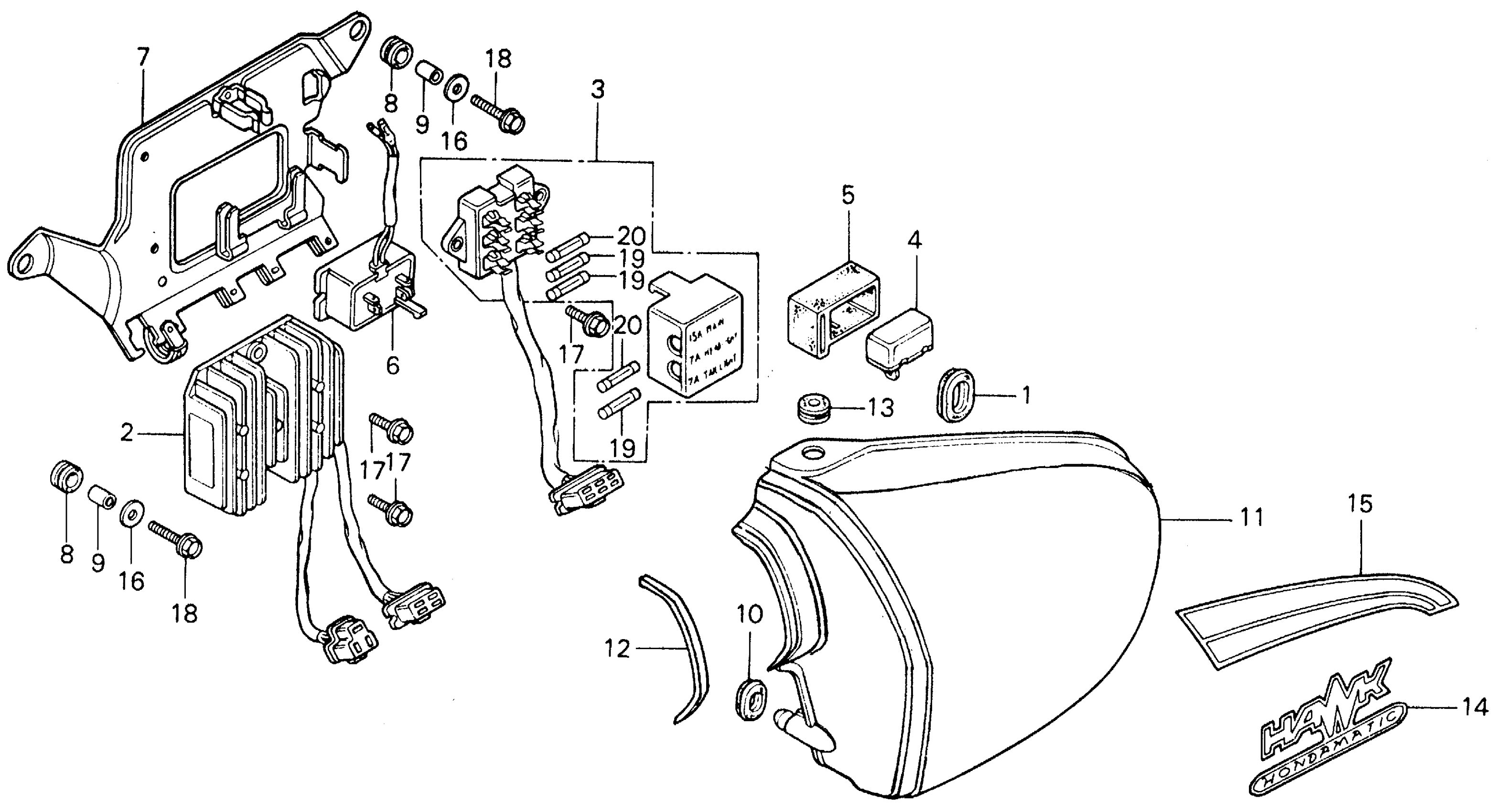

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 LEFT SIDE COVER + RECTIFIER + FUSE Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

RECTIFIER ASSY., REGULATOR

31600-KV8-681

Unavailable

2

RECTIFIER ASSY., REGULATOR This part replaces 31600-413-008.

31600-KV8-681

Unavailable

3

BOX ASSY., FUSE (NOT AVAILABLE)

38200-413-003

Unavailable

4

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

4

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

4

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

4

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

5

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE) | Use up to Frame SN 2008893

38306-092-670

Unavailable

5

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE) | Use from Frame SN 2008894

38306-107-670

Unavailable

6

RELAY, CHANGE (NOT AVAILABLE)

38320-417-008

Unavailable

7

PLATE, ELECTRIC BASE (NOT AVAILABLE)

50330-417-000

Unavailable

8

RUBBER A, RR. FENDER

80105-061-000

$4.01

9

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

9

COLLAR A, RR. FENDER

80108-061-010

$4.12

10

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

11

COVER, L. SIDE *PB3CC* (CANDY SAPPHIRE BLUE CUSTOM) (NOT AVAILABLE)

83700-413-000ZA

Unavailable

11

COVER, L. SIDE *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

83700-413-000ZC

Unavailable

11

COVER, L. SIDE *R23* (TAHITIAN RED) (NOT AVAILABLE)

83700-413-000ZF

Unavailable

12

MOLDING, L. SIDE COVER (NOT AVAILABLE)

83702-413-000

Unavailable

13

GROMMET, SIDE COVER SETTING

83705-413-000

$4.17

14

MARK, SIDE COVER *A30* (SPECIFIED ORANGE, SILVER AND BLUE) (NOT AVAILABLE)

87126-417-000ZA

Unavailable

15

STRIPE, L. SIDE COVER *A34* (SPECIFIED DARK BLUE, WHITE AND ORANGE) (NOT AVAILABLE)

87129-413-770ZA

Unavailable

16

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

16

WASHER (18MM)

90581-831-650

$1.87

17

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

17

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

18

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

18

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

19

FUSE B (7A)

98200-20700

$1.49

20

FUSE B (15A)

98200-21500

$1.49
