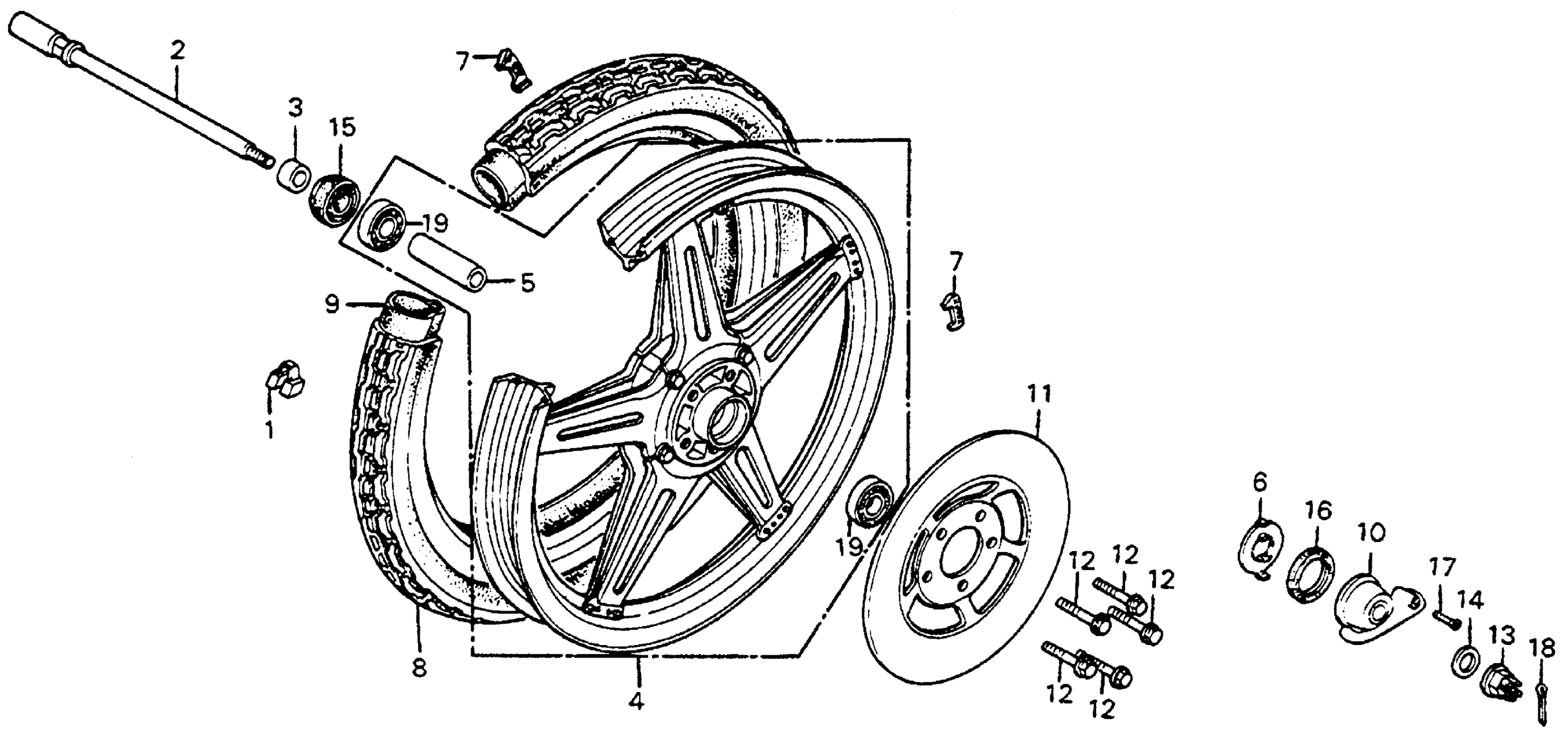

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

1

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

2

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-413-000

Unavailable

3

COLLAR, FR. WHEEL

44311-413-000

Unavailable

4

WHEEL, FR. This part replaces 44610-413-770.

44610-413-772

Unavailable

4

WHEEL, FR. This part replaces 44610-413-771.

44610-413-772

Unavailable

4

WHEEL, FR.

44610-413-772

Unavailable

5

COLLAR, FR. AXLE DISTANCE

44620-286-000

Unavailable

6

RETAINER, GEAR BOX

44680-410-000

$5.80

7

MARK, FR. SPOKE PLATE (NOT AVAILABLE)

44703-413-780

Unavailable

8

TIRE FR This part replaces 44711-413-671.

S44711413FR

Unavailable

8

TIRE, FR. (3.60S-19) (BS) (NOT AVAILABLE)

44711-413-672

Unavailable

9

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 08400-41310.

44712-110-003

Unavailable

9

TUBE, TIRE (19) (BS) (NOT AVAILABLE)

44712-110-003

Unavailable

9

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-413-009.

44712-110-003

Unavailable

10

BOX ASSY., SPEEDOMETER GEAR This part replaces 44800-413-003.

44800-447-013

Unavailable

10

BOX ASSY., SPEEDOMETER GEAR This part replaces 44800-413-013.

44800-447-013

Unavailable

10

BOX ASSY., SPEEDOMETER GEAR This part replaces 44800-447-003.

44800-447-013

Unavailable

10

BOX ASSY., SPEEDOMETER GEAR

44800-447-013

Unavailable

11

DISK, FR. BRAKE (NOT AVAILABLE) This part replaces 45251-410-000.

45251-410-305

Unavailable

11

DISK, FR. BRAKE (NOT AVAILABLE)

45251-410-305

Unavailable

12

BOLT, UBS (8X33)

90112-413-000

$3.85

13

NUT, AXLE (14MM)

90305-401-680

$11.65

14

WASHER (15.2X25)

90557-230-000

$2.39

15

OIL SEAL (26X42X7)

91252-230-003

$10.56

15

OIL SEAL (26X42X7) This part replaces 91252-230-005.

91252-230-003

$10.56

16

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

16

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

16

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

17

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

18

PIN, COTTER (3.0X45)

94201-30450

$1.49

19

BEARING, RADIAL BALL (6302Z)

96120-63020-10

Unavailable
