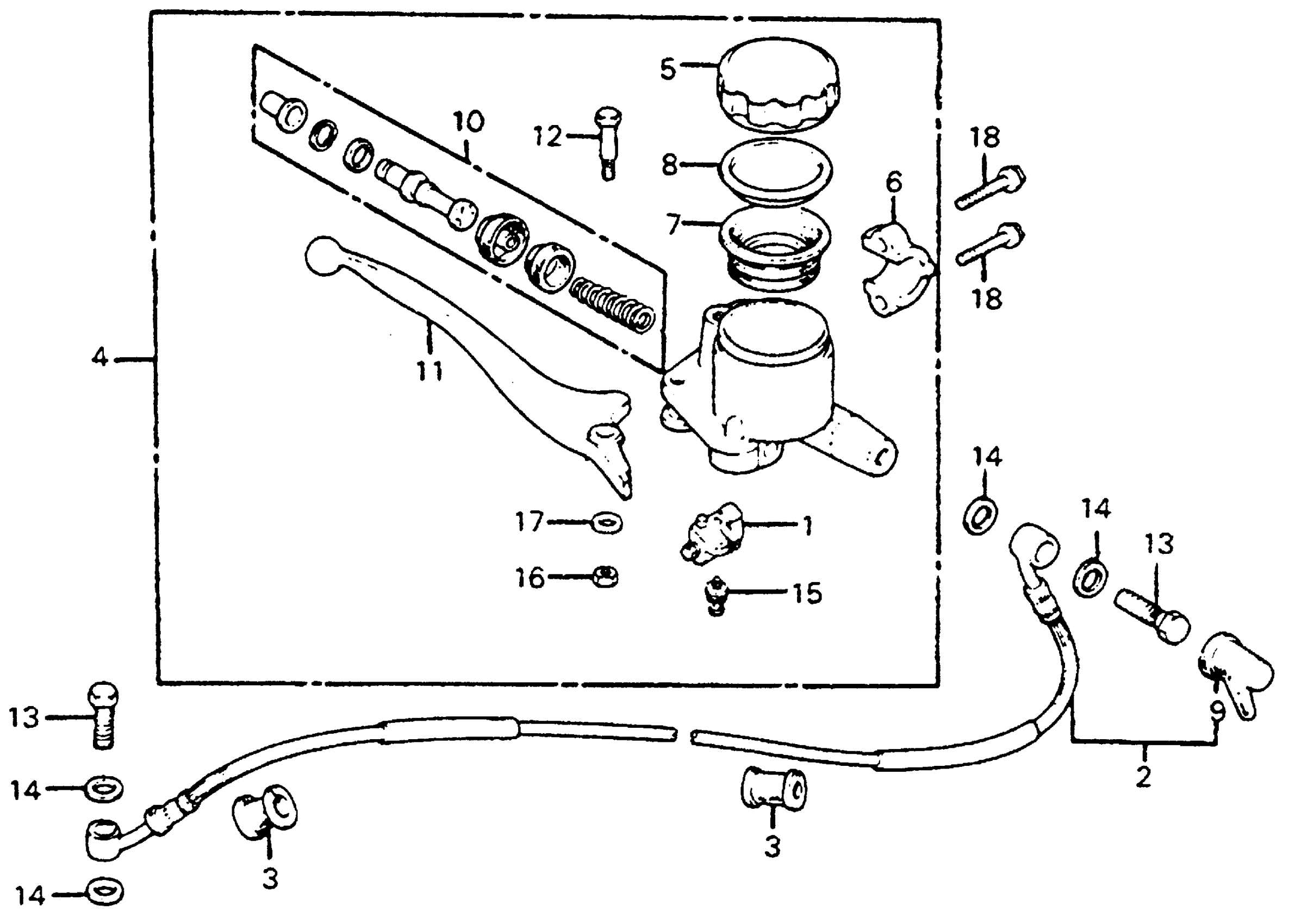

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 FRONT BRAKE MASTER CYL. Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP This part replaces 35340-413-003.

35340-413-013

Unavailable

1

SWITCH ASSY., FR. STOP

35340-413-013

Unavailable

2

HOSE ASSY., FR. BRAKE (NOT AVAILABLE) This part replaces 45126-413-000.

45126-413-020

Unavailable

2

HOSE ASSY., FR. BRAKE (NOT AVAILABLE) This part replaces 45126-413-010.

45126-413-020

Unavailable

2

HOSE ASSY., FR. BRAKE (NOT AVAILABLE)

45126-413-020

Unavailable

3

BUSH, BRAKE HOSE

45146-371-000

Unavailable

4

MASTER CYLINDER ASSY.

45050-413-671

Unavailable

4

MASTER CYLINDER ASSY. This part replaces 45500-413-671.

45050-413-671

Unavailable

5

CAP, OIL CUP

43513-MJ6-006

Unavailable

5

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

5

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

6

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

6

HOLDER, MASTER CYLINDER This part replaces 45517-300-003.

45517-MA5-671

$29.30

7

DIAPHRAGM

45520-300-000

$9.05

8

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

8

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

9

BOOT, MASTER CYLINDER

45522-300-010

$9.29

10

MASTER CYLINDER SET This part replaces 45530-404-305.

45530-404-315

$69.87

10

MASTER CYLINDER SET

45530-404-315

$69.87

11

LEVER, R. HANDLEBAR

53175-393-771

$23.69

11

LEVER, R. HANDLEBAR

53175-431-670

Unavailable

12

BOLT, HANDLEBAR LEVER PIVOT (NOT AVAILABLE)

90114-393-770

Unavailable

13

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

13

BOLT, OIL

90145-300-010

$9.68

14

WASHER, OIL BOLT

90545-300-000

$3.99

15

SCREW-WASHER (4X12)

93893-04012-00

$1.49

16

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

16

NUT, HEX. (6MM)

94002-06000-0S

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

18

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
