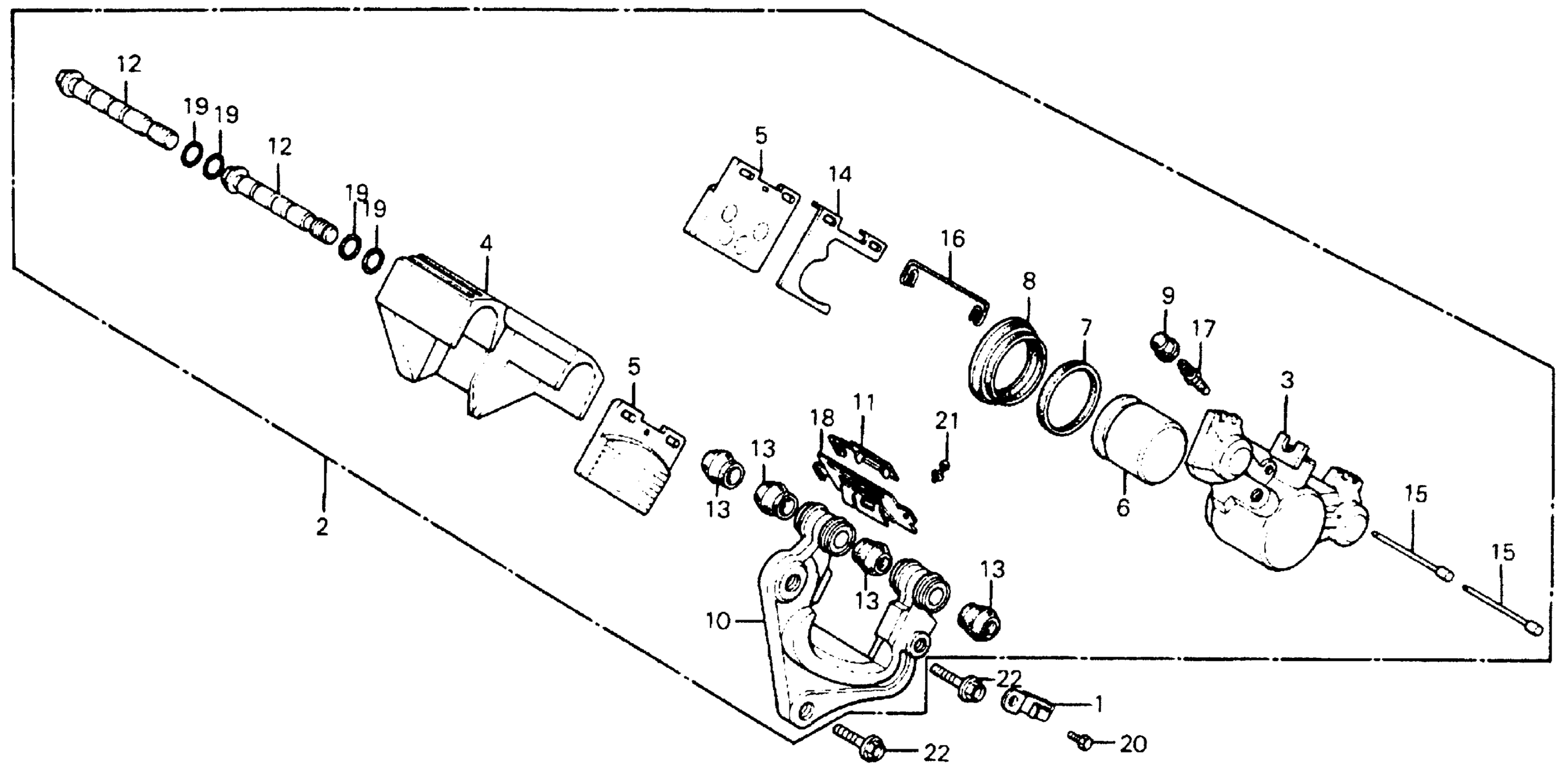

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

BRAKE PAD KIT (NOT AVAILABLE)

45012-413-305

Unavailable

1

CLIP, CABLE

32906-049-000

Unavailable

2

CALIPER.ASSY.FR.L This part replaces 45100-413-003.

45100-413-405

Unavailable

2

CALIPER.ASSY.FR.L This part replaces 45100-413-751.

45100-413-405

Unavailable

2

CALIPER.ASSY.FR.L This part replaces 45100-413-752.

45100-413-405

Unavailable

3

CALIPER A (NOT AVAILABLE) This part replaces 45101-413-003.

45101-413-751

Unavailable

4

CALIPER B (NOT AVAILABLE)

45102-413-003

Unavailable

5

BRAKE PAD KIT (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45012-413-305

Unavailable

5

BRAKE PAD KIT (NOT AVAILABLE) This part replaces 45105-413-003.

45012-413-305

Unavailable

6

PISTON

45107-413-003

Unavailable

7

SEAL, PISTON (TOKIKO)

45108-300-003

$11.70

8

BOOT, PISTON

45109-413-003

Unavailable

9

CAP, BLEEDER SCREW

45110-300-003

$3.26

10

CARRIER, CALIPER (NOT AVAILABLE)

45110-413-003

Unavailable

11

COVER, INDICATOR (NOT AVAILABLE)

45119-413-003

Unavailable

12

SHAFT, CALIPER (NOT AVAILABLE)

45131-413-003

Unavailable

13

BOOT, CALIPER SHAFT

45133-413-003

Unavailable

14

SHIM (NOT AVAILABLE)

45214-413-003

Unavailable

15

PIN, PAD RETAINING (NOT AVAILABLE)

45215-413-003

Unavailable

16

CLIP, PAD PIN (NOT AVAILABLE)

45223-413-003

Unavailable

17

VALVE, BLEEDER

45224-413-003

Unavailable

18

COVER, CALIPER

45241-413-003

Unavailable

19

O-RING (7.3X1.4)

91303-413-003

Unavailable

20

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

20

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

21

SCREW-WASHER (5X10)

93892-05010-08

$1.49

22

BOLT, FLANGE (10X32) This part replaces 95800-10032-00.

95801-10032-00

$2.31

22

BOLT, FLANGE (10X32)

95801-10032-00

$2.31
