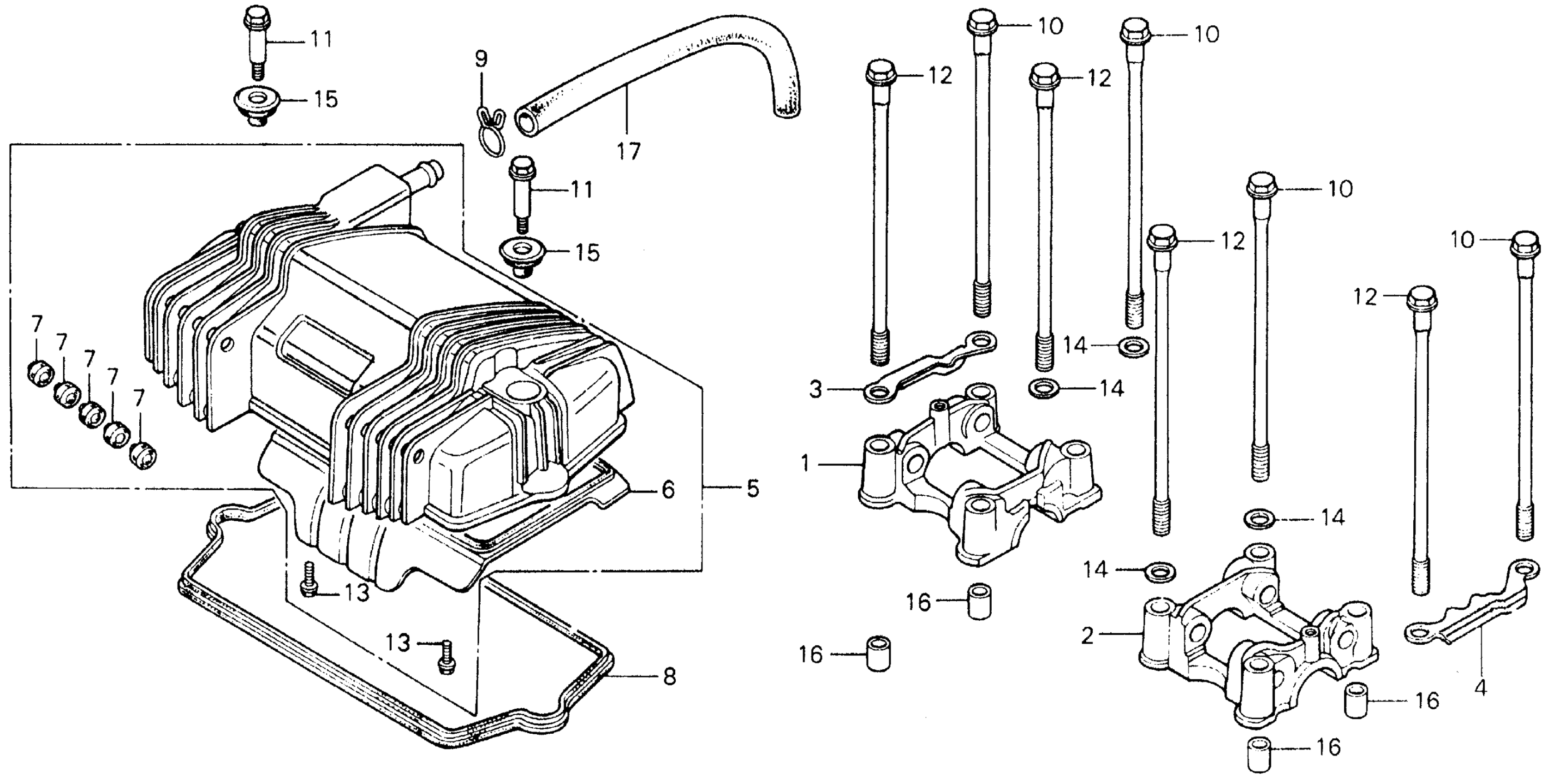

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 CYLINDER HEAD COVER + CAMSHAFT HOLDER Diagram

#

Description
Price

1

HOLDER SET, R. CAMSHAFT (NOT AVAILABLE) | Use up to Engine SN 2009301 This part replaces 12210-413-010.

12510-413-305

Unavailable

1

HOLDER SET, R. CAMSHAFT (NOT AVAILABLE) This part replaces 12210-413-020.

12510-413-305

Unavailable

1

HOLDER SET, R. CAMSHAFT (NOT AVAILABLE)

12510-413-305

Unavailable

2

HOLDER SET, L. CAMSHAFT (NOT AVAILABLE) | Use up to Engine SN 2009421 This part replaces 12220-413-010.

12520-413-305

Unavailable

2

HOLDER SET, L. CAMSHAFT (NOT AVAILABLE) This part replaces 12220-413-020.

12520-413-305

Unavailable

2

HOLDER SET, L. CAMSHAFT (NOT AVAILABLE)

12520-413-305

Unavailable

3

PLATE, R. VALVE ROCKER ARM SHAFT SETTING

12221-413-000

Unavailable

4

PLATE, L. VALVE ROCKER ARM SHAFT SETTING

12222-413-000

Unavailable

5

COVER ASSY., CYLINDER HEAD (NOT AVAILABLE)

12300-413-000

Unavailable

6

COVER, BREATHER (NOT AVAILABLE) | Use up to Engine SN 2056502 This part replaces 12321-413-000.

12321-413-010

Unavailable

6

COVER, BREATHER (NOT AVAILABLE)

12321-413-010

Unavailable

7

RUBBER, INSERT

12324-413-000

Unavailable

8

GASKET, HEAD COVER This part replaces 12328-413-000.

12328-413-830

$27.05

8

GASKET, HEAD COVER

12328-413-830

$27.05

9

CLIP, AIR HOSE (16)

18534-634-670

$5.76

10

BOLT, CYLINDER (212) (NO GROMMET)

90081-MC0-000

Unavailable

10

BOLT, CYLINDER (212) (NO GROMMET) This part replaces 90081-413-000.

90081-MC0-000

Unavailable

11

BOLT, HEAD COVER

90082-413-000

$4.94

12

BOLT, CYLINDER (222) (NO GROMMET)

90083-MC0-000

Unavailable

12

BOLT, CYLINDER (222) (NO GROMMET) This part replaces 90083-413-000.

90083-MC0-000

Unavailable

13

BOLT, FLANGE (6X10)

90083-657-000

$5.67

14

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

14

WASHER (10MM) This part replaces 90403-413-010.

90403-ML4-611

$6.21

15

WASHER, HEAD COVER This part replaces 90441-413-000.

90441-413-830

$9.27

15

WASHER, HEAD COVER

90441-413-830

$9.27

16

PIN A, DOWEL (14X20)

94301-14200

$2.28

17

BULK HOSE, VACUUM (12X1000) (12X260)

95005-12001-20M

$34.11
