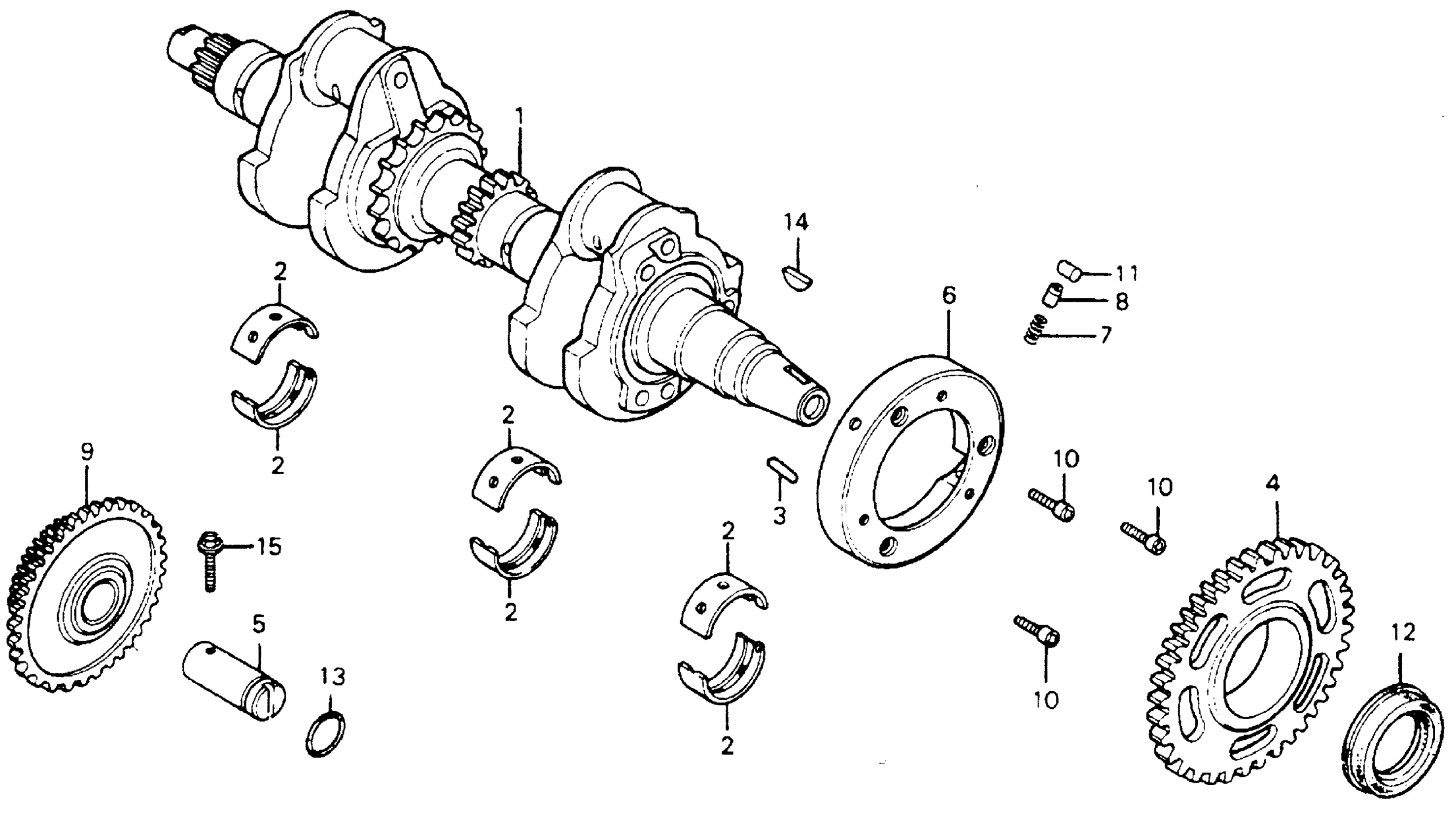

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13300-413-782.

13301-413-782

Unavailable

1

CRANKSHAFT

13301-413-782

Unavailable

2

BEARING A, CRANKSHAFT (BLUE) (TAIHO) This part replaces 13314-413-003.

13314-413-004

Unavailable

2

BEARING A, CRANKSHAFT (BLUE) (TAIHO)

13314-413-004

Unavailable

2

BEARING B, CRANKSHAFT (BLACK) (TAIHO) This part replaces 13315-413-003.

13315-413-004

Unavailable

2

BEARING B, CRANKSHAFT (BLACK) (TAIHO)

13315-413-004

Unavailable

2

BEARING C, CRANKSHAFT (BROWN) (TAIHO) This part replaces 13316-413-003.

13316-413-004

Unavailable

2

BEARING C, CRANKSHAFT (BROWN) (TAIHO)

13316-413-004

Unavailable

2

BEARING D, CRANKSHAFT (GREEN) (TAIHO) This part replaces 13317-413-003.

13317-413-004

Unavailable

2

BEARING D, CRANKSHAFT (GREEN) (TAIHO)

13317-413-004

Unavailable

2

BEARING E, CRANKSHAFT (YELLOW) (DAIDO) This part replaces 13318-413-003.

13318-413-004

Unavailable

2

BEARING E, CRANKSHAFT (YELLOW) (DAIDO)

13318-413-004

Unavailable

3

PIN, OIL PUMP PLUNGER (NOT AVAILABLE) | Use up to Engine SN 2008221

15210-286-000

Unavailable

3

ROLLER (6X13) (NOT AVAILABLE) | Use from Engine SN 2008222

96220-60130

Unavailable

4

GEAR, STARTER DRIVEN (51T) This part replaces 28110-413-783.

28110-443-900

Unavailable

4

GEAR, STARTER DRIVEN (51T) This part replaces 28110-413-784.

28110-443-900

Unavailable

4

GEAR, STARTER DRIVEN (51T)

28110-443-900

Unavailable

5

SHAFT, STARTING IDLE GEAR (NOT AVAILABLE)

28114-413-780

Unavailable

6

CLUTCH, STARTING (OUTER) (NOT AVAILABLE) | Use up to Engine SN 2008221

28120-413-305

Unavailable

6

CLUTCH, STARTING (OUTER) (NOT AVAILABLE) | Use up to Engine SN 2008221 This part replaces 28120-413-780.

28120-413-305

Unavailable

6

CLUTCH, STARTER (OUTER) (NOT AVAILABLE) | Use from Engine SN 2008222 This part replaces 28120-413-781.

28120-413-782

Unavailable

6

CLUTCH, STARTER (OUTER) (NOT AVAILABLE) | Use from Engine SN 2008222

28120-413-782

Unavailable

7

SPRING, STARTER CLUTCH ROLLER

28125-323-000

Unavailable

8

CAP, STARTER CLUTCH ROLLER SPRING

28126-253-030

$4.53

9

GEAR, STARTING IDLE (80T,22T)

28130-413-780

$100.93

10

BOLT, SOCKET (6MM) | Use up to Engine SN 2058562 This part replaces 90085-413-780.

90085-413-781

$4.06

10

BOLT, SOCKET (6MM) | Use up to Engine SN 2058562

90085-413-781

$4.06

10

BOLT, SOCKET (6MM)

90085-413-781

$4.06

11

ROLLER (10.2X11.5)

91101-377-000

$3.01

11

ROLLER (10.2X11.5) This part replaces 91103-259-000.

91101-377-000

$3.01

12

OIL SEAL (30X45X8)

91201-323-005

$14.97

13

O-RING (11.5X2)

91304-216-000

$2.11

14

KEY, SPECIAL WOODRUFF (25X18)

94401-25180

$1.49

15

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

15

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
