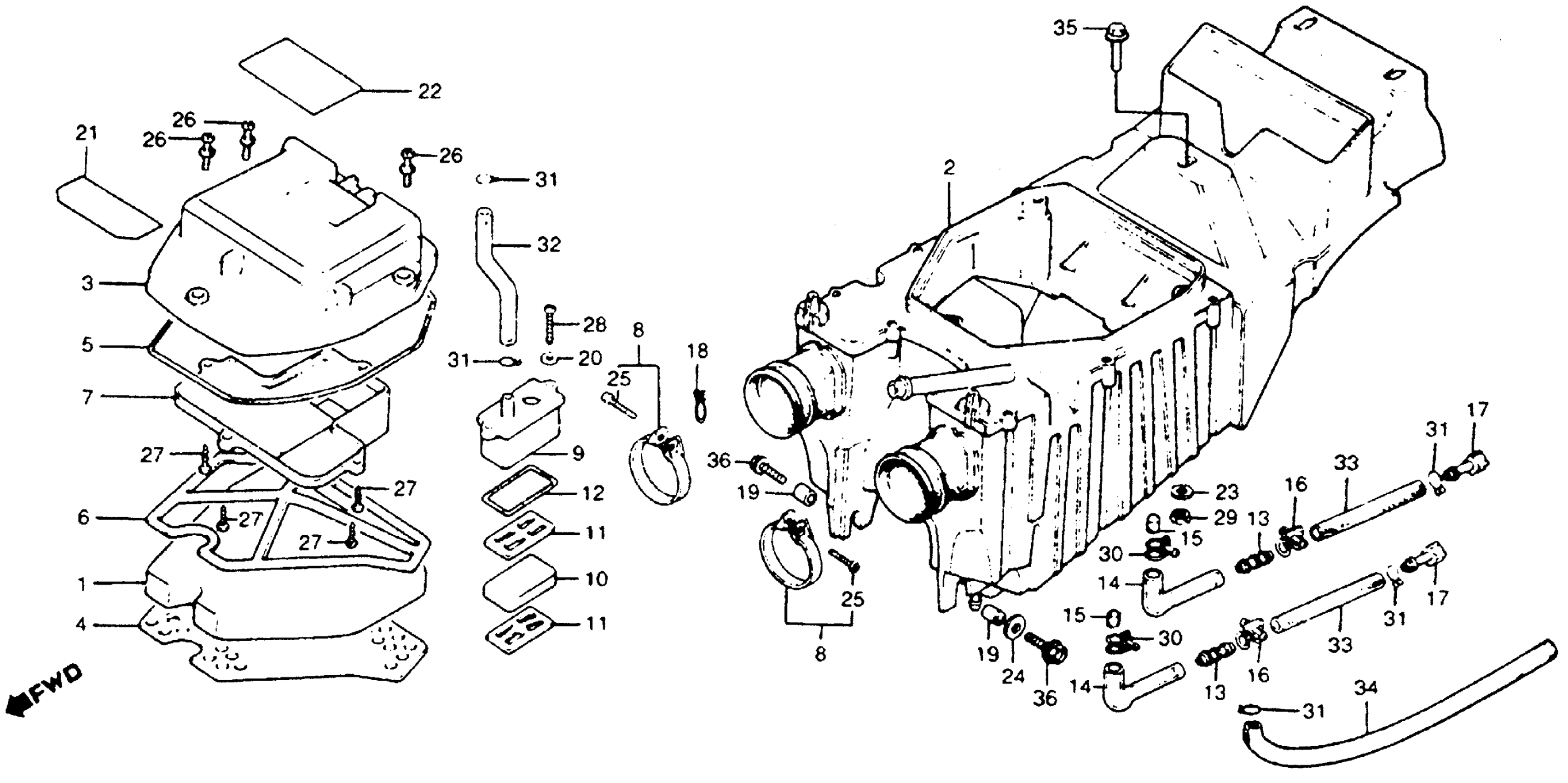

Honda CB400AA (78) HAWK HONDAMATIC, JPN, VIN# CB400A-2000015 AIR CLEANER Diagram

ELEMENT, AIR CLEANER

17211-413-000

Unavailable

CASE AIR CLEANER | Use up to Frame SN 2050000 This part replaces 17214-413-000.

17214-413-505

Unavailable

HOUSING, AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 2050001

17214-413-690

Unavailable

COVER, AIR CLEANER HOUSING

17217-413-000

Unavailable

PLATE A, ELEMENT SETTING (NOT AVAILABLE)

17218-413-000

Unavailable

SEAL, AIR CLEANER COVER

17219-413-000

$5.60

PLATE B, ELEMENT (NOT AVAILABLE)

17220-413-000

Unavailable

DUCT, AIR CLEANER (NOT AVAILABLE)

17222-413-000

Unavailable

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-358-000.

95018-60250

$6.25

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

CHAMBER, BREATHER (NOT AVAILABLE) | Use up to Frame SN 2050000

17261-413-000

Unavailable

CHAMBER, BREATHER (NOT AVAILABLE) | Use from Frame SN 2050001

17261-413-690

Unavailable

FILTER, BREATHER (NOT AVAILABLE) | Use up to Frame SN 2050000

17265-413-000

Unavailable

FILTER, BREATHER (NOT AVAILABLE) | Use from Frame SN 2050001

17265-413-690

Unavailable

SEPARATOR, CHAMBER (NOT AVAILABLE) | Use from Frame SN 2050001

17266-413-690

Unavailable

GASKET, BREATHER (NOT AVAILABLE) | Use from Frame SN 2050001

17268-413-690

Unavailable

JOINT, BREATHER TUBE | Use from Frame SN 2050001

17359-419-670

$1.95

TUBE, DRAIN | Use from Frame SN 2050001

17365-419-000

Unavailable

FILTER, DRAIN TUBE | Use from Frame SN 2050001

17367-413-690

$1.94

CLIP, TUBE (A13.5) | Use from Frame SN 2050001

17369-419-670

Unavailable

PLUG, BREATHER TUBE | Use from Frame SN 2050001

17370-419-700

$3.74

CLIP, AIR HOSE (16)

18534-634-670

$5.76

COLLAR, METER SETTING (NOT AVAILABLE)

37243-371-008

Unavailable

WASHER, PLAIN (5.5MM) | Use up to Frame SN 2050000

37314-061-810

Unavailable

WASHER, PLAIN (5MM) | Use from Frame SN 2050001

94101-05800

$1.49

LABEL, AIR CLEANER CAUTION

87506-340-670

Unavailable

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-413-670

Unavailable

WASHER, BUMPER STAY

90304-538-000

Unavailable

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

WASHER (18MM)

90581-831-650

$1.87

SCREW, PAN (4X25)

93500-04025-0A

$1.93

SCREW-WASHER (5X25)

93891-05025-08

$1.49

SCREW-WASHER (5X25) This part replaces 93891-05025-18.

93891-05025-08

$1.49

SCREW, TAPPING (3X16)

93901-32420

$1.49

SCREW, TAPPING (5X16) | Use up to Frame SN 2050000

93901-35320

Unavailable

SCREW, TAPPING (5X20) | Use from Frame SN 2050001

93901-35420

$0.48

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

CLIP, TUBE (A16) | Use from Frame SN 2050001

95002-01160

$4.05

CLIP, TUBE (B12.5) | Use up to Frame SN 2050000

95002-02130

$1.49

CLIP, TUBE (B12.5) | Use from Frame SN 2050001

95002-02130

$1.49

BULK HOSE, VACUUM (8X1000) (8X160) | Use from Frame SN 2050001

95005-80001-20M

$23.91

BULK HOSE, VACUUM (8X1000) (8X180) | Use up to Frame SN 2050000

95005-80001-20M

$23.91

BULK HOSE, VACUUM (8X1000) (8X260) | Use from Frame SN 2050001

95005-80001-20M

$23.91

BULK HOSE, VACUUM (8X1000) (8X280)

95005-80001-20M

$23.91

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
