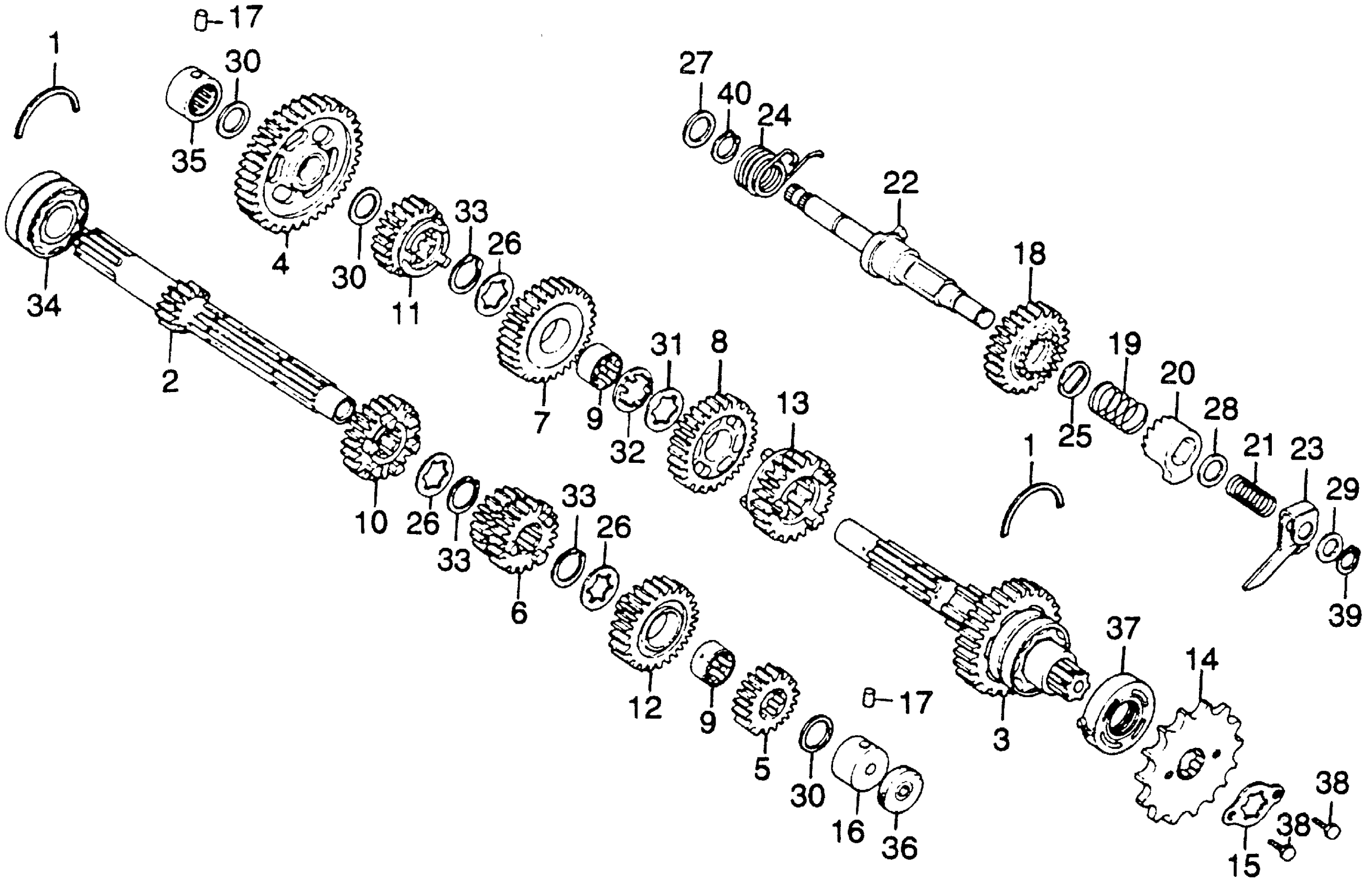

Honda CB360TA MOTORCYCLE, JPN, VIN# CB360-2100001 TO CB360-2123938 TRANSMISSION Diagram

#

Description
Price

1

SET-RING (520) This part replaces 13492-283-000.

95015-25200

Unavailable

1

SET-RING (520)

95015-25200

Unavailable

2

MAINSHAFT, TRANSMISSION (16T)

23211-369-000

Unavailable

3

COUNTERSHAFT, TRANSMISSION | Use up to Engine SN 2047268

23220-369-000

Unavailable

3

COUNTERSHAFT, TRANSMISSION (35T) (NOT AVAILABLE) | Use from Engine SN 2100001 This part replaces 23220-387-670.

23220-387-671

Unavailable

4

GEAR, COUNTERSHAFT LOW (40T) (NOT AVAILABLE) | Use up to Engine SN 2047268

23420-369-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (39T) | Use from Engine SN 2100001

23420-387-670

Unavailable

5

GEAR, MAINSHAFT SECOND (20T) | Use up to Engine SN 2047268

23431-369-000

Unavailable

5

GEAR, MAINSHAFT SECOND (21T) (NOT AVAILABLE) | Use from Engine SN 2100001

23431-387-671

Unavailable

6

GEAR, MAINSHAFT THIRD & FOURTH (24T 27T)

23451-369-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (33T)

23461-369-000

Unavailable

8

GEAR, COUNTERSHAFT FOURTH (30T)

23481-369-000

$160.48

9

BUSH, SPLINE (28MM)

23485-369-000

$29.59

10

GEAR, MAINSHAFT FIFTH (29T)

23491-369-000

Unavailable

11

GEAR, COUNTERSHAFT FIFTH (28T) (NOT AVAILABLE)

23501-369-000

Unavailable

12

GEAR, MAINSHAFT TOP

23511-369-000

$168.49

13

GEAR, COUNTERSHAFT TOP (26T)

23521-369-000

Unavailable

14

SPROCKET, DRIVE (16T)

23801-344-000

Unavailable

15

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

16

BEARING, NEEDLE (20MM) (TOYO)

23931-286-068

Unavailable

17

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

18

PINION, KICK STARTER (NOT AVAILABLE)

28211-369-000

Unavailable

19

SPRING, STARTER PINION SETTING (NOT AVAILABLE)

28215-216-000

Unavailable

20

RATCHET, KICK STARTER (NOT AVAILABLE) This part replaces 28221-310-010.

28221-310-020

Unavailable

20

RATCHET, KICK STARTER (NOT AVAILABLE)

28221-310-020

Unavailable

21

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28223-216-000

Unavailable

22

SPINDLE, KICK STARTER (NOT AVAILABLE)

28251-369-000

Unavailable

23

PLATE, RATCHET GUIDE (NOT AVAILABLE)

28258-310-010

Unavailable

24

SPRING, KICK STARTER (NOT AVAILABLE)

28261-369-000

Unavailable

25

WASHER, THRUST (20MM) (NOT AVAILABLE)

90451-216-000

Unavailable

26

WASHER, THRUST (25MM)

90451-300-000

Unavailable

27

WASHER (18MM)

90451-357-000

Unavailable

27

WASHER (18MM) This part replaces 90453-286-003.

90451-357-000

Unavailable

28

WASHER, THRUST (15X1) This part replaces 90454-200-000.

90457-HB3-000

$2.89

28

WASHER, THRUST (15X1)

90457-HB3-000

$2.89

29

WASHER (12MM)

90452-ZG0-000

$1.49

29

WASHER (12MM) This part replaces 90457-500-000.

90452-ZG0-000

$1.49

30

WASHER, THRUST (20MM) (NOT AVAILABLE)

90458-329-010

Unavailable

31

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

32

WASHER, LOCK (25MM) (NOT AVAILABLE)

90462-286-000

Unavailable

33

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

34

BEARING, RADIAL BALL This part replaces 91001-283-003.

91001-KE8-003

Unavailable

34

BEARING, BALL (5205HS) (TOYO) (NOT AVAILABLE)

91002-286-008

Unavailable

35

BEARING, NEEDLE (20MM) (TOYO) (NOT AVAILABLE) | Use up to Engine SN 2046926 This part replaces 91022-333-018.

91022-377-008

Unavailable

35

BEARING, NEEDLE (20MM) (TOYO) (NOT AVAILABLE)

91022-377-008

Unavailable

36

OIL SEAL (8X34X8)

91203-292-005

$13.88

37

OIL SEAL (34X52X13.5X15.5) This part replaces 91205-333-005.

91205-333-015

Unavailable

37

OIL SEAL (34X52X13.5X15.5)

91205-333-015

Unavailable

38

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

38

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

39

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

40

CIRCLIP (OUTER) (18MM)

94510-18000

$1.49
