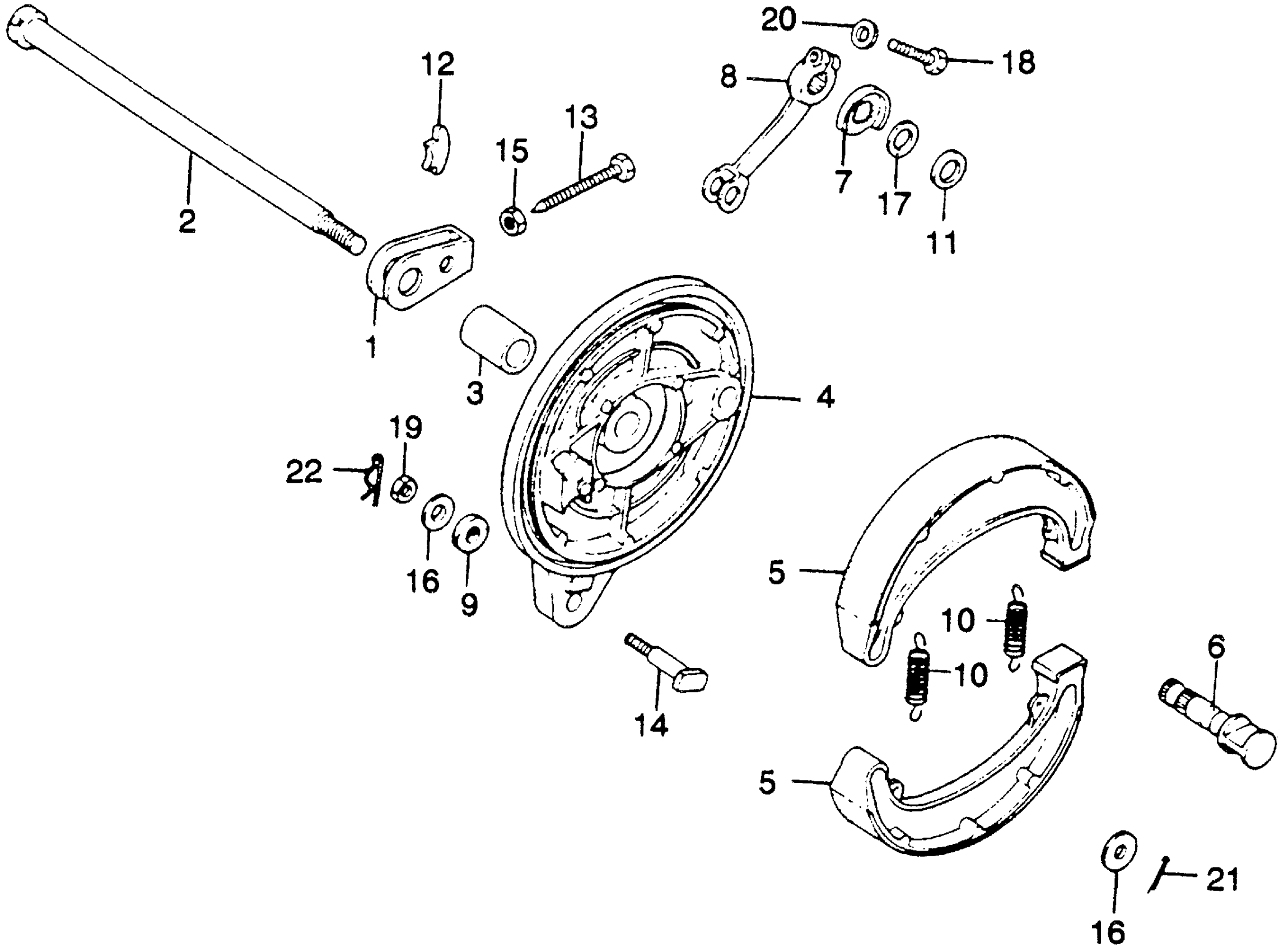

Honda CB360TA MOTORCYCLE, JPN, VIN# CB360-2100001 TO CB360-2123938 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, RR. BRAKE This part replaces 06430-HC4-671.

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE This part replaces 06430-HC4-901.

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE This part replaces 431A2-KG4-006.

06430-HM5-A80

$36.79

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-312-010.

40543-471-000

Unavailable

1

ADJUSTER, DRIVE CHAIN

40543-471-000

Unavailable

2

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-286-010.

42301-286-020

Unavailable

2

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-286-020

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-369-000

Unavailable

4

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-369-010

$211.56

5

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-KG4-000.

43120-KG4-006

Unavailable

5

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-KG4-003.

43120-KG4-006

Unavailable

5

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

43120-KG4-006

Unavailable

5

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-369-670.

43120-KG4-006

Unavailable

5

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-943-680.

43120-KG4-006

Unavailable

6

CAM, RR. BRAKE (NOT AVAILABLE)

43141-369-000

Unavailable

7

PLATE, BRAKE INDICATOR (NOT AVAILABLE)

43145-369-000

Unavailable

8

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43411-362-000.

43411-374-000

Unavailable

8

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43411-369-000.

43411-374-000

Unavailable

9

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

10

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

11

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

12

STOPPER, CHAIN ADJUSTER (NOT AVAILABLE)

52136-333-000

Unavailable

13

BOLT, CHAIN ADJUSTING

90119-283-000

$11.41

14

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90127-283-000

Unavailable

15

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

16

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

17

WASHER (14MM)

90549-121-000

Unavailable

18

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

18

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

18

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, PLAIN (6MM) | Use up to Frame SN 2046847 This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) | Use up to Frame SN 2046847 This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) | Use up to Frame SN 2046847

94101-06800

$1.49

21

PIN, COTTER (2.0X15)

94201-20150

$1.49

22

PIN, LOCK (8MM)

94251-08000

$1.49
