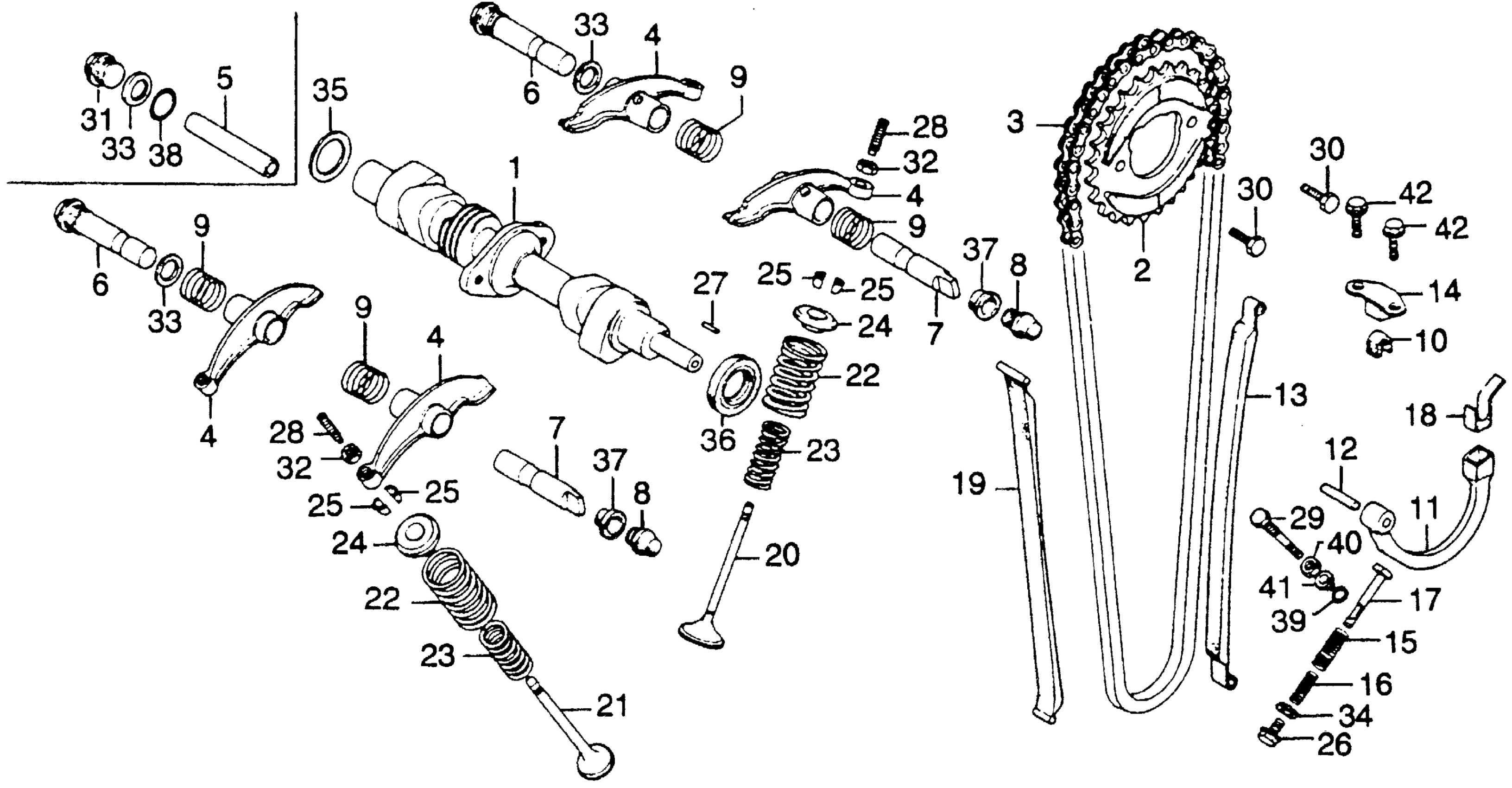

Honda CB360TA MOTORCYCLE, JPN, VIN# CB360-2100001 TO CB360-2123938 CAMSHAFT + VALVE Diagram

#

Description
Price

1

CAMSHAFT

14101-369-000

Unavailable

2

SPROCKET, CAM (34T)

14321-369-000

Unavailable

3

CHAIN, CAM (92L) (DAIDO) (NOT AVAILABLE)

14401-369-003

Unavailable

4

ARM, VALVE ROCKER

14432-369-000

Unavailable

5

SHAFT, R. ROCKER ARM | Use up to Engine SN 2031163 This part replaces 14451-369-000.

14451-369-010

Unavailable

5

SHAFT, R. ROCKER ARM | Use up to Engine SN 2031163

14451-369-010

Unavailable

6

SHAFT, R. ROCKER ARM | Use from Engine SN 2031164

14451-369-010

Unavailable

7

SHAFT, L. ROCKER ARM | Use up to Engine SN 2031163 This part replaces 14452-369-000.

14452-369-010

Unavailable

7

SHAFT, L. ROCKER ARM | Use up to Engine SN 2031163

14452-369-010

Unavailable

7

SHAFT, L. ROCKER ARM

14452-369-010

Unavailable

8

PLUG, RUBBER

14455-369-004

Unavailable

9

SPRING, ROCKER ARM SIDE

14481-369-000

Unavailable

10

DAMPER, CAM CHAIN TENSIONER | Use up to Engine SN 2040600

14501-323-000

Unavailable

10

DAMPER A, TENSIONER (NOT AVAILABLE) | Use from Engine SN 2040601 to 2116821 This part replaces 14565-369-000.

14565-369-010

Unavailable

10

DAMPER A, TENSIONER (NOT AVAILABLE) | Use from Engine SN 2040601

14565-369-010

Unavailable

11

ARM, CAM CHAIN TENSIONER This part replaces 14501-369-000.

14501-369-010

Unavailable

11

ARM, CAM CHAIN TENSIONER

14501-369-010

Unavailable

12

PIN, CAM CHAIN TENSIONER (NOT AVAILABLE)

14502-369-000

Unavailable

13

SLIPPER, TENSIONER | Use up to Engine SN 2000230

14520-323-000

Unavailable

13

SLIPPER, TENSIONER (NOT AVAILABLE) | Use from Engine SN 2000231 to 2040600 This part replaces 14520-369-000.

14520-369-010

Unavailable

13

SLIPPER, TENSIONER (NOT AVAILABLE) | Use from Engine SN 2000231

14520-369-010

Unavailable

14

HOLDER, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use up to Engine SN 2040600 This part replaces 14530-369-000.

14530-369-020

Unavailable

14

HOLDER, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use up to Engine SN 2100248 This part replaces 14530-369-010.

14530-369-020

Unavailable

14

HOLDER, CAM CHAIN TENSIONER (NOT AVAILABLE)

14530-369-020

Unavailable

15

SPRING, CAM CHAIN TENSIONER (OUTER) (NOT AVAILABLE) | Use up to Engine SN 2001055

14541-369-000

Unavailable

15

SPRING, TENSIONER (OUTER) (NOT AVAILABLE) | Use from Engine SN 2001056 to 2105318 This part replaces 14541-369-020.

14541-369-030

Unavailable

15

SPRING, TENSIONER (OUTER) (NOT AVAILABLE)

14541-369-030

Unavailable

16

SPRING, CAM CHAIN TENSIONER (INNER) (NOT AVAILABLE) | Use up to Engine SN 2001055

14543-369-000

Unavailable

16

SPRING, TENSIONER (INNER) | Use from Engine SN 2001056 to 2105318 This part replaces 14543-369-020.

14543-369-030

Unavailable

16

SPRING, TENSIONER (INNER) | Use from Engine SN 2001056 to 2105318

14543-369-030

Unavailable

16

SPRING, TENSIONER (INNER)

14543-369-030

Unavailable

17

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE) | Use up to Engine SN 2001055 This part replaces 14550-369-000.

14550-369-020

Unavailable

17

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE) | Use up to Engine SN 2101874 This part replaces 14550-369-010.

14550-369-020

Unavailable

17

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14550-369-020

Unavailable

18

DAMPER B, TENSIONER (NOT AVAILABLE)

14567-369-000

Unavailable

19

GUIDE, CAM CHAIN (NOT AVAILABLE)

14611-369-000

Unavailable

20

VALVE, IN.

14711-286-030

Unavailable

21

VALVE, EX. This part replaces 14721-286-020.

14721-286-305

$86.67

21

VALVE, EX.

14721-286-305

$86.67

22

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-286-000

Unavailable

23

SPRING, VALVE (INNER)

14761-286-020

Unavailable

24

RETAINER, VALVE SPRING (NOT AVAILABLE) This part replaces 14771-369-000.

14771-369-010

Unavailable

24

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-369-010

Unavailable

25

COTTER, VALVE (NOT AVAILABLE)

14781-286-020

Unavailable

26

BOLT, OIL CHECK (NOT AVAILABLE)

25911-500-000

Unavailable

27

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

28

SCREW, TAPPET ADJUSTING This part replaces 90012-300-000.

90012-426-000

$5.94

28

SCREW, TAPPET ADJ.

90012-426-000

$5.94

29

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90016-369-000

Unavailable

30

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

30

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

31

BOLT, SEALING (NOT AVAILABLE) | Use up to Engine SN 2031163

90084-369-000

Unavailable

32

NUT, TAPPET ADJ.

90206-250-000

$2.94

33

WASHER, SEALING (16MM) (NOT AVAILABLE)

90442-369-000

Unavailable

34

WASHER (8MM)

90474-333-000

$3.30

35

WASHER A, THRUST (1.1MM +0 +0.08) (NOT AVAILABLE)

90483-369-000

Unavailable

35

WASHER B, THRUST (1.0MM -0.05 +0.03) (NOT AVAILABLE)

90484-369-000

Unavailable

36

OIL SEAL (22X35X5) This part replaces 91202-286-023.

91251-KM1-003

$6.96

36

OIL SEAL (22X35X5) This part replaces 91202-286-025.

91251-KM1-003

$6.96

36

OIL SEAL (22X35X5)

91251-KM1-003

$6.96

37

RUBBER, SEAL (9X13) (NOT AVAILABLE) | Use up to Engine SN 2031163

91205-706-000

Unavailable

38

O-RING (9.4X2.4) | Use up to Engine SN 2031163

91304-KK3-830

$2.31

38

O-RING (9.4X2.4) | Use up to Engine SN 2031163 This part replaces 91304-107-000.

91304-KK3-830

$2.31

38

O-RING (9.4X2.4) | Use up to Engine SN 2031163 This part replaces 91312-700-000.

91304-KK3-830

$2.31

39

O-RING (6X1.7)

91317-171-003

$2.92

39

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.92

40

NUT, HEX. (8MM)

94002-08000-0S

$1.49

41

WASHER, SETTING (NOT AVAILABLE) | Use from Engine SN 2120007

90413-387-670

Unavailable

41

WASHER, PLAIN (6MM) | Use up to Engine SN 2120006 This part replaces 94101-06000.

94101-06800

$1.49

41

WASHER, PLAIN (6MM) | Use up to Engine SN 2120006 This part replaces 94101-06080.

94101-06800

$1.49

41

WASHER, PLAIN (6MM) | Use up to Engine SN 2120006

94101-06800

$1.49

42

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

42

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
