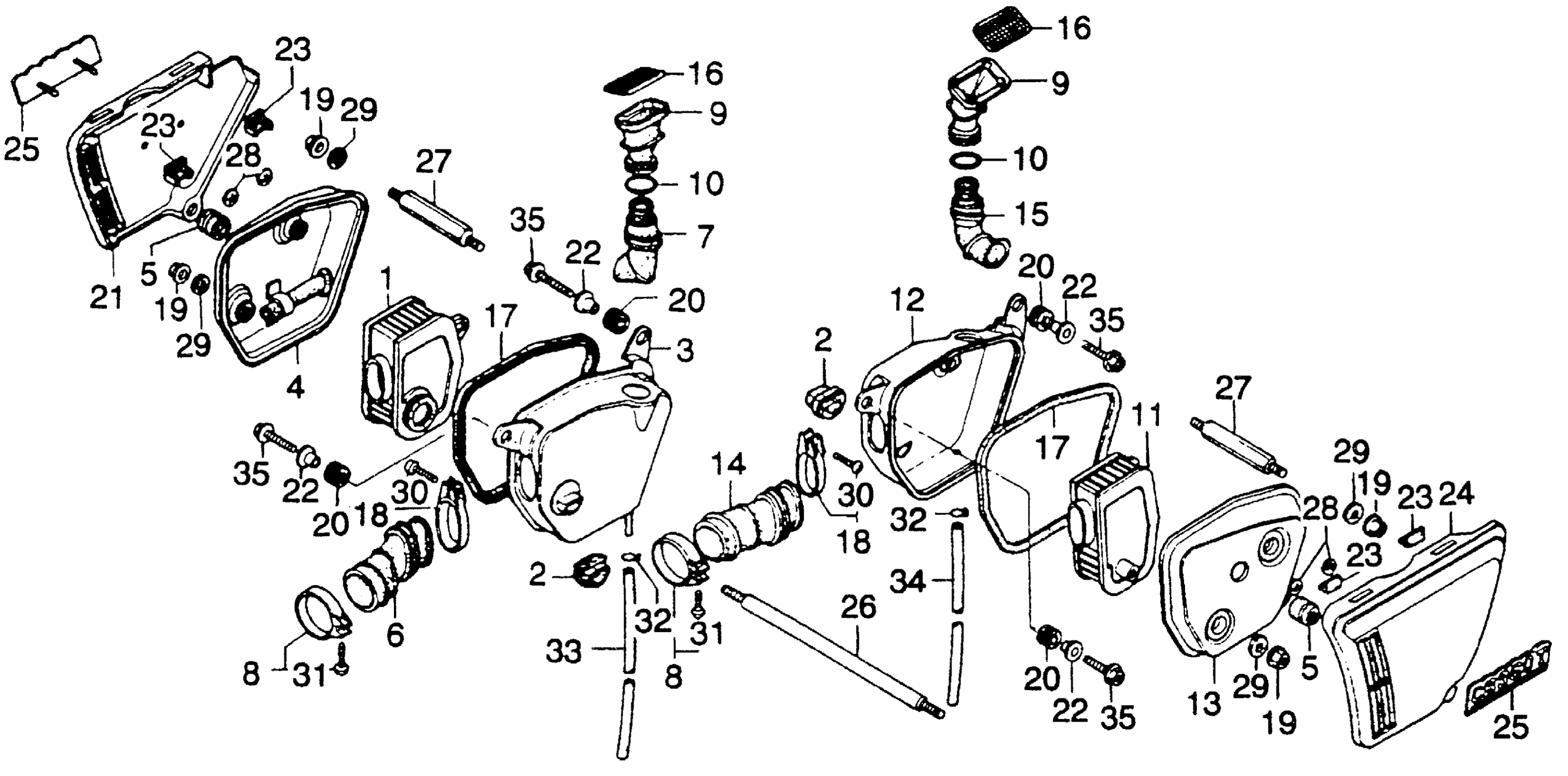

Honda CB360TA MOTORCYCLE, JPN, VIN# CB360-2100001 TO CB360-2123938 AIR CLEANER + SIDE COVER (2) Diagram

#

Description
Price

1

ELEMENT, R. AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 2100001

17211-387-000

Unavailable

2

TUBE, AIR CLEANER JOINT (NOT AVAILABLE) | Use from Frame SN 2100001

17213-387-000

Unavailable

3

CASE, R. AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 2100001

17214-387-000

Unavailable

4

LID, R. AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 2100001

17215-387-000

Unavailable

5

GROMMET, SIDE COVER | Use from Frame SN 2100001

17245-369-000

$7.43

6

TUBE, R. AIR CLEANER CONNECTING (NOT AVAILABLE) | Use from Frame SN 2100001

17253-387-300

Unavailable

7

TUBE, R. AIR CLEANER IN. (NOT AVAILABLE) | Use from Frame SN 2100001

17254-387-300

Unavailable

8

BAND, AIR CLEANER CONNECTING TUBE (56) | Use from Frame SN 2100001 This part replaces 17255-286-000.

95018-56200

$9.55

8

BAND, AIR CLEANER CONNECTING TUBE (56) | Use from Frame SN 2100001 This part replaces 90651-GHB-710.

95018-56200

$9.55

8

BAND, AIR CLEANER CONNECTING TUBE (56) | Use from Frame SN 2100001

95018-56200

$9.55

9

FUNNEL, AIR (NOT AVAILABLE) | Use from Frame SN 2100001

17255-387-000

Unavailable

10

BAND, AIR FUNNEL (NOT AVAILABLE) | Use from Frame SN 2100001

17256-387-000

Unavailable

11

ELEMENT, L. AIR CLEANER | Use from Frame SN 2100001

17311-387-000

Unavailable

12

CASE, L. AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 2100001

17314-387-000

Unavailable

13

LID, L. AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 2100001

17315-387-000

Unavailable

14

TUBE, L. AIR CLEANER CONNECTING (NOT AVAILABLE) | Use from Frame SN 2100001

17353-387-300

Unavailable

15

TUBE, L. AIR CLEANER IN. (NOT AVAILABLE) | Use from Frame SN 2100001

17354-387-300

Unavailable

16

NET, AIR FUNNEL (NOT AVAILABLE) | Use from Frame SN 2100001

17356-387-000

Unavailable

17

GASKET, AIR CLEANER HOUSING (NOT AVAILABLE) | Use from Frame SN 2100001

17357-387-300

Unavailable

18

BAND, AIR CLEANER CONNECTING TUBE (NOT AVAILABLE) | Use from Frame SN 2100001

17358-387-000

Unavailable

19

NUT, FLANGE (6MM) | Use from Frame SN 2100001 This part replaces 18362-720-000.

94050-06000

$1.49

19

NUT, FLANGE (6MM) | Use from Frame SN 2100001

94050-06000

$1.49

20

RUBBER, REGULATOR CUSHION | Use from Frame SN 2100001 This part replaces 31403-300-000.

31403-323-000

$3.38

20

RUBBER, REGULATOR CUSHION | Use from Frame SN 2100001

31403-323-000

$3.38

21

COVER, R. SIDE *R25* (LIGHT RUBY RED) (NOT AVAILABLE) | Use from Frame SN 2100001

83600-369-000HX

Unavailable

21

COVER, R. SIDE *PB5CC* (CANDY RIVIERA BLUE CUSTOM) (NOT AVAILABLE) | Use from Frame SN 2100001

83600-369-000PX

Unavailable

22

COLLAR, COVER SETTING | Use from Frame SN 2100001

83601-357-000

$5.56

23

GROMMET, SIDE COVER | Use from Frame SN 2100001

83621-333-000

$5.80

24

COVER, L. SIDE *R25* (LIGHT RUBY RED) (NOT AVAILABLE) | Use from Frame SN 2100001

83700-369-000HX

Unavailable

24

COVER, L. SIDE *PB5CC* (CANDY RIVIERA BLUE CUSTOM) (NOT AVAILABLE) | Use from Frame SN 2100001

83700-369-000PX

Unavailable

25

EMBLEM, SIDE COVER (NOT AVAILABLE) | Use from Frame SN 2100001

87126-369-740

Unavailable

26

BOLT, AIR CLEANER JOINT (NOT AVAILABLE) | Use from Frame SN 2100001

90141-387-000

Unavailable

27

BOLT, AIR CLEANER ELEMENT MOUNT (NOT AVAILABLE) | Use from Frame SN 2100001

90142-387-000

Unavailable

28

NUT, SPEED (3MM) | Use from Frame SN 2100001 This part replaces 90313-512-000.

90313-567-000

$3.97

28

NUT, SPEED (3MM) | Use from Frame SN 2100001

90313-567-000

$3.97

29

WASHER, SEALING (6MM) | Use from Frame SN 2100001

90416-551-000

Unavailable

30

SCREW, PAN (4X26) | Use from Frame SN 2100001

93500-04016-0A

$1.49

31

SCREW, PAN (5X16) | Use from Frame SN 2100001

93500-05016-0A

$1.49

32

CLIP, TUBE (C6) | Use from Frame SN 2100001

95002-30000

Unavailable

33

TUBE (4.5X6.5X250) | Use from Frame SN 2100001 This part replaces 95003-08025-10.

95003-08030-10S

Unavailable

34

*95003-08001-10M | Use from Frame SN 2100001 This part replaces 95003-08035-10.

95003-08040-10S

Unavailable

35

BOLT, FLANGE (6X20) | Use from Frame SN 2100001 This part replaces 95700-06020-00.

95701-06020-00

$1.55

35

BOLT, FLANGE (6X20) | Use from Frame SN 2100001

95701-06020-00

$1.55
