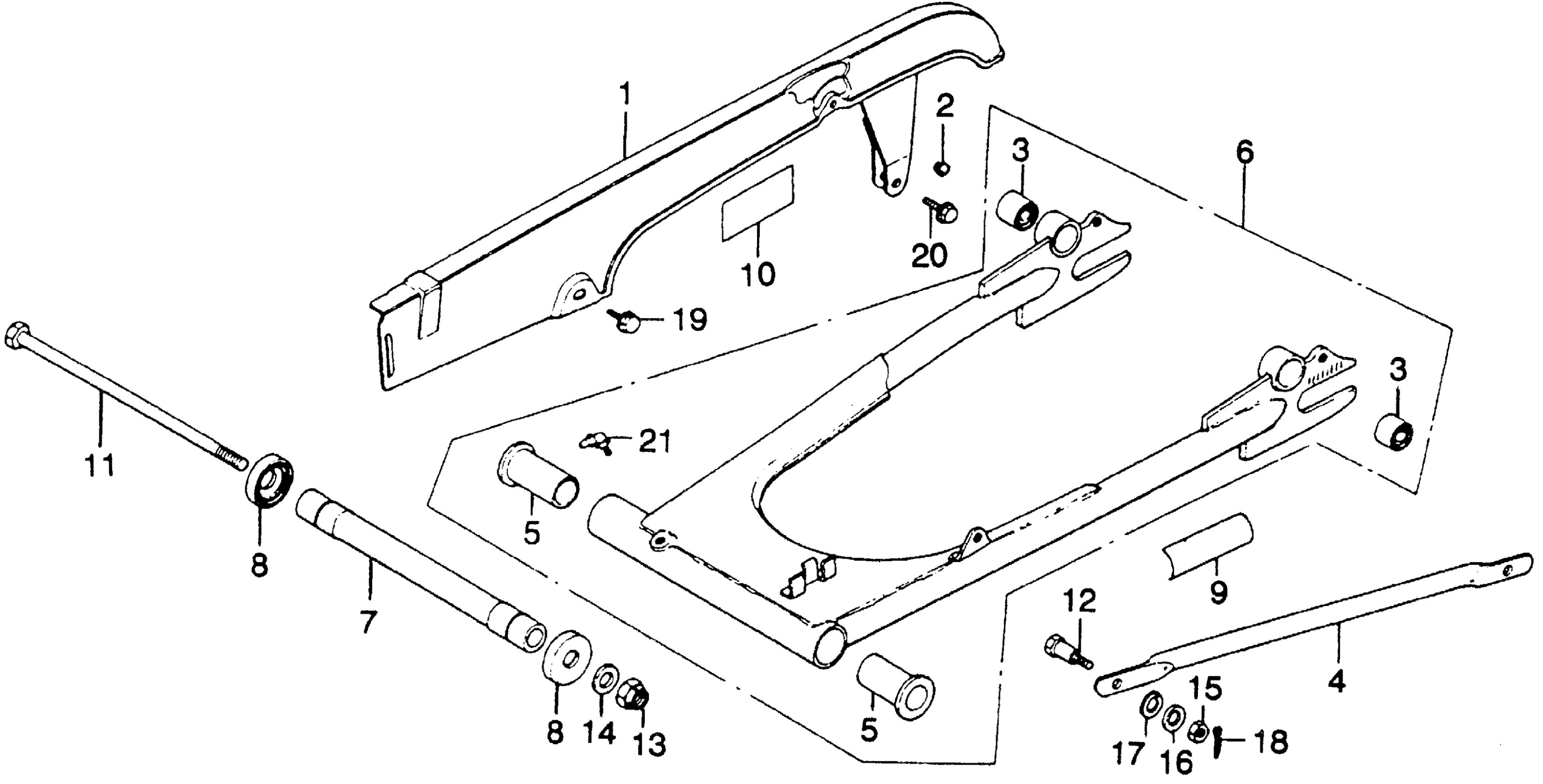

Honda CB360TA (76) MOTORCYCLE, JPN, VIN# CB360-2200001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40510-369-740B

Unavailable

2

PLUG, CHAIN GUARD This part replaces 40514-377-000.

40514-333-000

$2.57

3

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

4

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-333-000

Unavailable

5

BUSH, SWINGARM PIVOT

52108-457-300

Unavailable

6

SWINGARM ASSY., RR. *NH1* (BLACK)

52110-369-740B

Unavailable

7

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-333-000

Unavailable

7

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE) This part replaces 52141-369-000.

52141-333-000

Unavailable

8

CAP, DUST SEAL

52144-362-000

Unavailable

9

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

10

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-387-770

Unavailable

11

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-292-000

Unavailable

11

BOLT, SWINGARM PIVOT (NOT AVAILABLE) This part replaces 90121-369-000.

90121-292-000

Unavailable

12

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

13

NUT, LOCK (14MM)

90354-268-000

$6.78

14

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

14

WASHER (14X26)

90527-634-670

Unavailable

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

WASHER, SPRING (8MM)

94111-10000

$1.49

18

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

18

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

18

PIN, COTTER (2.0X22)

94201-20220

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

18

PIN, COTTER (2.0X35)

94201-20350

$1.49

18

PIN, COTTER (2.0X22)

94201-29220

$1.49

19

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

19

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

20

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

20

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

21

FITTING, GREASE (B.76S)

96201-80000

$2.56
