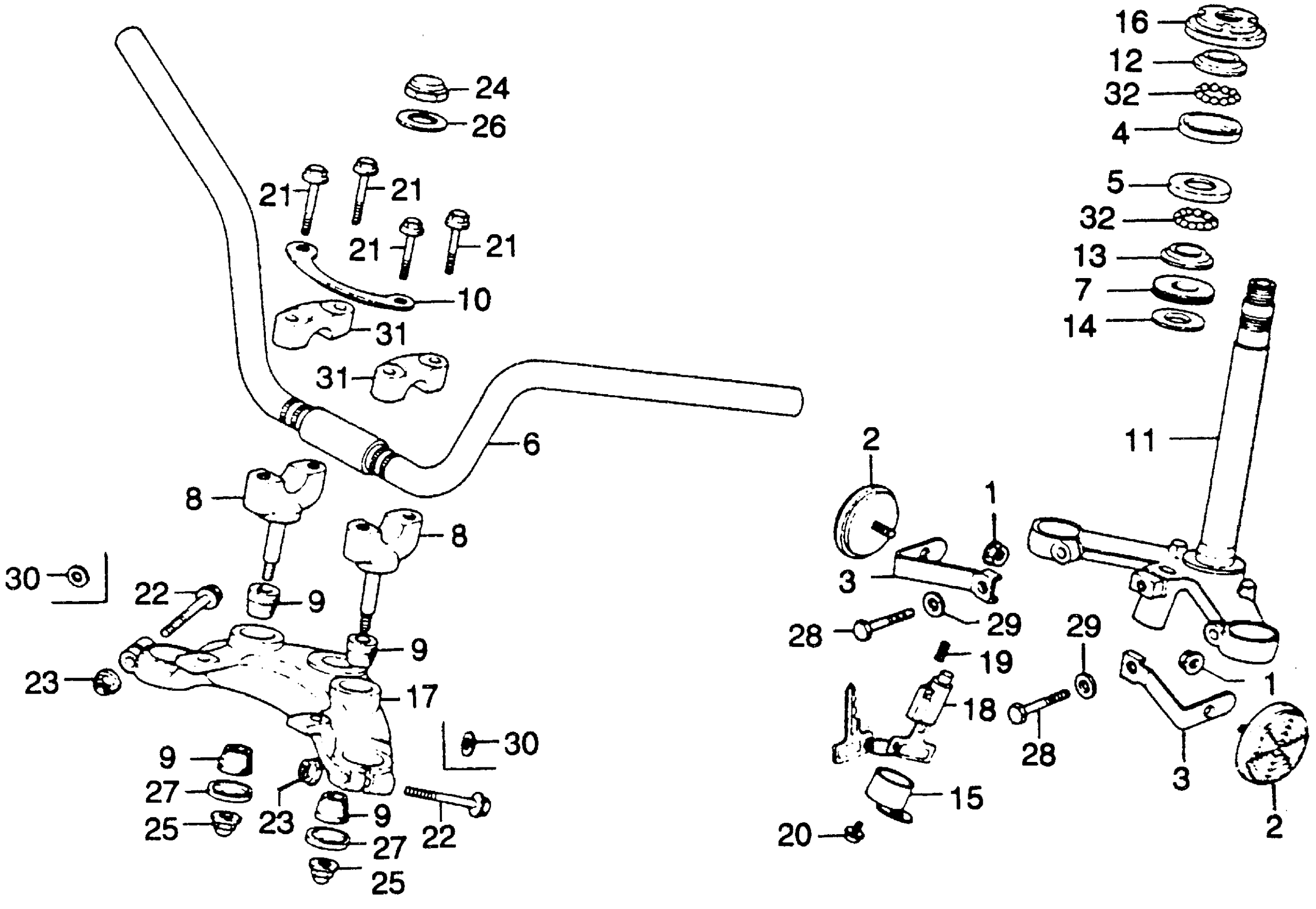

Honda CB360TA (76) MOTORCYCLE, JPN, VIN# CB360-2200001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

3

STAY, FR. REFLEX REFLECTOR (NOT AVAILABLE)

33750-369-000

Unavailable

3

STAY, FR. REFLEX REFLECTOR (NOT AVAILABLE) This part replaces 33750-387-000.

33750-369-000

Unavailable

4

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

4

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

4

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

5

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

5

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

5

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$21.73

6

HANDLEBAR (NOT AVAILABLE)

53100-387-000

Unavailable

7

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

7

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

8

HOLDER, HANDLEBAR (LOWER)

53132-310-010

Unavailable

9

RUBBER, HANDLEBAR CUSHION

53133-237-680

$4.76

10

HOLDER, CABLE (NOT AVAILABLE)

53139-286-000

Unavailable

11

STEM, STEERING *NH1* (BLACK)

53200-333-010B

Unavailable

12

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

12

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

12

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$26.89

13

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

13

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

13

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

14

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

15

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-317-000

Unavailable

16

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

17

BRIDGE, FORK TOP (NOT AVAILABLE)

53231-369-010

Unavailable

18

LOCK, HANDLEBAR | Use up to Frame SN 222760

35010-230-010

Unavailable

18

LOCK, HANDLEBAR | Use up to Frame SN 222760 This part replaces 53600-230-000.

35010-230-010

Unavailable

18

LOCK, HANDLEBAR | Use up to Frame SN 222760 This part replaces 53600-230-004.

35010-230-010

Unavailable

19

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

20

SCREW-WASHER (3X8) (NOT AVAILABLE)

90109-342-000

Unavailable

21

BOLT, FLANGE (8X36)

90111-362-000

$4.80

22

BOLT, FLANGE (7X54)

90155-369-000

$6.01

23

NUT, FLANGE (7MM)

90355-369-000

$4.94

24

NUT, STEERING STEM This part replaces 90304-323-670.

90304-415-000

$19.83

24

NUT, STEERING STEM

90304-415-000

$19.83

24

NUT, STEERING STEM This part replaces 95020-11300.

90304-415-000

$19.83

25

NUT, CAP (8MM)

90443-107-000

$2.89

26

WASHER, STEERING STEM

90503-283-000

$4.37

27

WASHER, RUBBER

90535-292-000

$2.03

28

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

28

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

29

WASHER, PLAIN (8MM)

94101-08000

$1.49

31

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

32

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
