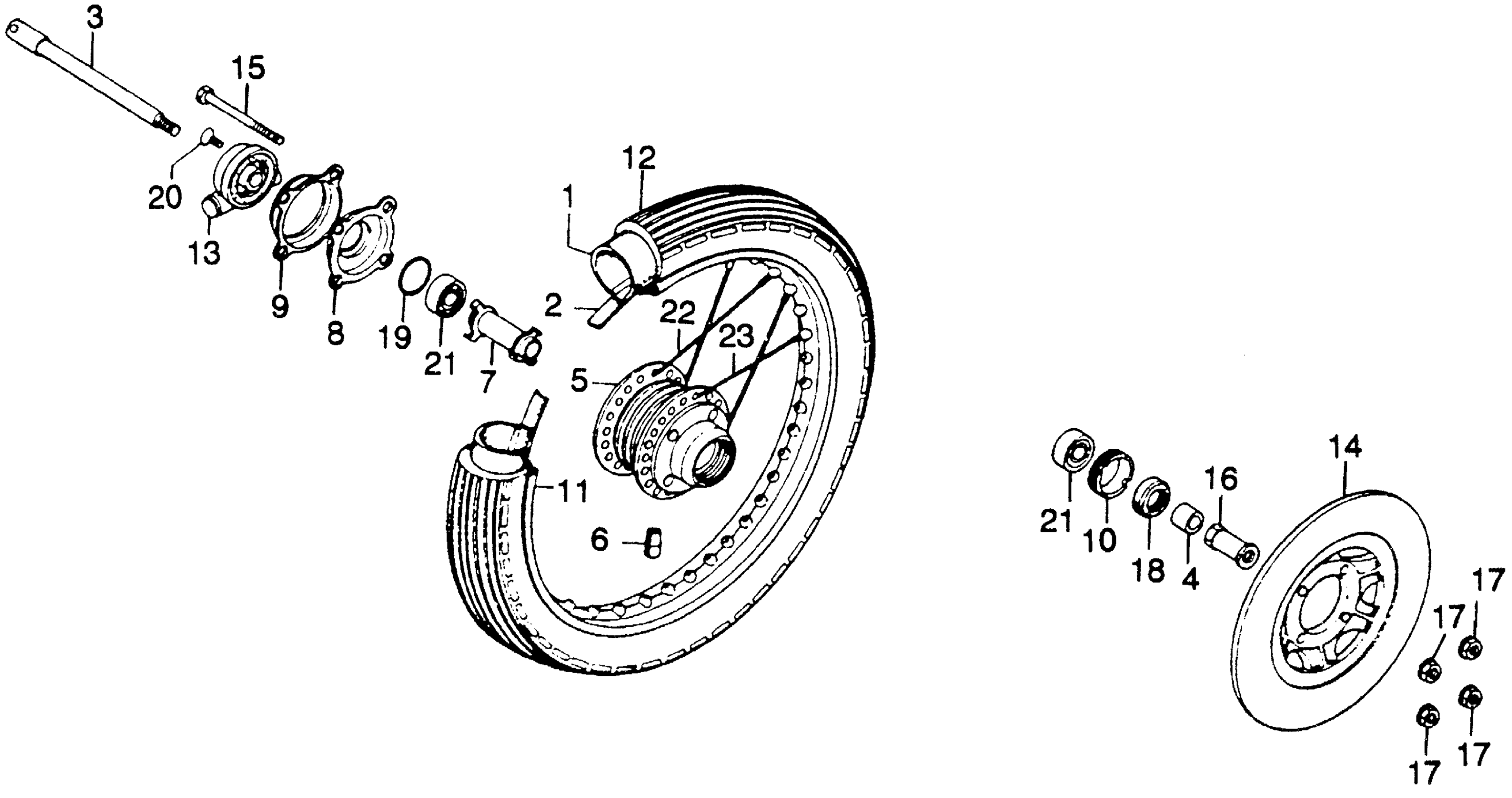

Honda CB360TA (76) MOTORCYCLE, JPN, VIN# CB360-2200001 FRONT WHEEL + DISC Diagram

#

Description
Price

1

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

2

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-312-000

Unavailable

4

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE) This part replaces 44311-300-000.

44311-371-980

Unavailable

5

HUB, FR. WHEEL (NOT AVAILABLE)

44601-317-702

Unavailable

6

BALANCER, WHEEL (20G)

44606-283-000

$8.89

6

BALANCER, WHEEL (15G)

44607-283-000

$8.08

6

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

6

BALANCER, WHEEL (5G)

44609-283-000

$3.93

7

COLLAR, FR. AXLE DISTANCE

44620-317-701

Unavailable

8

RETAINER, GEAR BOX

44641-333-000

Unavailable

9

COVER, GEAR BOX RETAINER (NOT AVAILABLE)

44642-317-701

Unavailable

10

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

11

RIM, FR. WHEEL (NOT AVAILABLE)

44701-317-701

Unavailable

12

TIRE, FR. (3.00-18) (BS) (NOT AVAILABLE)

44711-333-003

Unavailable

12

TIRE, FR. (3.00-18) (BS) (NOT AVAILABLE) This part replaces 44711-377-003.

44711-333-003

Unavailable

12

TIRE, FR. (3.00-18) (BS) (NOT AVAILABLE) This part replaces 44711-377-671.

44711-333-003

Unavailable

13

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)

44800-317-700

Unavailable

14

DISK, FR. BRAKE (NOT AVAILABLE)

45120-369-000

Unavailable

15

BOLT (8X90) (NOT AVAILABLE)

90122-317-702

Unavailable

16

NUT, AXLE (12MM) (NOT AVAILABLE) This part replaces 90305-333-000.

90306-425-870

Unavailable

16

NUT, AXLE (12MM) (NOT AVAILABLE)

90306-425-870

Unavailable

17

NUT, HEX. (8MM)

90309-357-000

$3.40

18

DUST SEAL (22X36X8)

91252-300-003

$10.73

19

O-RING (54X2) This part replaces 91302-317-700.

91307-MB0-003

$3.23

19

O-RING (54X2) This part replaces 91307-MB0-000.

91307-MB0-003

$3.23

19

O-RING (54X2)

91307-MB0-003

$3.23

20

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

21

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

21

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

22

SPOKE (8X196.5)

97311-69233-10

$4.49

23

SPOKE BS (8X196)

97716-69232-10

$4.49
