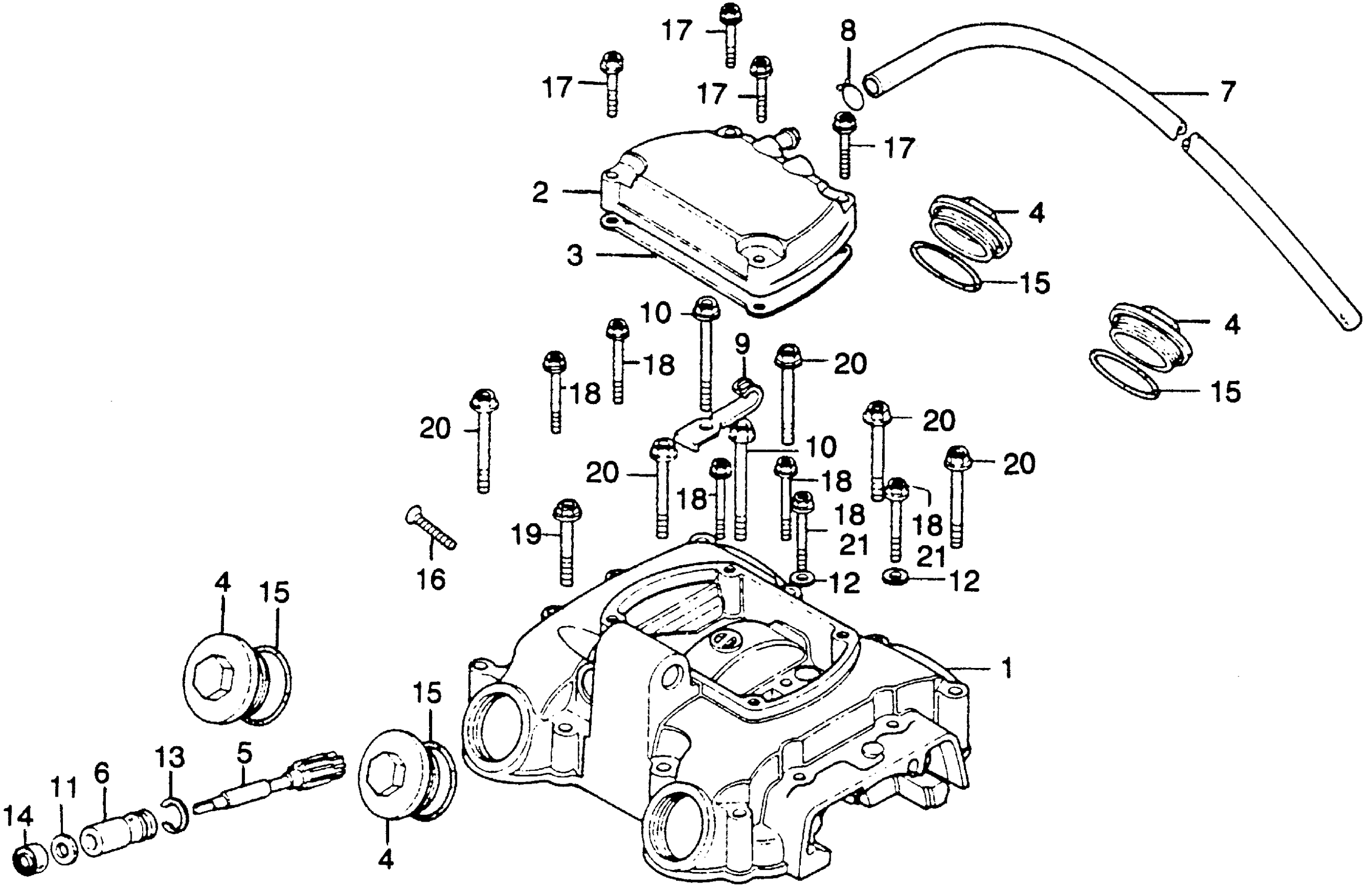

Honda CB360TA (76) MOTORCYCLE, JPN, VIN# CB360-2200001 CYLINDER HEAD COVER Diagram

COVER, CYLINDER HEAD (NOT AVAILABLE)

12301-369-000

Unavailable

COVER, BREATHER

12320-369-000

Unavailable

GSKT, BREATER COVER This part replaces 12329-369-000.

12329-369-306

Unavailable

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

CAP, VALVE ADJ.

12361-300-000

Unavailable

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

GEAR, TACHOMETER

12431-333-010

Unavailable

COLLAR, TACHOMETER GEAR

12435-369-000

Unavailable

*95005-11001-30M This part replaces 15761-292-030.

95005-11570-30

Unavailable

CLIP, BREATHER TUBE

15772-292-010

$2.92

CLAMP, COIL WIRE (NOT AVAILABLE)

32957-292-000

Unavailable

BOLT, FLANGE (8X60) (NOT AVAILABLE)

90017-333-000

Unavailable

WASHER, THRUST (6.7MM)

90458-324-010

$2.39

WASHER A (6MM)

90478-700-000

$1.49

SET-RING (12.7MM) (NOT AVAILABLE)

90601-333-000

Unavailable

OIL SEAL (6.5X14.5X7) (ARAI) This part replaces 91201-324-013.

91201-324-023

$3.95

OIL SEAL (6.5X14.5X7) (ARAI)

91201-324-023

$3.95

O-RING (30.8MM)

91302-001-020

$3.75

SCREW, OVAL (5X25)

93700-05025-0A

$1.49

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

BOLT, FLANGE (8X50) This part replaces 95700-08050-00.

95701-08050-00

$2.28

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

BOLT, FLANGE (6X45) (SOURCE: VINTAGE PARTS INC.)

95800-06045-00

Unavailable
