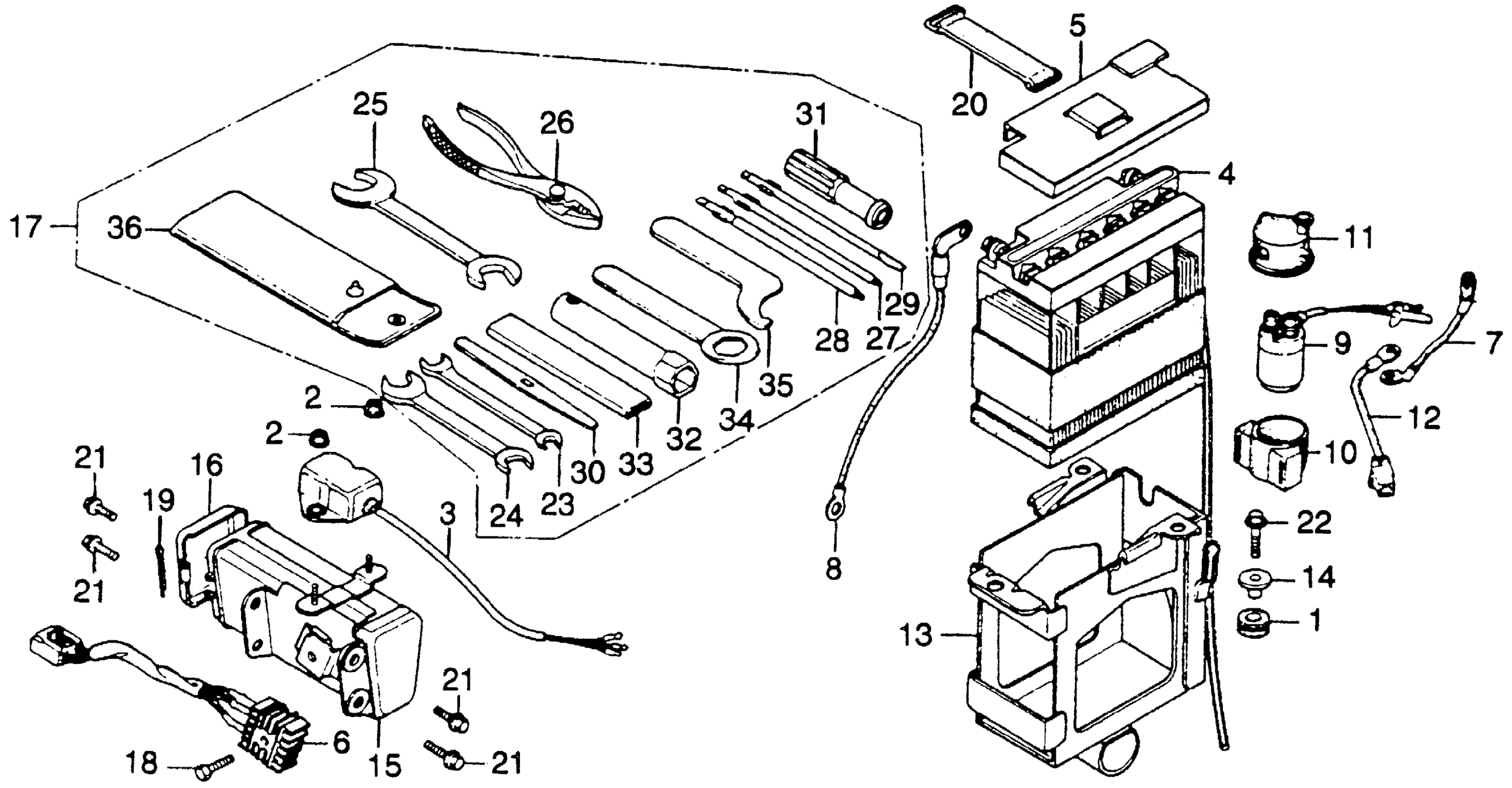

Honda CB360TA (76) MOTORCYCLE, JPN, VIN# CB360-2200001 BATTERY + REGULATOR Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

2

NUT, FLANGE (6MM)

94050-06000

$1.49

3

REGULATOR (NOT AVAILABLE)

31400-292-670

Unavailable

4

BATTERY (12V12) This part replaces 31500-283-000.

31500-460-672AH

Unavailable

4

BATTERY (12V12) This part replaces 31500-292-670.

31500-460-672AH

Unavailable

4

BATTERY (12V12) This part replaces 31500-310-671.

31500-460-672AH

Unavailable

4

BATTERY (12V12) This part replaces 31500-387-772.

31500-460-672AH

Unavailable

4

BATTERY (12V12) This part replaces 31500-460-672.

31500-460-672AH

Unavailable

4

BATTERY (12V12) This part replaces 98202-22250.

31500-460-672AH

Unavailable

4

BATTERY (12V12) This part replaces 98203-22250.

31500-460-672AH

Unavailable

5

COVER, BATTERY (NOT AVAILABLE) This part replaces 31532-292-000.

31532-292-010

Unavailable

5

COVER, BATTERY (NOT AVAILABLE)

31532-292-010

Unavailable

5

COVER, BATTERY (NOT AVAILABLE) This part replaces 31532-369-000.

31532-292-010

Unavailable

6

RECTIFIER SET, SILICON (NOT AVAILABLE) This part replaces 31700-358-013.

31700-358-305

Unavailable

6

RECTIFIER SET, SILICON (NOT AVAILABLE)

31700-358-305

Unavailable

7

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-387-000

Unavailable

8

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-286-000

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC

35850-375-000

Unavailable

10

RUBBER, MAGNETIC SHOCK This part replaces 35856-KR3-670.

35856-413-010

$10.15

10

RUBBER, MAGNETIC SHOCK This part replaces 35856-286-010.

35856-413-010

$10.15

10

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

10

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

11

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-369-000

Unavailable

12

SUB-WIRE, MAGNETIC (NOT AVAILABLE)

35858-387-000

Unavailable

13

BOX, BATTERY *NH1* (BLACK)

50325-387-000ZA

Unavailable

14

COLLAR C, MOUNTING

80109-329-000

Unavailable

15

BOX, TOOL *NH1* (BLACK)

83500-387-000ZA

Unavailable

16

CAP, TOOL BOX *NH1* (BLACK)

83541-286-000B

Unavailable

17

TOOL SET (NOT AVAILABLE)

89010-369-000

Unavailable

18

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

18

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

18

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

19

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

19

PIN, COTTER (2.0X35)

94201-20350

$1.49

20

BAND B2, BATTERY This part replaces 95012-13000.

95012-13001

$5.28

20

BAND B2, BATTERY

95012-13001

$5.28

21

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

21

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

22

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

22

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

23

WRENCH (8X12) (OPEN END)

99001-08120

$2.75

24

WRENCH (10X14) (OPEN END)

99001-10140

$2.92

25

WRENCH (17X19) (OPEN END)

99001-17190

$4.14

26

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

27

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

28

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

29

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

30

LEVER, TIRE

99003-40000

$1.49

31

GRIP

99003-50000

$3.27

32

WRENCH, BOX (P21)

99004-21001

$3.44

33

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

34

WRENCH, EYE (22MM)

99006-22000

$4.16

35

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.40

36

BAG, TOOL

89101-ME5-670

Unavailable

36

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable
