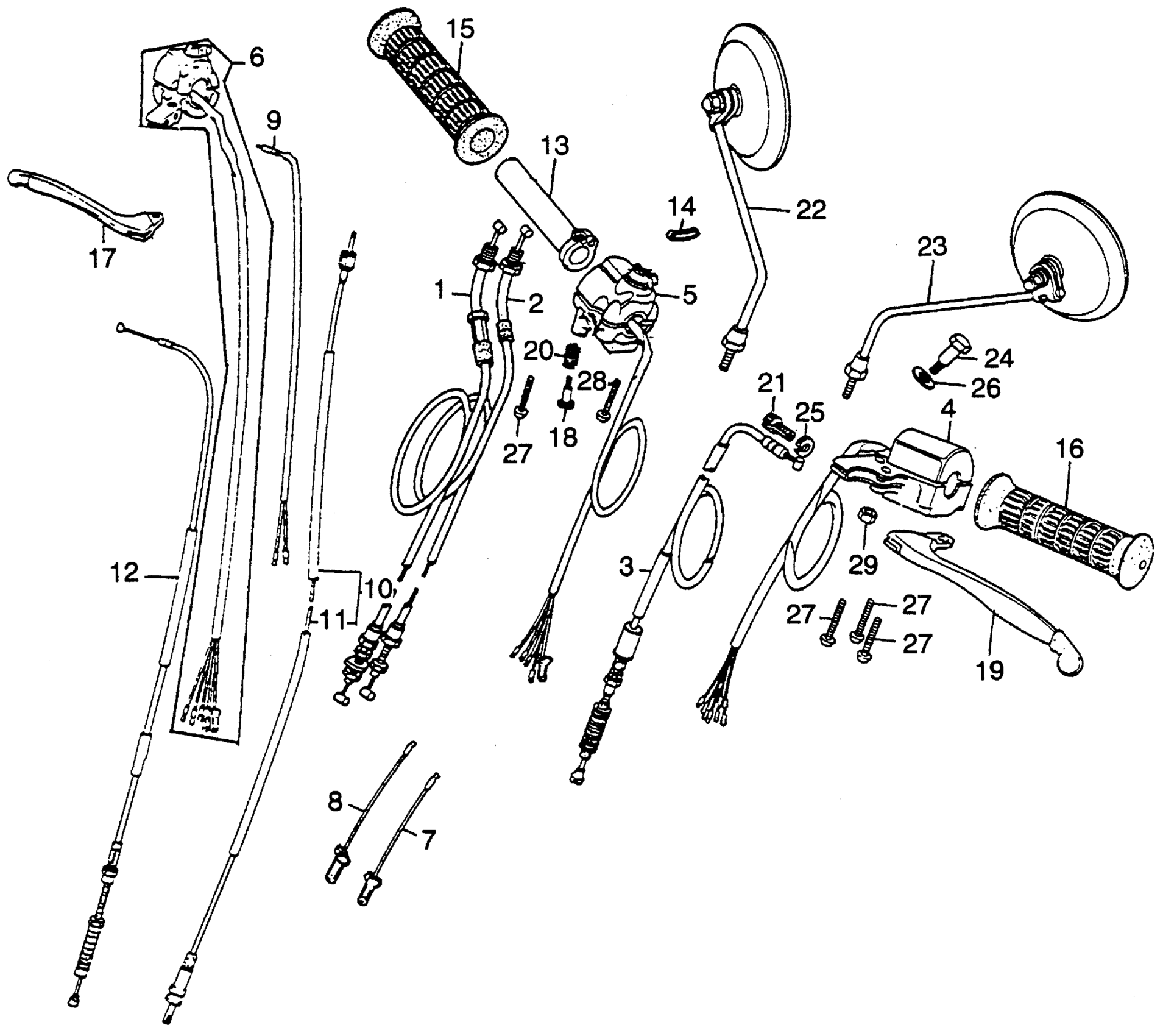

Honda CB360GA MOTORCYCLE, JPN, VIN# CB360-1000001 HANDLE SWITCH + LEVER + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE This part replaces 17910-369-000.

17910-370-000

Unavailable

1

CABLE A, THROTTLE

17910-370-000

Unavailable

2

CABLE B, THROTTLE

17920-369-000

Unavailable

3

CABLE, CLUTCH

22870-369-000

Unavailable

4

SWITCH ASSY., TURN SIGNAL & HORN (NOT AVAILABLE)

35250-369-671

Unavailable

5

SWITCH ASSY., STARTER LIGHTING

35300-369-671

Unavailable

7

SUB-WIRE A (NOT AVAILABLE)

35301-310-000

Unavailable

8

SUB-WIRE B (NOT AVAILABLE)

35302-310-000

Unavailable

10

CABLE ASSY., SPEEDOMETER

44830-KB7-000

Unavailable

10

CABLE ASSY., SPEEDOMETER This part replaces 44830-313-000.

44830-KB7-000

Unavailable

10

CABLE ASSY., SPEEDOMETER This part replaces 44830-369-700.

44830-KB7-000

Unavailable

10

CABLE ASSY., SPEEDOMETER This part replaces 44830-437-670.

44830-KB7-000

Unavailable

11

CABLE ASSY., SPEEDOMETER

44830-KB7-000

Unavailable

11

CABLE ASSY., SPEEDOMETER This part replaces 44830-456-000.

44830-KB7-000

Unavailable

11

CABLE ASSY., SPEEDOMETER This part replaces 44831-456-000.

44830-KB7-000

Unavailable

13

PIPE, THROTTLE GRIP

53141-300-010

$20.93

14

ADJUSTER, THROTTLE GRIP (NOT AVAILABLE)

53163-300-020

Unavailable

15

GRIP, R. HANDLEBAR

53165-342-670

$15.64

16

GRIP, L. HANDLEBAR

53166-342-670

$13.49

18

BOLT, THROTTLE GRIP ADJUSTING (NOT AVAILABLE)

53190-300-000

Unavailable

19

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

19

LEVER, L. HANDLE

53178-369-700

$28.35

19

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

19

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

19

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$28.35

20

SPRING, THROTTLE ADJUSTING (NOT AVAILABLE)

53191-300-000

Unavailable

22

MIRROR, R. (NOT AVAILABLE)

88100-369-000

Unavailable

23

MIRROR, R. (NOT AVAILABLE)

88100-369-000

Unavailable

23

MIRROR, R. (NOT AVAILABLE) This part replaces 88120-369-000.

88100-369-000

Unavailable

24

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

25

NUT, FIXING

90321-315-670

$7.31

25

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

26

WASHER (7X12)

90501-310-000

$1.74

27

SCREW, PAN (5X25)

93500-05025-0A

$1.49

28

SCREW, PAN (5X32)

93500-05032-0A

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49
