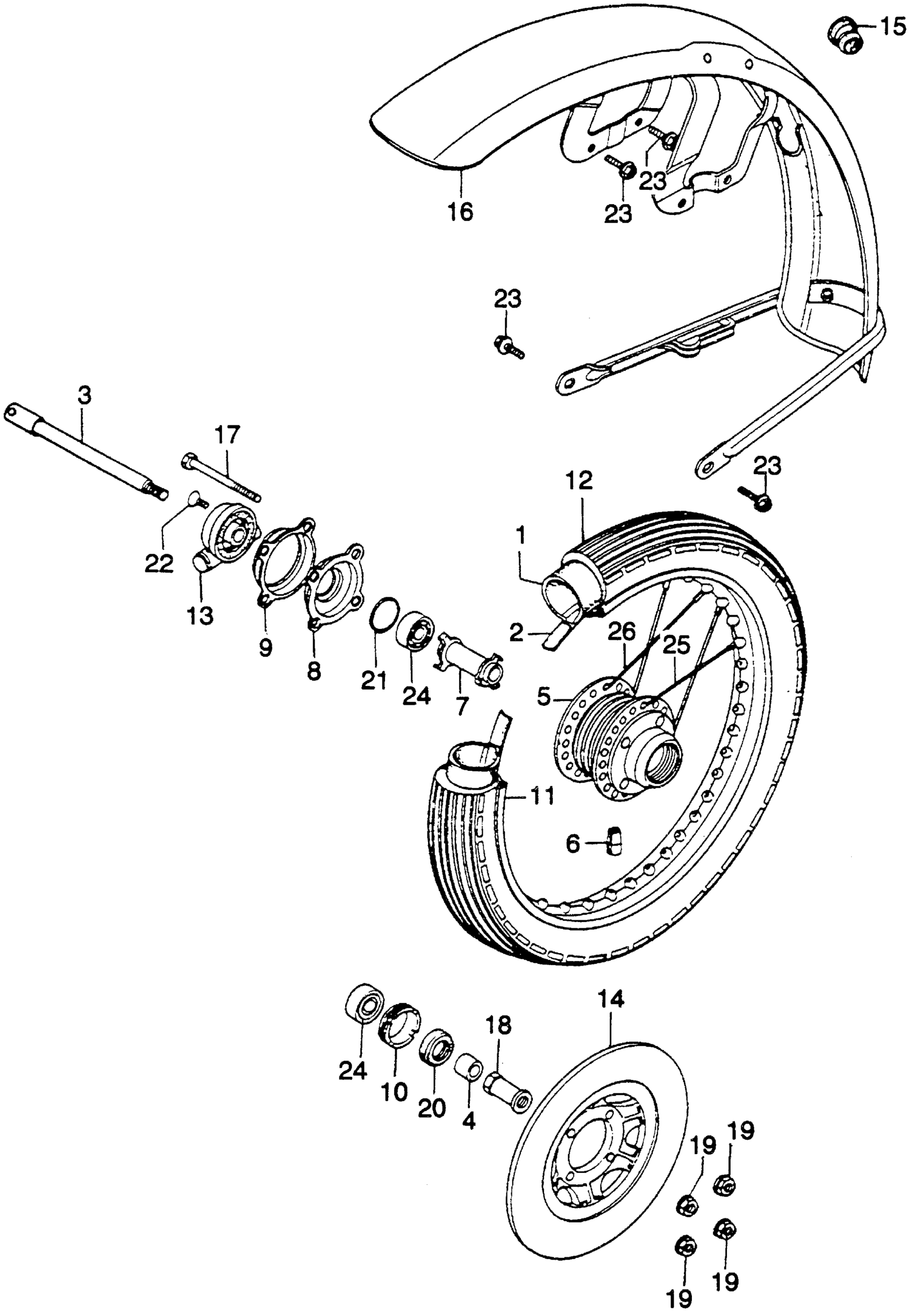

Honda CB360GA MOTORCYCLE, JPN, VIN# CB360-1000001 CB360G FRONT FENDER + FRONT WHEEL + DISC Diagram

#

Description
Price

1

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-000.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-304-003.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-307-006.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-315-009.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 44712-305-003.

42712-KC6-005

Unavailable

2

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-312-000

Unavailable

4

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE) This part replaces 44311-300-000.

44311-371-980

Unavailable

4

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44311-371-980

Unavailable

5

HUB, FR. WHEEL (NOT AVAILABLE)

44601-317-702

Unavailable

6

BALANCER, WHEEL (20G)

44606-283-000

$8.89

6

BALANCER, WHEEL (15G)

44607-283-000

$8.08

6

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

6

BALANCER, WHEEL (5G)

44609-283-000

$3.93

7

COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE)

44620-317-701

Unavailable

8

RETAINER, GEAR BOX

44641-333-000

Unavailable

9

COVER, GEAR BOX RETAINER (NOT AVAILABLE)

44642-317-701

Unavailable

10

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

11

RIM, FR. WHEEL (NOT AVAILABLE)

44701-317-701

Unavailable

12

TIRE, FR. (3.00-18) (BS) (NOT AVAILABLE)

44711-333-003

Unavailable

13

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)

44800-317-700

Unavailable

14

DISK, FR. BRAKE (NOT AVAILABLE)

45120-369-000

Unavailable

15

GROMMET, CABLE This part replaces 45451-283-000.

45451-367-690

$4.04

15

GROMMET, CABLE

45451-367-690

$4.04

16

FENDER, FR. (NOT AVAILABLE) This part replaces 61100-369-000.

61100-377-720

Unavailable

16

FENDER, FR. (NOT AVAILABLE)

61100-377-720

Unavailable

17

BOLT (8X90) (NOT AVAILABLE)

90122-317-702

Unavailable

18

NUT, AXLE (12MM) (NOT AVAILABLE) This part replaces 90305-333-000.

90306-425-870

Unavailable

18

NUT, AXLE (12MM) (NOT AVAILABLE)

90306-425-870

Unavailable

19

NUT, HEX. (8MM)

90309-357-000

$3.40

20

DUST SEAL (22X36X8)

91252-300-003

$10.73

21

O-RING (54X2) This part replaces 91302-317-700.

91307-MB0-003

$3.23

21

O-RING (54X2) This part replaces 91307-MB0-000.

91307-MB0-003

$3.23

21

O-RING (54X2)

91307-MB0-003

$3.23

22

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

23

BOLT, FLANGE (6X14) This part replaces 95700-06014.

95701-06014-00

$1.49

23

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

23

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

24

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

24

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

25

SPOKE (8X196.5)

97311-69233-10

$4.49

26

SPOKE BS (8X196)

97716-69232-10

$4.49
