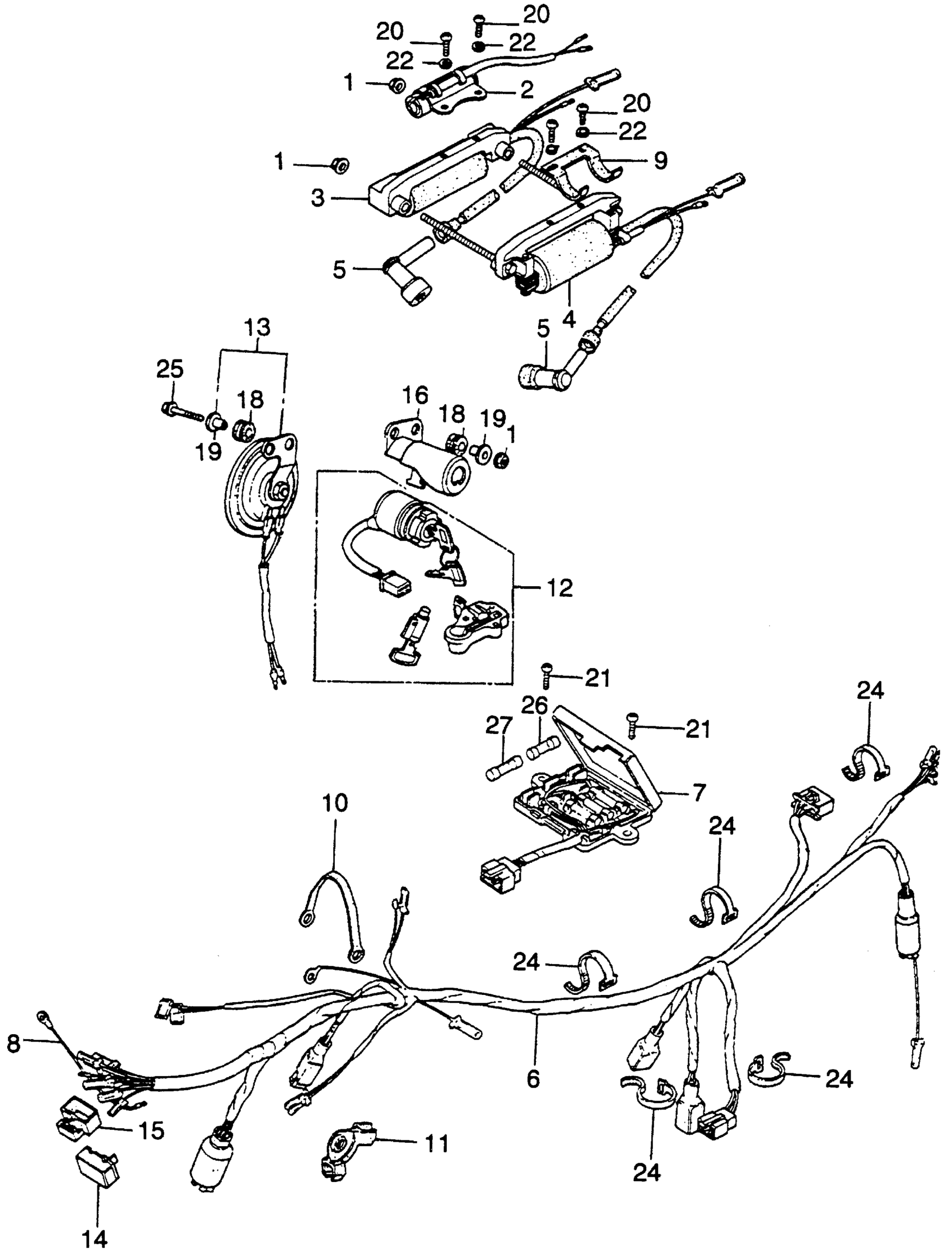

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

CONDENSER (DENSO) This part replaces 30250-369-003.

30250-369-004

$35.45

2

CONDENSER (DENSO)

30250-369-004

$35.45

3

COIL ASSY., R. IGNITION (TOYO) (NOT AVAILABLE)

30510-369-003

Unavailable

3

COIL ASSY., R. IGNITION (TOYO) (NOT AVAILABLE) This part replaces 30510-369-004.

30510-369-003

Unavailable

4

COIL ASSY., L. IGNITION (TOYO) (NOT AVAILABLE)

30520-369-003

Unavailable

4

COIL ASSY., L. IGNITION (TOYO) (NOT AVAILABLE) This part replaces 30520-369-004.

30520-369-003

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

6

WIRE HARNESS (NOT AVAILABLE)

32100-369-000

Unavailable

7

BOX ASSY., FUSE This part replaces 32110-369-003.

321W1-369-013

Unavailable

7

BOX ASSY., FUSE This part replaces 32110-369-013.

321W1-369-013

Unavailable

8

WIRE, HANDLE SWITCH GROUND (NOT AVAILABLE)

32111-319-000

Unavailable

9

CLAMP, WIRE HARNESS CONNECTING (NOT AVAILABLE)

32165-369-000

Unavailable

10

CLIP A, WIRE HARNESS (NOT AVAILABLE)

32171-369-000

Unavailable

11

HOLDER, WIRE HARNESS (NOT AVAILABLE)

32174-369-000

Unavailable

12

SWITCH KIT, MAIN This part replaces 35010-341-702.

35010-374-671

$172.93

12

SWITCH KIT, MAIN This part replaces 35010-374-670.

35010-374-671

$172.93

12

SWITCH KIT, MAIN

35010-374-671

$172.93

12

SWITCH KIT, MAIN This part replaces 35011-369-740.

35010-374-671

$172.93

12

SWITCH KIT, MAIN This part replaces 35020-323-672.

35010-374-671

$172.93

12

SWITCH KIT, MAIN This part replaces 35020-341-700.

35010-374-671

$172.93

12

SWITCH KIT, MAIN This part replaces 35020-341-701.

35010-374-671

$172.93

13

HORN ASSY. (MITSUBA) (NOT AVAILABLE)

38100-369-004

Unavailable

14

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

14

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

14

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

14

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

15

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-107-670

Unavailable

16

BRACKET, MAIN SWITCH *NH1* (BLACK) (NOT AVAILABLE)

50375-369-000B

Unavailable

17

CLIP, TACHOMETER CABLE (NOT AVAILABLE)

50402-351-000

Unavailable

18

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

19

COLLAR, COVER SETTING

83601-357-000

$5.56

20

SCREW, PAN (5X12)

93500-05012-0H

$1.49

21

SCREW, PAN (5X16)

93500-05016-0A

$1.49

22

WASHER, SPRING (5MM)

94111-05000

$1.49

23

WASHER, SPRING (6MM)

94111-06000

$1.49

24

BAND B3, CABLE HARNESS

95014-62300

$2.25

25

BOLT, FLANGE (6X40) This part replaces 95700-06040.

95701-06040-00

$1.80

25

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

25

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

26

FUSE A (7A)

98200-10700

$1.49

27

FUSE A (15A)

98200-11500

$1.49
