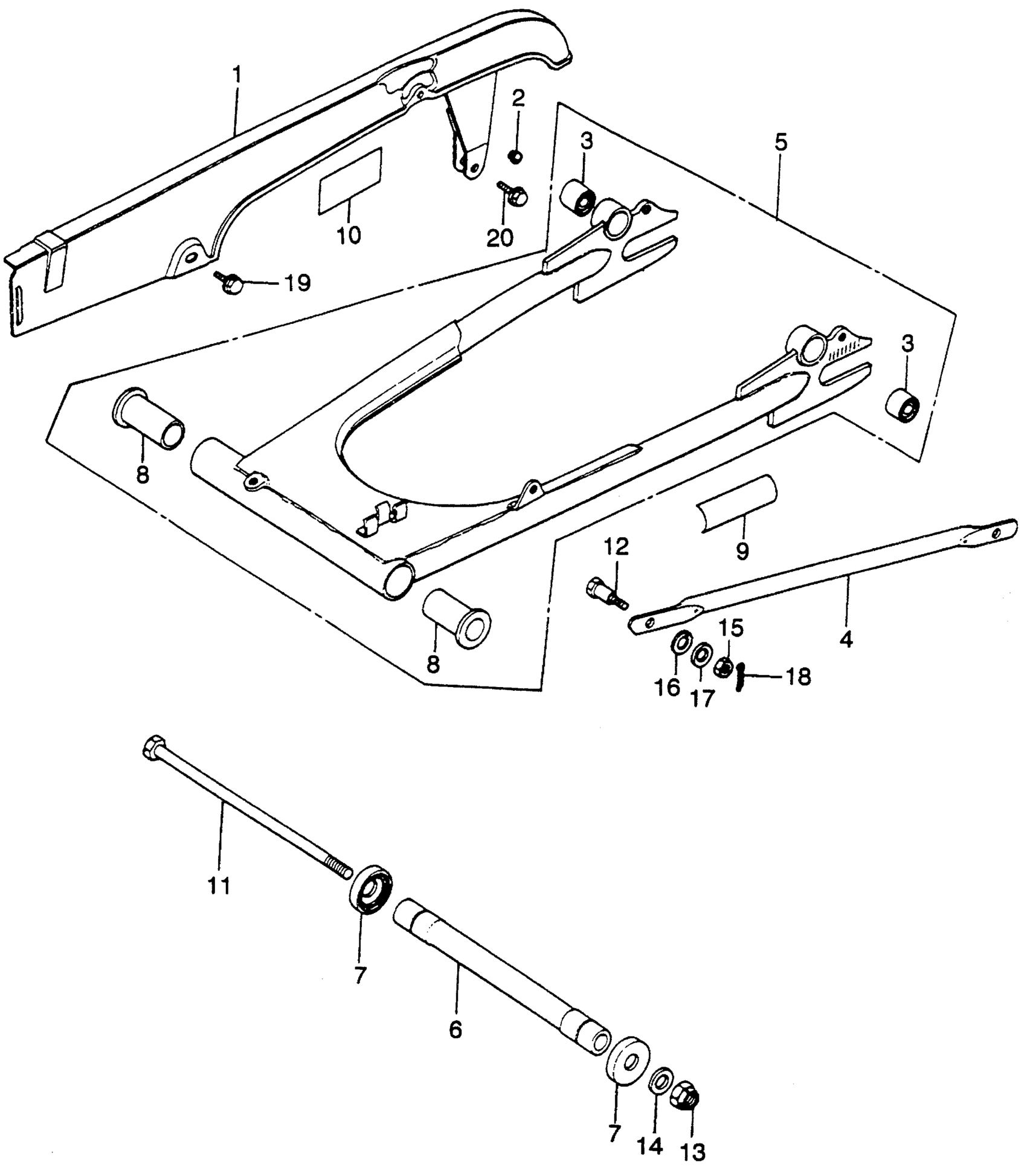

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 SWINGARM + CHAIN CASE Diagram

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40510-369-000B

Unavailable

PLUG, CHAIN GUARD

40514-333-000

$2.57

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-333-000

Unavailable

SWINGARM, RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-369-000B

Unavailable

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-333-000

Unavailable

CAP, DUST SEAL

52144-362-000

Unavailable

BUSH, SWINGARM PIVOT

52108-457-300

Unavailable

BUSH, SWINGARM PIVOT This part replaces 52174-362-000.

52108-457-300

Unavailable

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

MARK, TIRE CAUTION (NOT AVAILABLE)

87507-369-670

Unavailable

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-292-000

Unavailable

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

NUT, LOCK (14MM)

90354-268-000

$6.78

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

WASHER (14X26)

90527-634-670

Unavailable

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012.

95701-06012-00

$1.62

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12) This part replaces 95700-06012-10.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X12) This part replaces 95800-06012.

95701-06012-00

$1.62

BOLT, FLANGE (6X12) This part replaces 95900-06012-02.

95701-06012-00

$1.62

BOLT, FLANGE (6X20) This part replaces 95700-06020.

95701-06020-00

$1.55

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (6X20) This part replaces 95900-06020-00.

95701-06020-00

$1.55
