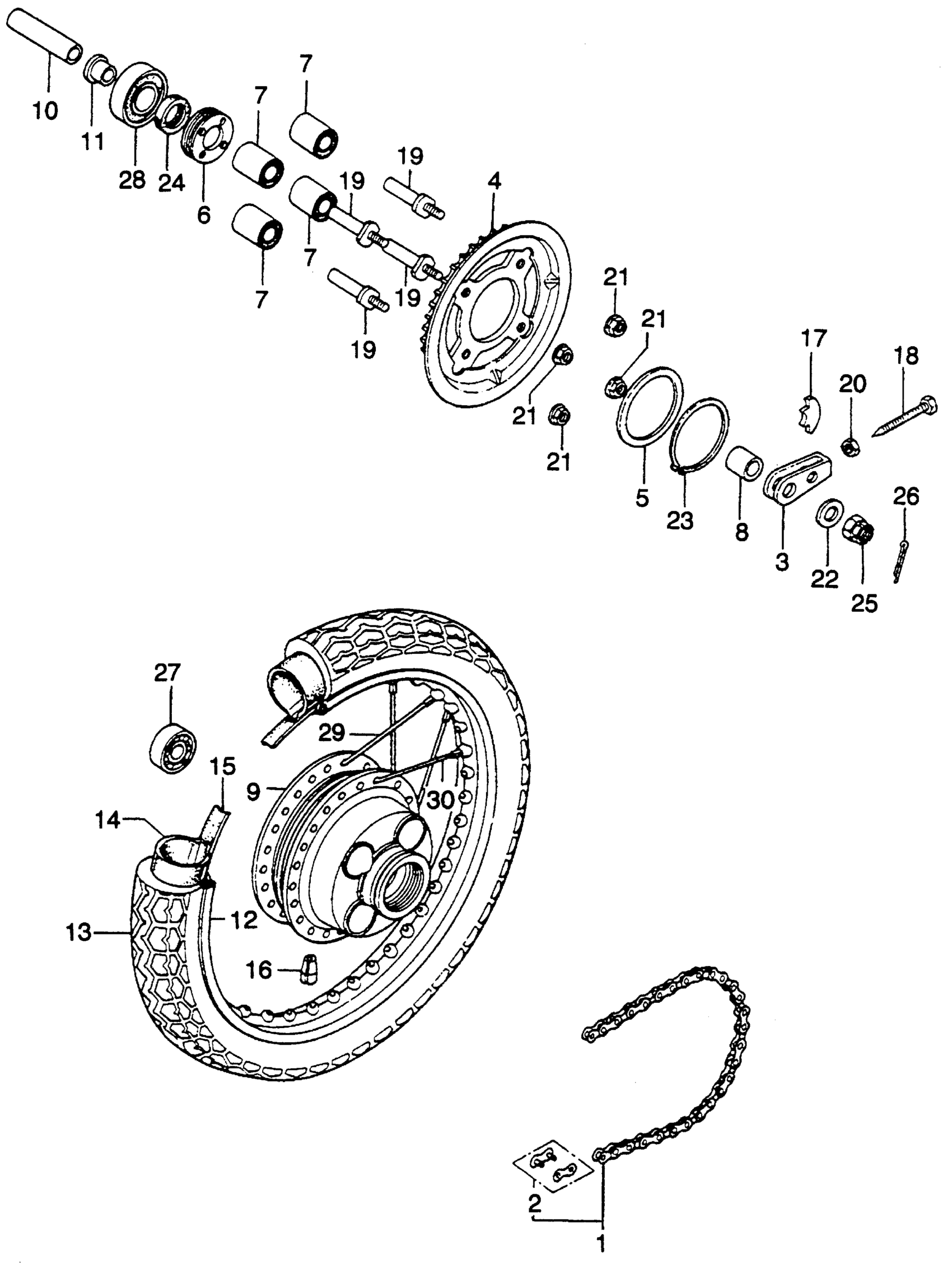

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 REAR WHEEL Diagram

#

Description
Price

1

CHAIN, DRIVE (94L) (DAIDO) (NOT AVAILABLE)

40530-369-305

Unavailable

2

MASTER LINK (DAIDO) (NOT AVAILABLE)

40531-356-305

Unavailable

3

ADJUSTER, DRIVE CHAIN This part replaces 40543-312-010.

40543-471-000

Unavailable

3

ADJUSTER, DRIVE CHAIN

40543-471-000

Unavailable

4

SPROCKET ASSY., FINAL DRIVEN (NOT AVAILABLE)

41200-369-000

Unavailable

5

WASHER (70MM)

41202-286-000

Unavailable

6

RETAINER, RR. WHEEL BEARING

41231-286-000

$29.11

7

BUSH, RR. WHEEL DAMPER

41241-286-000

Unavailable

8

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE) This part replaces 42311-286-000.

42311-349-690

Unavailable

8

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-349-690

Unavailable

9

HUB, RR. WHEEL (NOT AVAILABLE)

42601-333-000

Unavailable

10

COLLAR A, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-286-000

Unavailable

11

COLLAR B, RR. AXLE DISTANCE (NOT AVAILABLE)

42625-286-000

Unavailable

12

RIM, RR. WHEEL This part replaces 42701-290-003.

42701-413-671

Unavailable

12

RIM, RR. WHEEL This part replaces 42701-413-003.

42701-413-671

Unavailable

12

RIM, RR. WHEEL

42701-413-671

Unavailable

13

TIRE, RR. (3.50S-18) (NITTO) (NOT AVAILABLE) This part replaces 42711-323-013.

42711-388-671

Unavailable

13

TIRE, RR. (3.50S-18) (NITTO) (NOT AVAILABLE)

42711-388-671

Unavailable

14

TUBE, TIRE (3.50-18) This part replaces 08400-31300.

42712-446-631

Unavailable

14

TUBE, TIRE (3.50-18) This part replaces 08400-44600.

42712-446-631

Unavailable

14

TUBE, TIRE (3.50-18) This part replaces 42712-286-000.

42712-446-631

Unavailable

14

TUBE, TIRE (3.50-18) This part replaces 42712-287-000.

42712-446-631

Unavailable

14

TUBE, TIRE (3.50-18) This part replaces 42712-287-003.

42712-446-631

Unavailable

14

TUBE, TIRE (3.50-18) This part replaces 42712-437-970.

42712-446-631

Unavailable

14

TUBE, TIRE (3.50-18) This part replaces 42712-437-971.

42712-446-631

Unavailable

14

TUBE, TIRE (3.50-18)

42712-446-631

Unavailable

15

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

16

BALANCER, WHEEL (20G)

44606-283-000

$8.89

16

BALANCER, WHEEL (15G)

44607-283-000

$8.08

16

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

16

BALANCER, WHEEL (5G)

44609-283-000

$3.93

17

STOPPER, CHAIN ADJUSTER

52136-333-000

Unavailable

18

BOLT, CHAIN ADJUSTING

90119-283-000

$11.41

20

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

21

NUT, HEX. (10MM)

90308-357-000

$4.85

22

WASHER (16.5X30) (NOT AVAILABLE)

90523-286-000

Unavailable

23

CIRCLIP (OUTER) (69MM) (NOT AVAILABLE)

90665-286-000

Unavailable

24

DUST SEAL (30X45X9.5)

91253-286-013

$6.81

25

NUT, CASTLE (16MM) (SOURCE: VINTAGE PARTS INC.) | Use from Frame SN 1059565

94011-16200-0S

Unavailable

25

NUT, CASTLE (16MM) (NOT AVAILABLE) | Use up to Frame SN 1059564

94011-16220-0S

Unavailable

26

PIN, COTTER (4.0X30)

94201-40300

$1.49

27

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48

28

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03

29

SPOKE B (9X158.5)

97339-52157-10

$4.16

30

SPOKE B (9X158)

97715-52156-10

$3.78
