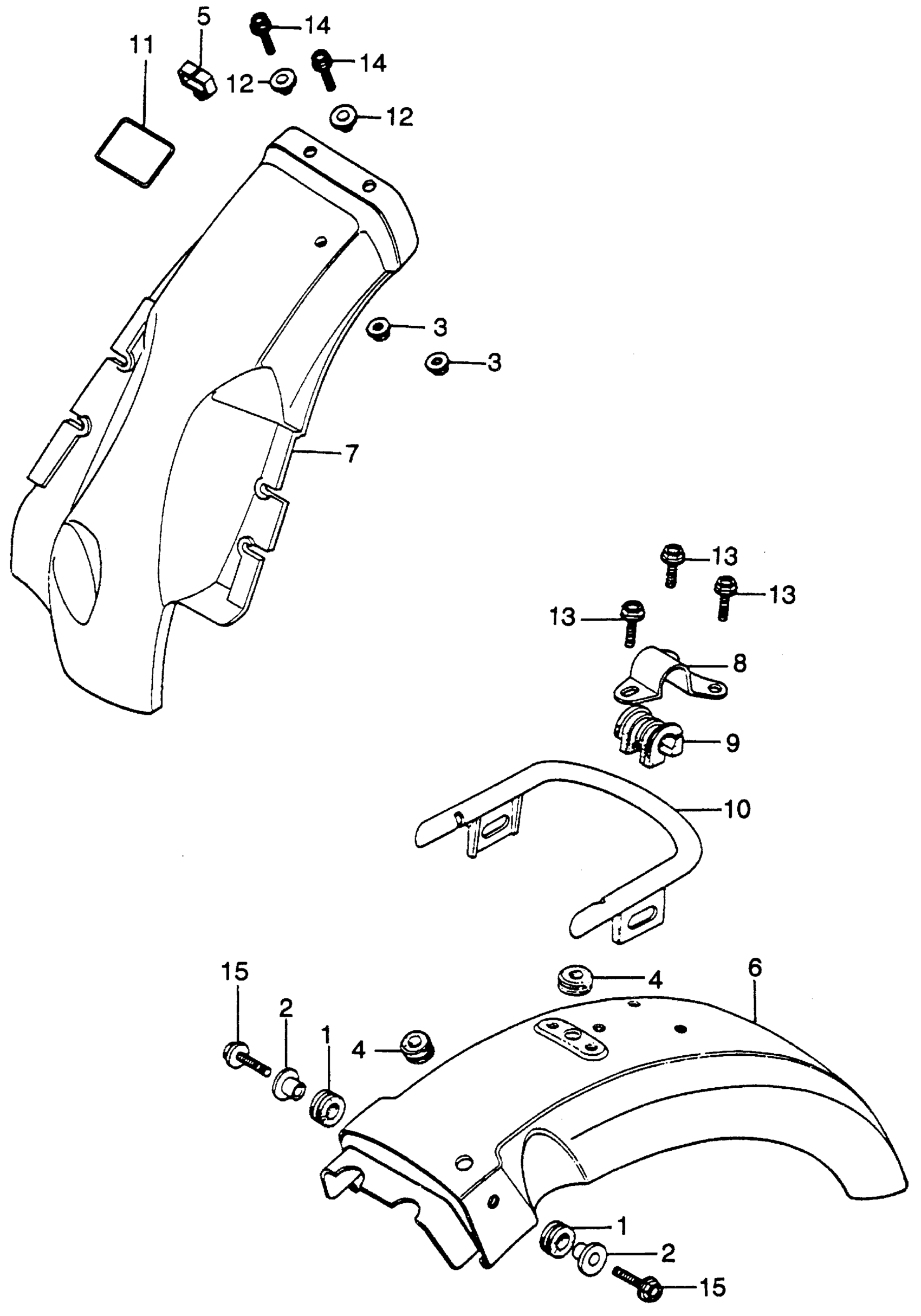

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 REAR FENDER Diagram

#

Description
Price

1

RUBBER, TANK CUSHION

17631-703-000

Unavailable

2

COLLAR, TANK DISTANCE

17641-703-010

Unavailable

3

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

3

NUT, FLANGE (6MM)

94050-06000

$1.49

4

GROMMET, WIRE HARNESS

32983-011-000

$3.31

5

GROMMET, CABLE

32985-300-000

$3.35

6

FENDER, RR. (NOT AVAILABLE) This part replaces 80100-369-000.

80100-387-000

Unavailable

7

FENDER B ASSY., RR. (NOT AVAILABLE)

80105-369-000

Unavailable

8

STAY, RR. FENDER SETTING (NOT AVAILABLE)

80111-369-000

Unavailable

9

RUBBER, RR. FENDER SETTING (NOT AVAILABLE)

80112-329-010

Unavailable

10

STAY, NUMBER BRACKET *NH1* (BLACK)

84710-369-000B

Unavailable

11

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-369-670

Unavailable

12

WASHER (6X20)

90512-300-000

$3.08

13

BOLT, FLANGE (6X14) This part replaces 95700-06014.

95701-06014-00

$1.49

13

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

13

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

14

BOLT, FLANGE (6X20) This part replaces 95700-06020.

95701-06020-00

$1.55

14

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

14

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

14

BOLT, FLANGE (6X20) This part replaces 95900-06020-00.

95701-06020-00

$1.55

15

BOLT, FLANGE (8X20) This part replaces 95700-08020.

95701-08020-00

$1.78

15

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

15

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

15

BOLT, FLANGE (8X20) This part replaces 95900-08020-00.

95701-08020-00

$1.78
