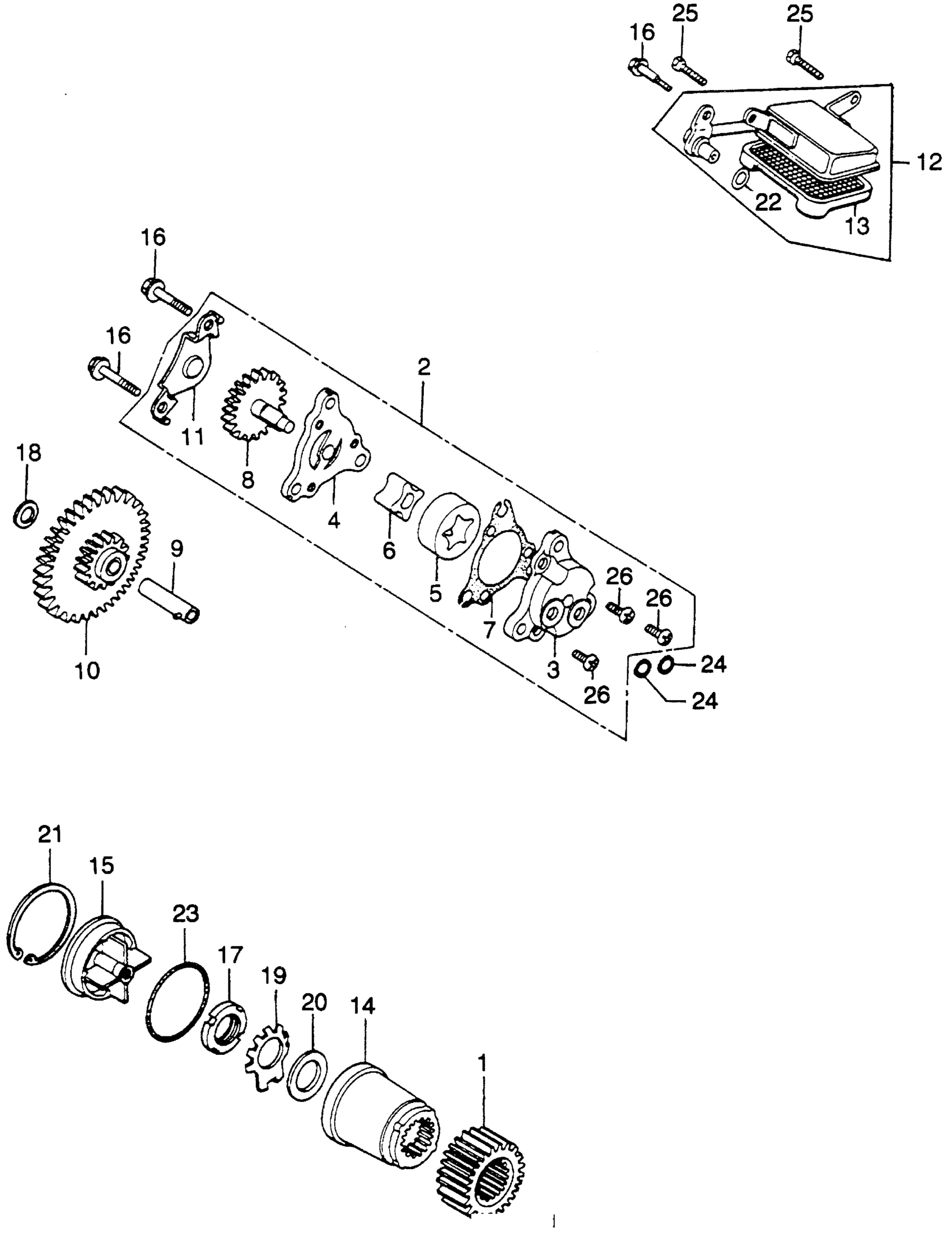

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 OIL FILTER + OIL PUMP Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (21T) (NOT AVAILABLE)

13611-369-000

Unavailable

2

PUMP ASSY., OIL (NOT AVAILABLE)

15100-369-000

Unavailable

3

BODY, OIL PUMP (NOT AVAILABLE)

15111-369-000

Unavailable

4

COVER, OIL PUMP (NOT AVAILABLE)

15121-369-000

Unavailable

5

ROTOR, OIL PUMP (OUTER)

15122-329-010

$20.59

6

ROTOR, OIL PUMP (INNER)

15123-329-010

$17.36

7

GASKET, OIL PUMP COVER (NOT AVAILABLE)

15129-369-000

Unavailable

8

GEAR, OIL PUMP DRIVE (26T)

15131-369-000

Unavailable

9

SHAFT, OIL PUMP IDLE (NOT AVAILABLE)

15160-369-000

Unavailable

10

GEAR, OIL PUMP IDLE

15180-369-000

Unavailable

11

PLATE, OIL PUMP SETTING (NOT AVAILABLE)

15197-369-000

Unavailable

12

SCREEN, OIL FILTER (NOT AVAILABLE)

15421-369-000

Unavailable

13

SCREEN, OIL FILTER (NOT AVAILABLE) This part replaces 15422-369-000.

15421-388-000

Unavailable

14

ROTOR, OIL FILTER (NOT AVAILABLE)

15441-369-000

Unavailable

15

CAP, OIL FILTER (NOT AVAILABLE)

15450-286-010

Unavailable

16

BOLT, SPECIAL (6X28)

90087-369-000

Unavailable

17

NUT, LOCK (16MM)

90231-KCS-651

$4.21

17

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

18

WASHER, THRUST (10MM) This part replaces 90412-329-000.

90412-KZL-840

$1.49

19

WASHER, SPRING (16MM)

90431-292-000

$2.92

20

WASHER (16MM) (NOT AVAILABLE)

90481-292-000

Unavailable

21

CIRCLIP (INNER) (45MM)

90604-292-000

Unavailable

22

O-RING (9.8X4.0) (NOT AVAILABLE)

91307-369-000

Unavailable

23

O-RING (41X2)

91309-286-000

$7.46

24

O-RING (7X1.7)

91312-107-000

$3.18

25

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

26

SCREW, PAN (5X8) This part replaces 90050-371-980.

93500-05008-0A

$1.49

26

SCREW, PAN (5X8) This part replaces 93500-05008.

93500-05008-0A

$1.49

26

SCREW, PAN (5X8)

93500-05008-0A

$1.49

26

SCREW, PAN (5X8) This part replaces 93500-05008-1A.

93500-05008-0A

$1.49

26

SCREW, PAN (5X8) This part replaces 93500-05008-10.

93500-05008-0A

$1.49

26

SCREW, PAN (5X8) This part replaces 93506-05008-0A.

93500-05008-0A

$1.49
