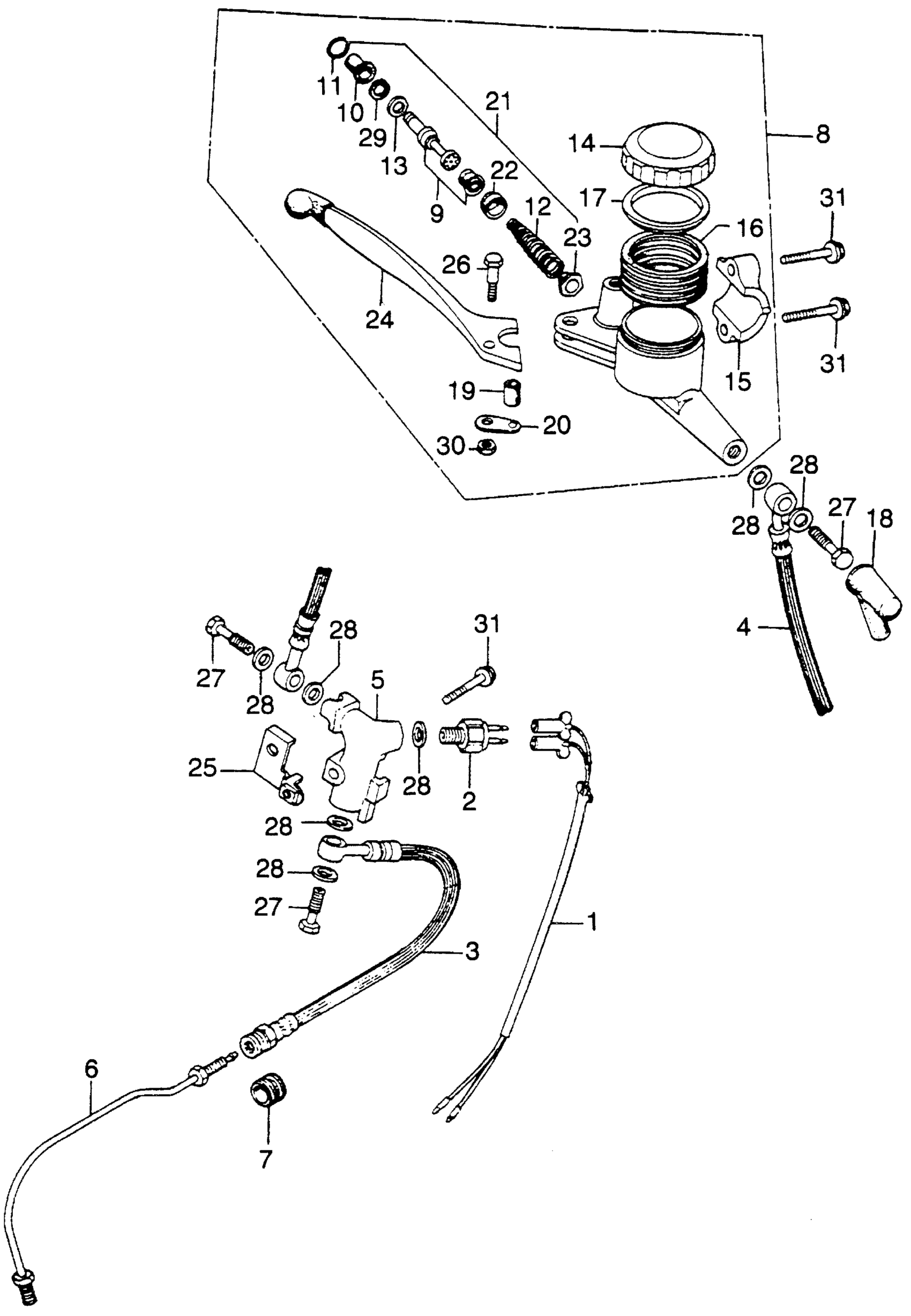

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 MASTER CYLINDER + BRAKE HOSE Diagram

#

Description
Price

1

SUB-WIRE, FR. STOP SWITCH (NOT AVAILABLE)

35345-319-000

Unavailable

2

SWITCH, STOP (NOT AVAILABLE)

35350-300-016

Unavailable

3

HOSE A, FR. BRAKE (NICHIRIN)

45125-300-003

Unavailable

3

HOSE A, FR. BRAKE (NICHIRIN) This part replaces 45125-300-020.

45125-300-003

Unavailable

4

HOSE B, FR. BRAKE (NICHIRIN)

45126-300-003

Unavailable

4

HOSE B, FR. BRAKE (NICHIRIN) (NOT AVAILABLE) This part replaces 45126-300-030.

45126-300-003

Unavailable

5

JOINT (THREE-WAY) (NOT AVAILABLE)

45127-323-000

Unavailable

6

PIPE, FR. BRAKE

45128-317-701

Unavailable

7

GROMMET, BRAKE HOSE

45146-300-000

$4.24

8

MASTER CYLINDER ASSY. (NOT AVAILABLE) | Use up to Frame SN 1069081 This part replaces 45500-369-670.

45500-369-671

Unavailable

8

MASTER CYLINDER ASSY. (NOT AVAILABLE)

45500-369-671

Unavailable

9

PISTON SET

45502-300-305

Unavailable

10

BOOT

45504-300-003

Unavailable

11

STOPPER, BOOT

45505-300-003

Unavailable

12

SPRING

45506-300-003

Unavailable

13

WASHER (10.5MM)

45512-300-003

Unavailable

14

CAP, OIL CUP

43513-MJ6-006

Unavailable

14

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

14

CAP, OIL CUP This part replaces 45513-341-770.

43513-MJ6-006

Unavailable

14

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

15

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

15

HOLDER, MASTER CYLINDER This part replaces 45517-300-003.

45517-MA5-671

$29.30

16

DIAPHRAGM

45520-300-000

$9.05

17

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

17

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

18

BOOT, MASTER CYLINDER

45522-300-010

$9.29

19

BUSH, R. HANDLEBAR CONTROL LEVER

45526-341-000

Unavailable

20

PLATE, CONTROL LEVER BUSH SETTING

45527-300-000

Unavailable

21

MASTER CYLINDER SET

45530-377-305

$62.67

22

CUP, FR. PRIMARY (NISSHIN)

46125-533-003

Unavailable

23

VALVE, CHECK (NISSHIN)

46140-533-003

Unavailable

26

BOLT, HANDLEBAR LEVER PIVOT

90114-300-000

$8.07

27

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

27

BOLT, OIL

90145-300-010

$9.68

29

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

30

NUT, HEX. (6MM)

94002-06000-0S

$1.49

31

BOLT, FLANGE (6X25) This part replaces 95700-06025.

95701-06025-00

$1.80

31

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

31

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

31

BOLT, FLANGE (6X25) This part replaces 95900-06025-00.

95701-06025-00

$1.80
